Section 1: Assembly
2/17/2005 Series VII 7332-7344 Field Cultivator, Floating Hitch 560-200M
23
Center Wing Stop and Outside Wing Stop Assembly
U-bolt the center wing stop (1) to the
second bar from the rear on the center frame as
shown in Figure 12. Use 5/8 x 4 x 4¼ u-bolts
(2) with lock washers and hex nuts. Center the
wing stop from side to side. Insert the ½ x 4½
transport lock quick pins (3) in the holders on
the wing stop.
On models 7341 and 7344, u-bolt the
wing lock mount (4) on the inside wing with ½
x 3 x 5 u-bolts (5). U-bolt the wing lock “T”
bracket (9) on the outside wing with the same
½ x 3 x 5 u-bolt (5). Refer to the shank layout
for your particular model for the exact location
of the wing lock mount and lock “T” bracket.
Use lock washers and hex nuts on these u-
bolts. Bolt the wing latch (6) to the wing lock
mount (4) with a ¾ x 4½ bolt (7). Slide a ¾
flat washer (8) between the latch and the
mount on each side to take out the slop. Use a
¾” two-way lock nut but do not torque down.
The latch must move freely.

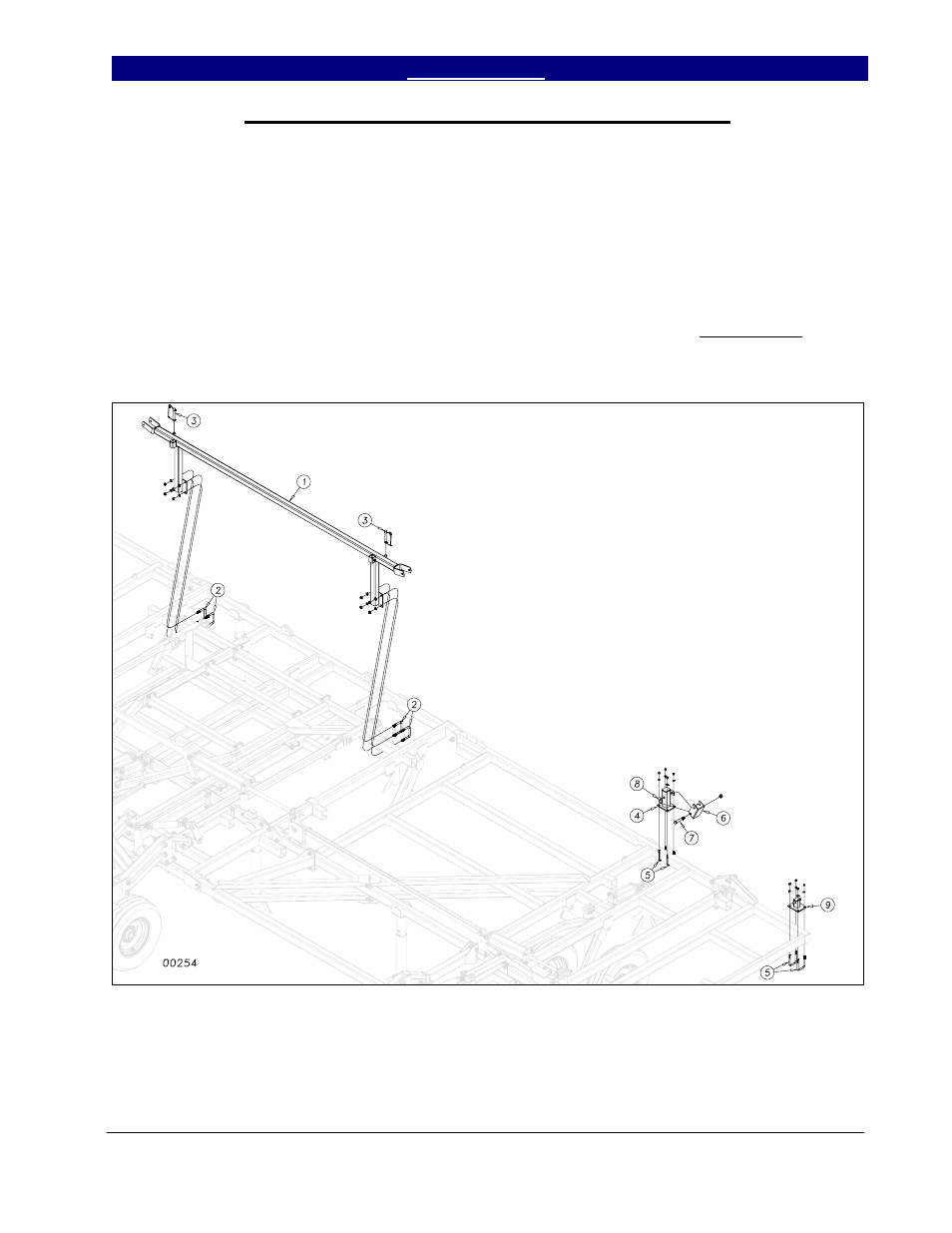

Figure 12
