Inside wing and wheel arm assembly – Great Plains 7344 Series VII Field Cultivator-Floating Hitch Operator Manual User Manual
Page 17
2/17/2005
Series VII 7332-7344 Field Cultivator, Floating Hitch 560-200M
15
Inside Wing and Wheel Arm Assembly
Bolt the inside wing frames (1) Figure
2, to the center frame with two 1 x 6 hex bolts
(2) using nylon lock nuts (3). Draw the nuts
down tight but do not torque.
Once the wings are attached, insert the
wheel arm bracket (4) into the wing frame
hangers and secure it just as you did on the
center with 1¼ x 6 pins (5). Secure the pins
with 3/8 x 2¼ Gr.8 hex bolts (6) & top lock
nuts.
Install the wing walking beam assembly
(7) as shown in Figure 2 with the long 18”
spindle toward the front. Use anti-seize
material on the spindles. Secure the pivot
spindle in the sleeve with the 5/16 x 3 clevis
pin (8) and 1/8 x 1 cotter.
Bolt the 9.5L x 15, 8-ply tires (9) in
place with the ½ x 1¼ lug bolts (10).

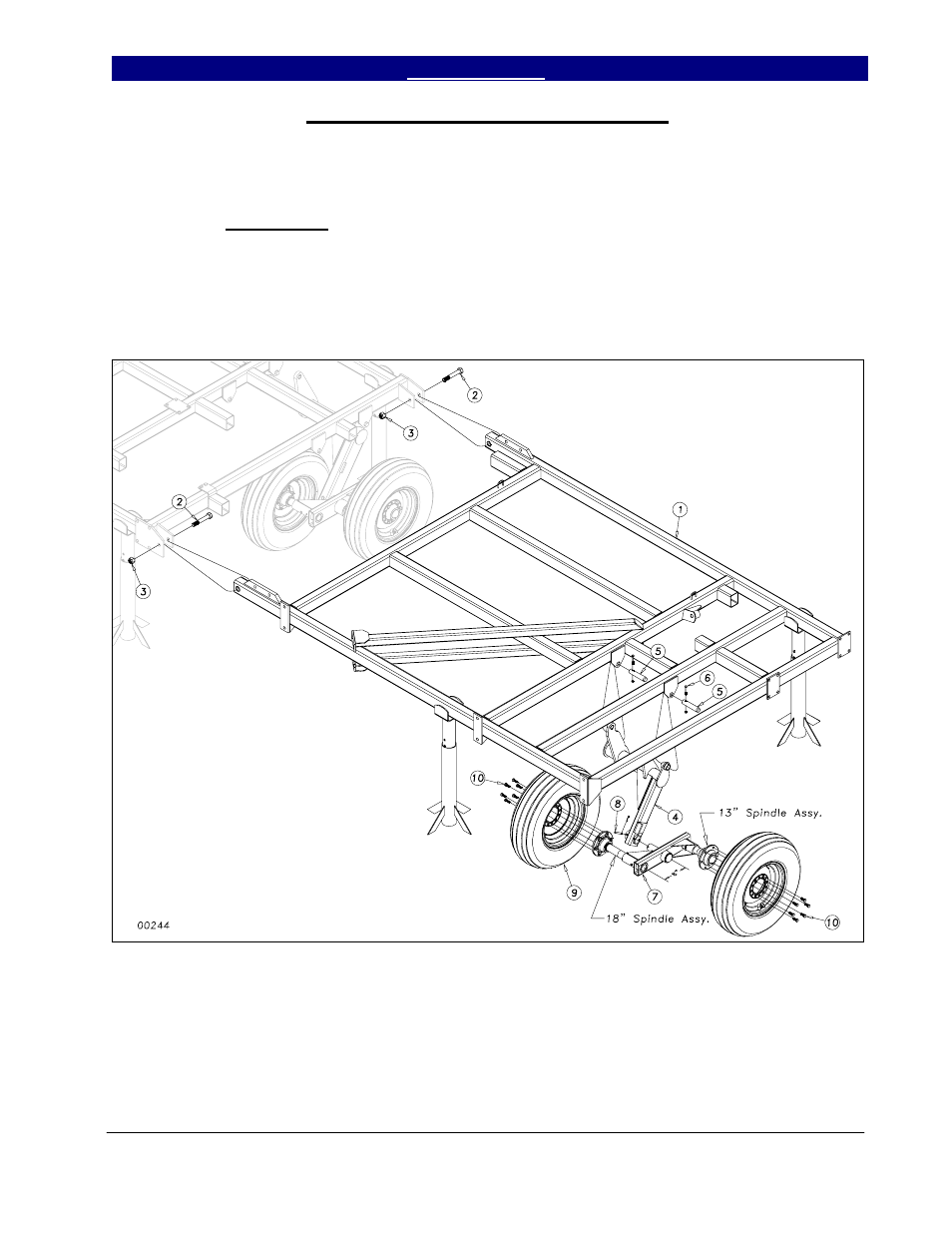

Figure 2
