5 Installation Instructions
Refer to Figure 10
1. Using predrilled holes, remove bolt (1) from
feedercup tray and replace with eye hook (2),
flat washers (3), lock washer (4) and hex nut
(5) supplied in kit. Assemble the eyebolts in
the same manner for all boxes. There are two
eyebolts per feedercup tray, one at each end
of tray. Note: If there are no holes, drill 1/4”
hole (6) on edge of outlets.
Refer to Figure 11
2. Line meter covers with foam seal all the way
around the edges.
3. Place meter covers over tube outlets not be-
ing used. Place Seedtube corks in tubes at
each end of the box. See page 7 for place-
ment. Make sure there is a good seal to rear
box panel.
Refer to Figure 12
4. Use tarp strap to hold meter covers in place
by fastening one end to the eye hook pulling it
over the meter cover and hooking it to the box
divider
.NOTE: Refer to page 5 for illustration showing
placement of seedtube corks and meter covers.
Shut meters off that are not being used.
Assembly Instructions for 118-855A Baffle Package
19253

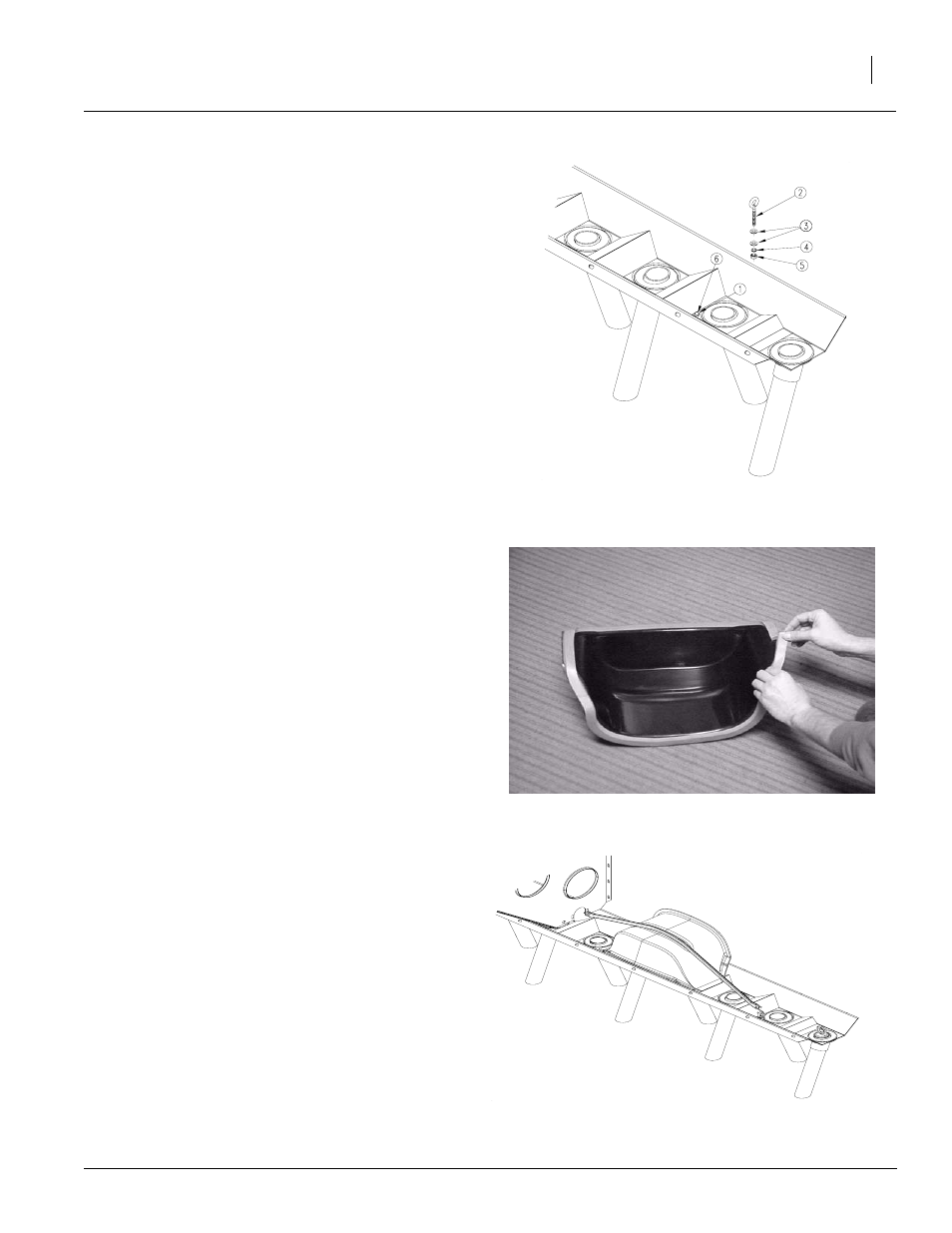

Figure 10
Feedercup Tray
Figure 11
Foam Seal
Figure 12
Eye Hook to Box Divider
19252
19251
