Used with:
Installation Instructions
118-811M
No-Till Precision Seeding System
Baffle Package Option
• 15P
• 20P
• 30P
• 40P
General Information
Assembly Instructions for 118-825A Baffle Package
When you see this symbol, the subsequent instructions and
warnings are serious - follow without exception. Your life and
the lives of others depend on it!
!!
These instructions explain how to install the Baffle Pack-
age Option. The baffle package stops the flow of grain to
a set number of seed tubes by covering those tubes.
These instructions apply to:
118-825A
15P Twin Row
118-826A
20P Twin Row
118-827A
30P Twin Row
118-855A
40P Twin Row
Manual Update
Refer to the 3-Point Precision Seeding System opera-
tor’s manual for detailed information on safely operating,
adjusting, troubleshooting and maintaining the Baffle
Options Package. Refer to the parts manual for part
identification.
118-732M
Operator’s Manual
118-732P
Parts Manual
118-740M
Operator’s Manual

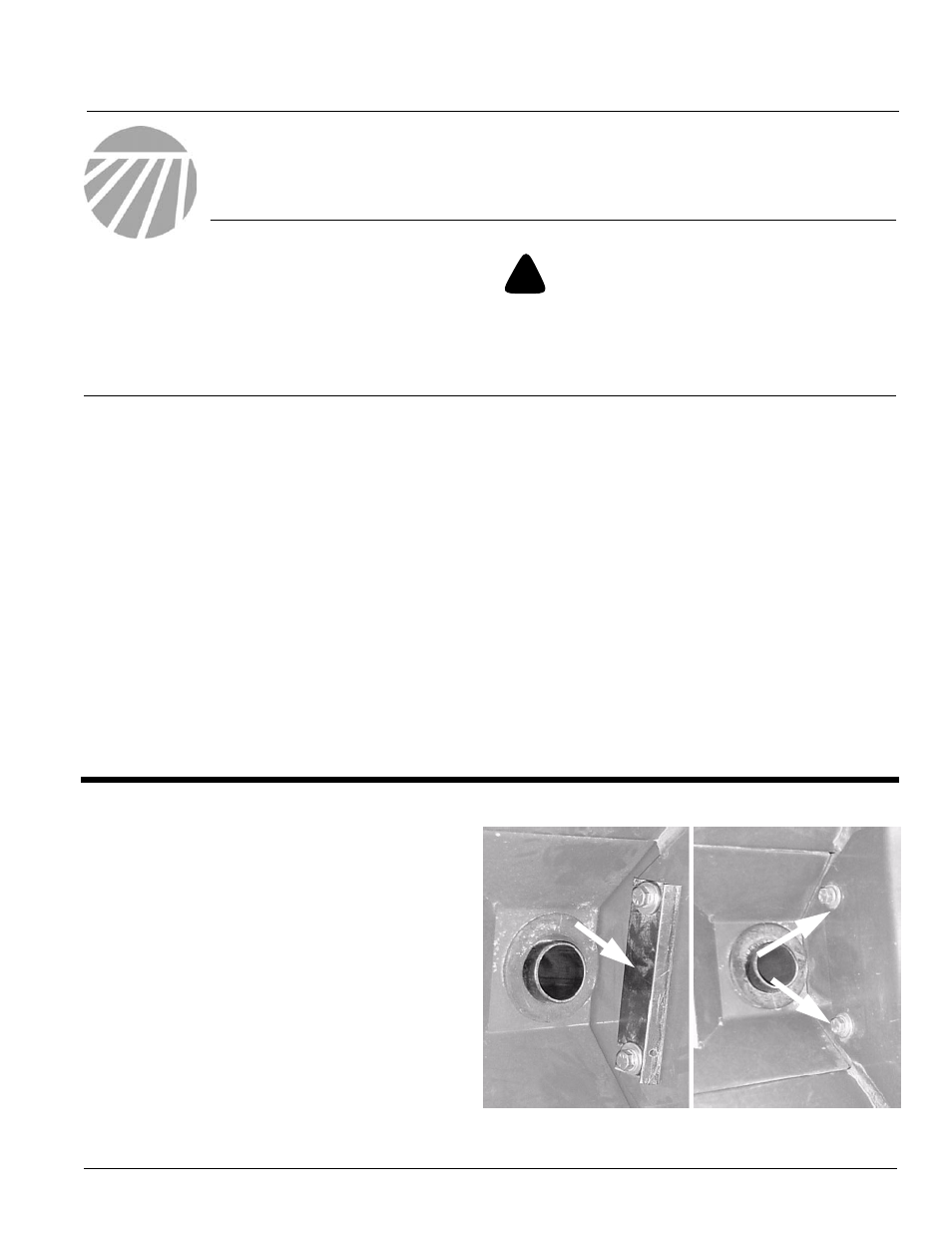

Refer to Figure 1
1.
Loosen fasteners on left inside of left box (1) as
shown in figure 1. Place outer end box clip (2) over
bolts and retighten fasteners. Loosen fasteners on
right inside of left box and place inner box end clip
over bolts and retighten. Be sure clips are pushed
down on bolts. Assemble the clips in the same man-
ner for all boxes.
1/9/2003
118 740P
Parts Manual
196-248M
Operator’s Manual
196-248P
Parts Manual
196-286M
Operator’s Manual
196-286P
Parts Manual
Before You Start
Pages 8 and 9 are a detailed listing of parts included in
the Baffle Package Option. Use this list to inventory
parts received.
Tools Required
• Basic hand tools
Definitions
Right hand and left hand as used in this manual are de-
termined by facing the direction the drill will travel while
in use.
19249
End Box
Clip (2)
Fasteners
(1)
Figure 1
Box Ends
