Check/Change Hitch Configuration 2014+
These instructions apply to LC40 models manufactured
in 2014 or later. For 2013- see page 13.
Choose a hitch option compatible with the tractor 3-point.
The LC40 has three ASABE S217 / ISO 730-1 hitch
configurations:
Category 3N (narrow, 80 to 225 hp / 60 to 168 kW)
Category 3W (wide, 80 to 225 hp / 60 to 168 kW)
Category 4 (N or W, 180 to 400 hp / 135 to 300 kW)
Changing between categories requires exchanging pins
and bushings at the implement hitch.
2014+ Top Link
Refer to Figure 4
For all hitch categories, this pin:
805-291C PIN CLVS 1.75X4.38 USBL
is left in place in the top front center holes.
For Category 4, move (as needed) this pin:
805-119C PIN HTCH 1.25X4.50 USBL
to the top rear center holes.
For Category 3, move (as needed) this pin:
805-119C PIN HTCH 1.25X4.50 USBL
to the front mid center holes.
2014+ Lower Links
Refer to Figure 5
To change the lower links, remove all pins, bushings and
spacers at the bottom front 2-point locations.
For Category 3N, relocate:
591-031H CAT 3 WIDE BUSHING WELDMENT
to the inside face of the inside plates of the bottom front
2-point holes. Relocate
591-057H CAT 3 HITCH PIN SUPPORT SPACER
to the inside face of the outside plates of the bottom front
2-point holes. Secure each
with 2 bolts. Relocate
805-518C PIN HTCH 1.44X8.88 USBL
to the bottom front 2-point holes. Store the removed
parts in the lower rear holes.
For Category 3W, relocate:
591-031H CAT 3 WIDE BUSHING WELDMENT
to the outside face of the outside plates of the bottom
front 2-point holes. Relocate
591-057H CAT 3 HITCH PIN SUPPORT SPACER
to the outside face of the inside plates of the bottom front
2-point holes. Secure each
with 2 bolts. Relocate
805-518C PIN HTCH 1.44X8.88 USBL
to the bottom front 2-point holes. Store any removed
Category 4 parts in the lower rear holes.
For Category 4, relocate the following parts from the
rear storage holes to the bottom front 2-point holes:
591-032H PIN HITCH 2 X 12 7/8 PLT
591-058H CAT 4N LOWER HITCH PIN SPACER
Store the removed Cat 3 parts in the lower rear holes.
41

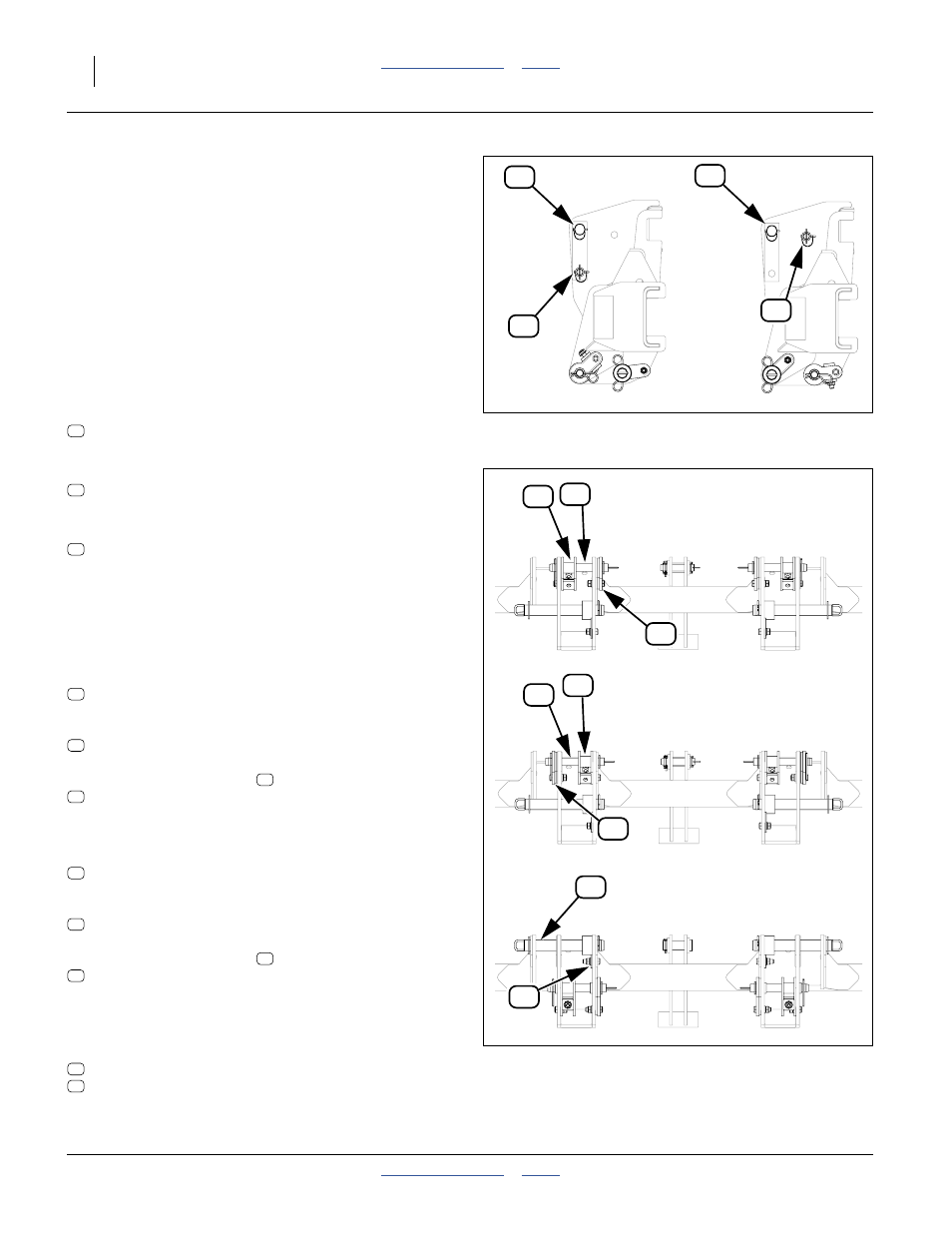

Figure 4 Side View
2014+ Category 3 & 4 Top Link
591-007A
37
37
41
Category 3 Category 4
41
Figure 5 Bottom View
2014+ Category 3 & 4 Lower Links
591-007A
Category 3N
14
16 42
Category 4
15
17
Category 3W
14
16
42
37
37
14
16
16
42
14
16
16
42
15
17
