Assembly and Setup
Tractor / PTO Shaft Hook-Up
!
DANGER!
Rotating driveline contact can cause death. KEEP AWAY! Do
not operate without guards attached and driveline securely at-
tached at both ends.

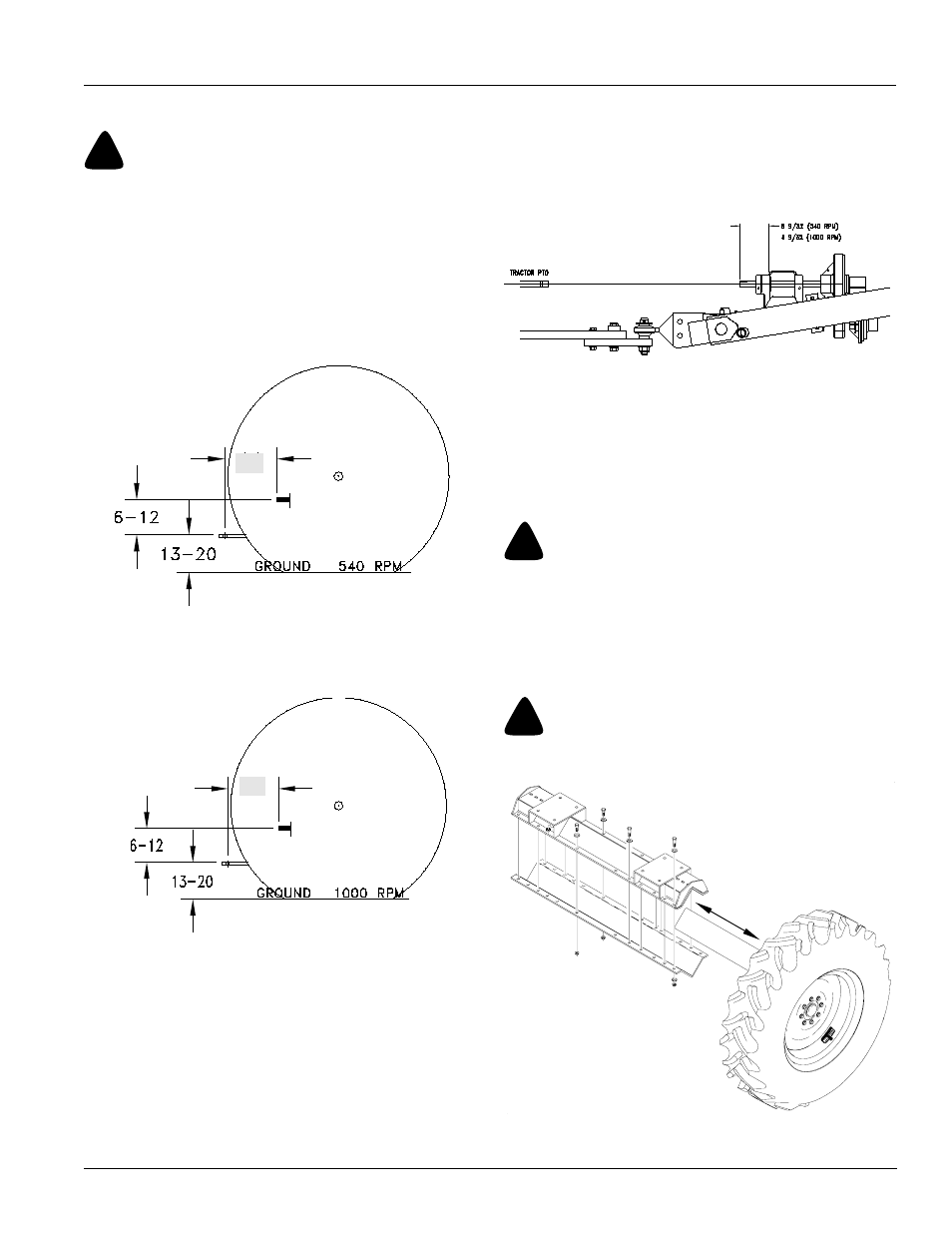

Refer to Figures 4 and 5
1. The tractor drawbar should be adjusted to ASAE stan-
dard or as shown.
Adjust implement driveline to a position which is level
with the tractor PTO.
2. Position PTO shaft on tractor. Be sure shaft is coupled
on tractor.
Refer to Figure 6
3. Adjust the vertical position of the pump driveshaft on
the sprayer so that it is level, to slightly higher than lev-
el with the PTO shaft on the tractor. This reduces driv-
eline vibration when turning a corner. Adjust the
vertical position by moving the four bolts supporting
the driveshaft bracket.
Figure 4
Tractor Drawbar Adjustment (540 RPM only)
15764
14
Figure 5
Tractor Drawbar Adjustment (1000 RPM only)
15765
16
NOTE: If, after adjusting the vertical position of the pump
driveshaft, the driveshaft is still a lot higher than the PTO
driveshaft on the tractor; adjust the hitch up one position
and readjust the pump driveshaft. Refer to Tractor/Sprayer
Hook-Up Instructions in this section starting on page 11 to
adjust the hitch.
Axle Adjustment
When using the 50 and 60 foot Cross-Fold Booms, leave
the axle in the rear most position.
!
CAUTION!
Axle position must be located correctly to avoid excessive
tongue weight or negative tongue weight which could cause me-
chanical failure resulting in personal injury.
Refer to Figure 7
The wheel spacing of the axle can also be adjusted for dif-
fering row spacings.
!
CAUTION!
Do not adjust the wheel spacing wider than 120". To do so may
cause a falling axle hazard while the sprayer is in service.
Figure 6
Hitch Height Adjustment
15837
Figure 7
Sprayer Axle Assembly
13855
