Quick Setup Guide for IntelliAg Model NTA

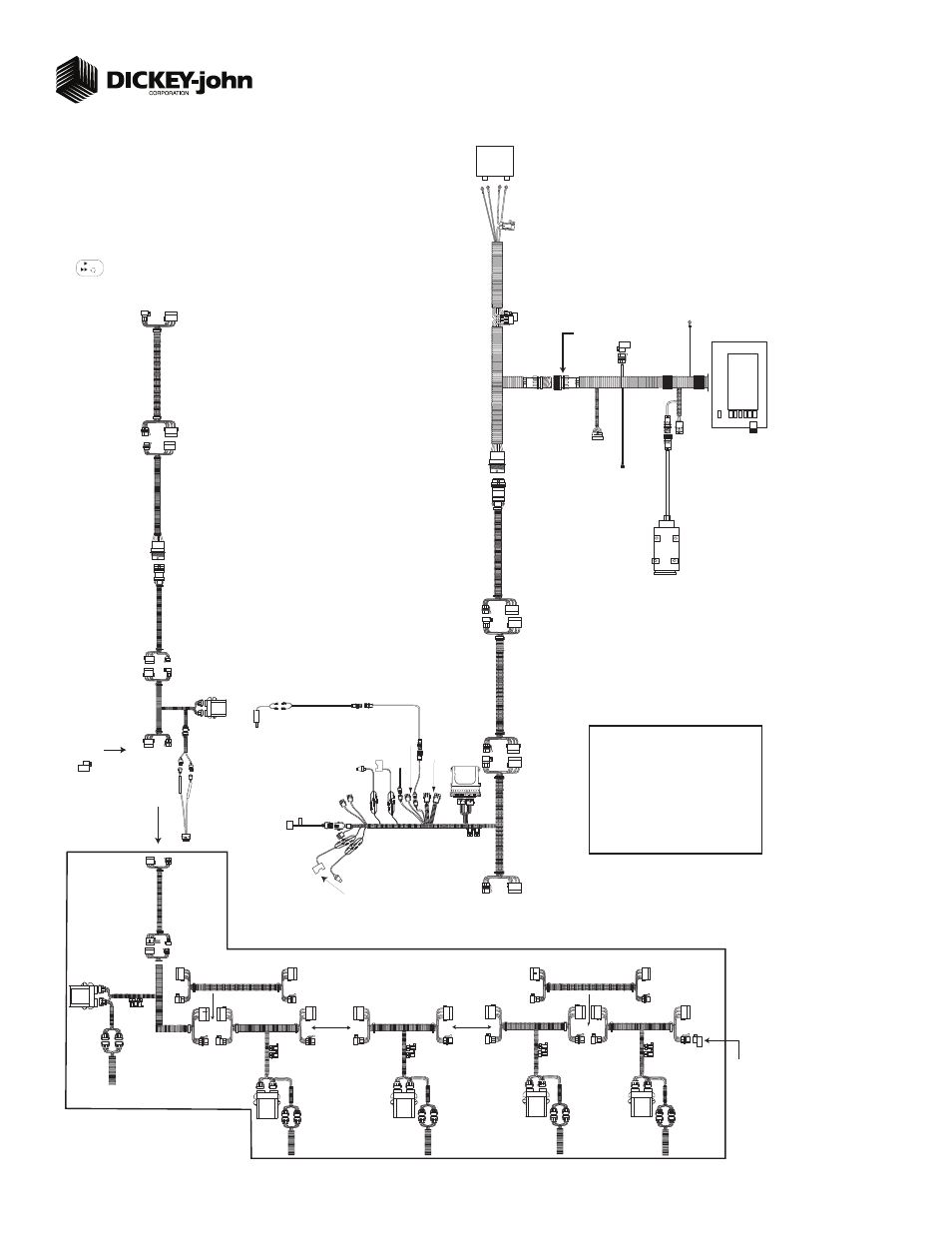

System Component Installation
Locate and install system components as shown in the diagram. Note how the modules are
identifi ed and which modules are located on which sections in this system.
Connect WSMB module harnesses together with included extensions. Modules connect to
the WSMT harness connection. Plug all unused connectors with included dust plugs.
Secure any excess wires with tie wraps.
See Operator’s Manual for additional installation information.
Power on monitor and program with correct constants as described on this Quick Start
Guide.
Note: The pre-programmed constants in the monitor may cause an error code on the initial
power on of a new system. This is normal and can be cleared by pressing and holding
ESC key for 2 seconds.
1.
2.
3.
4.
5.
5
Connect Cab Harness
to Implement Can
Harness
Connect harnesses and accessory devices as
shown. Verify that outputs have
properly connected feedback sensor.
Radar Speed Sensor
(Radar connected to either
tractor harness or WSMT
as shown below)
Virtual
Terminal
Ignition
Connect to switched
+12VDC
NOTE: This wire
must be connected to
switched +12VDC
+ -
Tractor Cab Harness
467980455
Battery
Tractor ECU
467980451A
Harness only
Harness
467980452
(A2 Terminal)
or Harness
467980451A
(A1 Terminal) Chassis
Ground CAN
Terminator
467980126
Implement CAN
Breakaway Harness
467980131
Multiple Lengths
5’ Extension
467980142
Hopper Level
Sensor Front
Zeromax
Labeled Front
and Rear
Fan
RPM
WSMT2
Module
ACCGP
Pressure Sensor
Front
Clutch
Hopper Level Sensor
Rear
Pressure Sensor
Rear
Ground
Speed
Application Rate
Sensor Front
Fan
Solenoid
Application Rate
Sensor Rear
WSMT II
Aircart Main
Harness
467980856
40 row (rows 1-8 connected)
(rows 9-12 not connected-
plug w/464211090)
55 row (rows 1-11 connected)
(row 12 not connected-
plug w/464211090)
*
NTA 35’
467980475 467980474
20’ Extension
467980140
Rear Hitch
467980360
10’ Extension
467980141
467980476
Implement CAN
Breakaway Harness
467980134
467983502
Output
Module
WSMB Module Harness
467981201 Dj SE style
10’ Extension
467980141
CAN Terminator
467980126
WSMB WSMB WSMB WSMB
467981201 467981201 467981201 467981201
* * *
*
*
Blockage option
10’ Extension
467980141
Connects to WSMT II
Aircart Main Harness
467980856
CAN Terminator
467980126
Connect CAN
Terminator for
non-Blockage
application or 20’
Extension for
Blockage option
**
**
Connect CAN
Terminator with
Blockage option
35’
