11
Section 1 Assembly
8/9/06 3S-3000 Three-Section Folding Drill 195-144M
Great Plains Mfg., Inc.

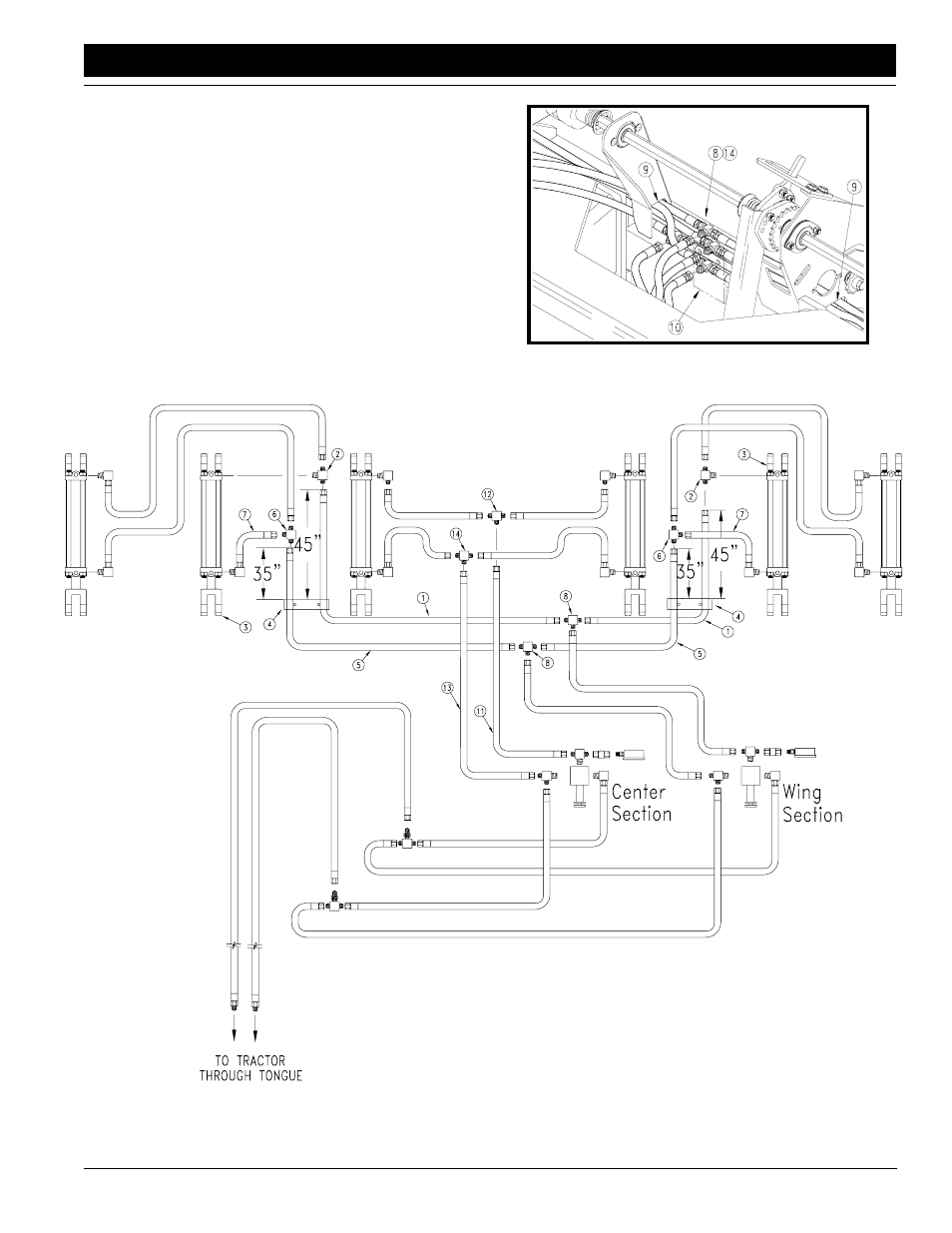

Hydraulic Hose Installation
Figure 1-8
15656
15666
mainframe and reroute them through the hose guide cut-
outs (#9) and through the plastic tie downs on the center
box frame. Place all tees (#8) which rest on the center box
frame on the right side of the formed bracket (#10) welded
to the center of the frame. This keeps them out of the
clutch linkage which is left of center. Connect the 3/8" hy-
draulic hose (#11) coming from the back side of the center
pressure control valve to the tee (#12) which branches to
the base ends of the center two opener lift cylinders. Con-
nect the 3/8" hydraulic hose (#13) coming from the bottom
side of the center pressure control valve to the tee (#14)
which branches to the rod ends of the center two opener
lift cylinders. Tighten the plastic tie down straps to keep
the hoses out of the drives.
