Chapter 3: Installation/Removal
3-2 7F06-02 FDDI SmartSwitch Interface Module User’s Guide
3.2 INSTALLING FPIMS
The 7F06-02 module is shipped without FPIMs. To install an FPIM,
follow the procedure below:
1. Remove the module if it is installed in the 7C03 MMAC SmartSwitch
chassis by reversing the procedure in Section 3.3.
2. Remove the blank front cover over the FPIM slot.
3. Install the FPIM as shown in Figure 3-1. Ensure that the rear connector
is seated firmly before tightening the two mounting screws.

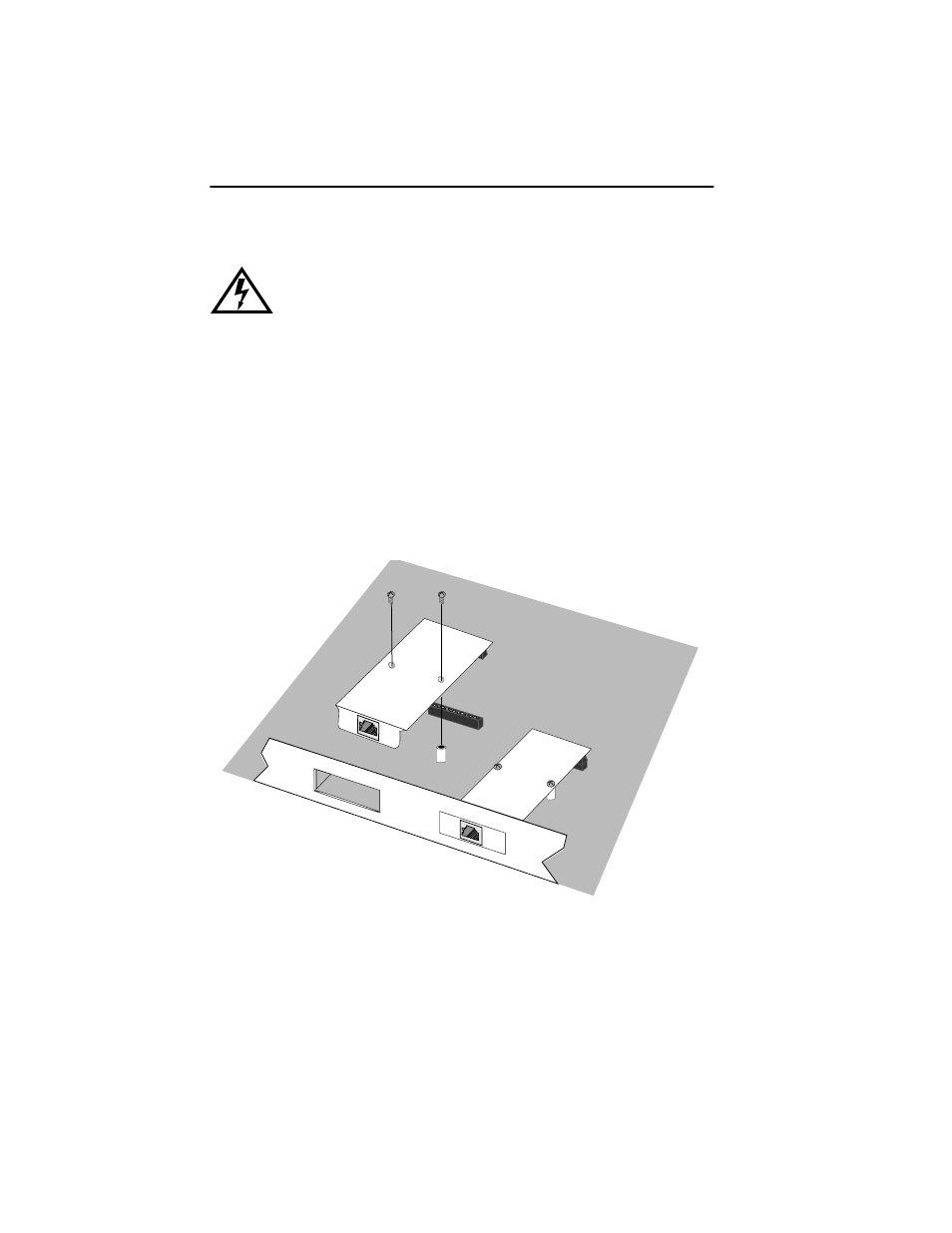

Figure 3-1 Installing an FPIM
Before installing the 7F06-02 module, attach the antistatic
wrist strap included with the SmartSwitch or SmartSwitch
module by following the instructions printed on the package.
