Section 3 Adjustments
9/26/13 2S-2600 and 2S-2600F Two-Section Folding Drill 195-200M-A
Great Plains Mfg., Inc.
Box Alignment
To check and adjust box alignment:
1. Place a block ahead of each wing gauge wheel. Pull
drill forward against blocks to rock frames back. Pull
forward until stop bolts are firmly against toolbars. Re-
fer to Figure 3-27 for stop-bolt location.
2. Check for proper alignment by running a string line
across back of drill toward outer ends of wings. For
proper alignment, outside ends of boxes should be
about 1 inch ahead of inside ends. See Figure 3-28.
3. To adjust box alignment, shorten or lengthen stop
bolts to change the contact point with the toolbars. Ad-
just stop bolts in or out until outside ends of the boxes
are 1 inch ahead of inside ends.

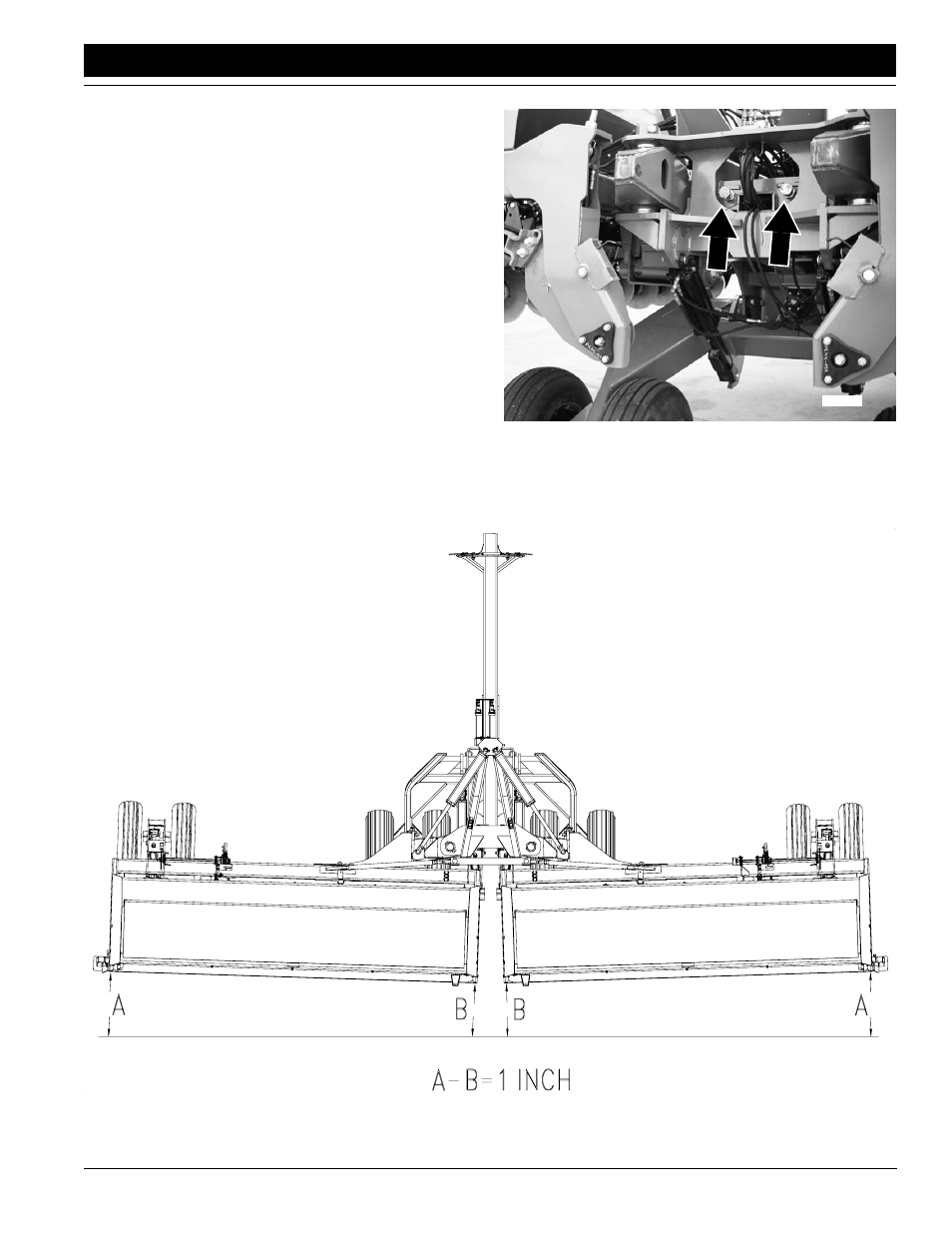

Figure 3-27
Stop Bolt Location
Figure 3-28
Wing Box Alignment
17300
17357
