10
Section 1 Preparation and Setup
2S-2600 and 2S-2600F Two-Section Folding Drill 195-200M-A 9/26/13
Great Plains Mfg., Inc.
4. Securely attach safety chain to an anchor on tractor
capable of pulling drill.

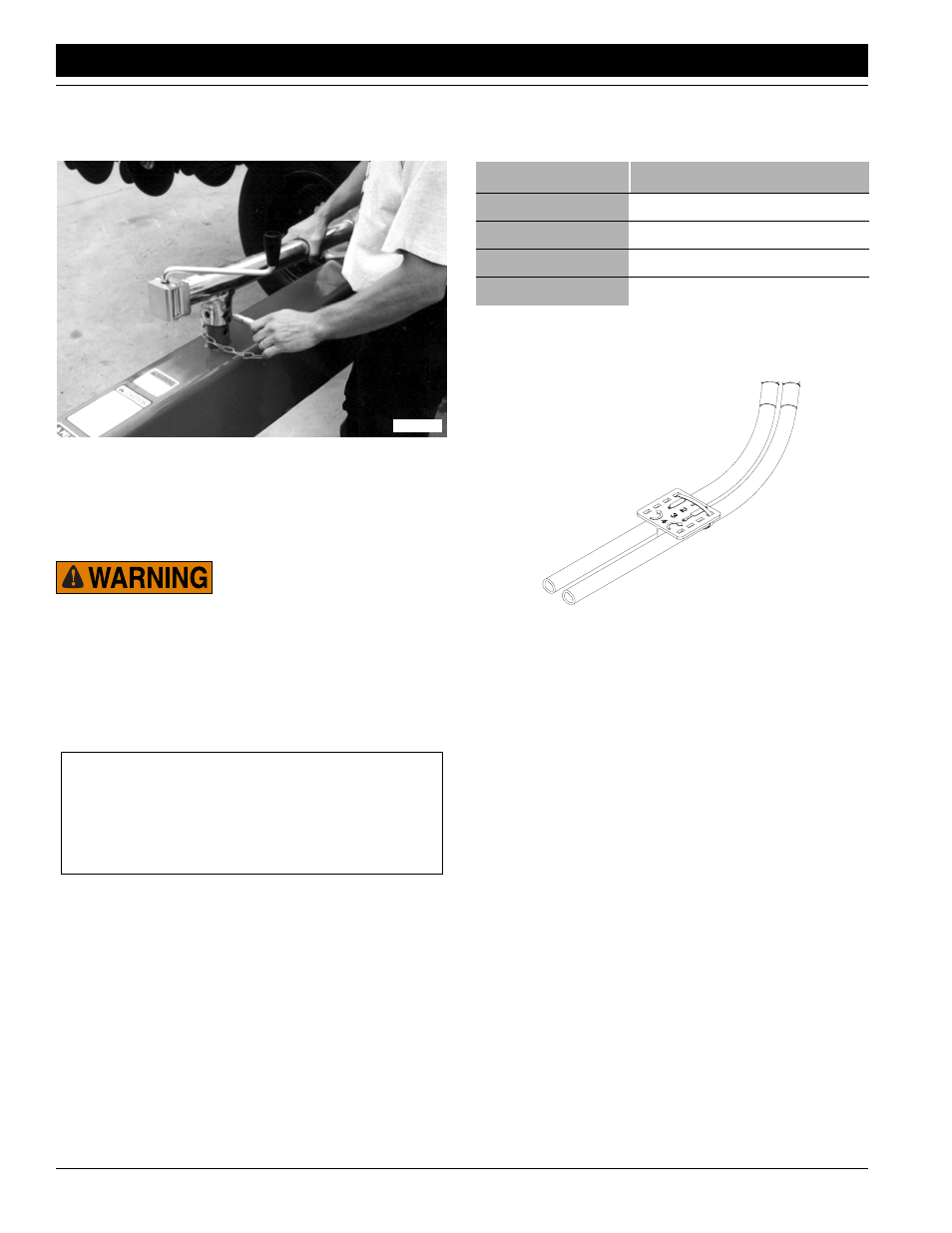

5. Store jack on top of tongue as shown in Figure 1-3.
Figure 1-3
Jack Storage Location
6. Plug drill electrical lead in tractor seven-pin connector.
If your tractor is not equipped with a seven-pin con-
nector, contact your dealer for installation.
Hydraulic Hose Hookup
Escaping fluid under pressure can penetrate the skin causing
serious injury. Avoid the hazard by relieving pressure before
disconnecting hydraulic lines. Use a piece of paper or card-
board, NOT BODY PARTS, to check for suspected leaks. Wear
protective gloves and safety glasses or goggles when working
with hydraulic systems. If an accident occurs, see a doctor im-
mediately. Any fluid injected into the skin must be surgically re-
moved within a few hours or gangrene may result.
Great Plains hydraulic hoses are color coded to help you
hook up hoses to your tractor outlets. Hoses are color cod-
ed as follows.
To distinguish hoses on the same hydraulic circuit, refer to
plastic hose holders. See Figure 1-4. Hoses under extend-
ed-cylinder symbol feed cylinder base ends. Hoses under
retracted-cylinder symbol feed cylinder rod ends.
Figure 1-4
Hydraulic Hose Label
1. Connect opener-lift hoses to circuit designated for hy-
draulic-motor control.
2. Connect transport-lift hoses to tractor remote valve.
3. Connect fold hoses to tractor remote valve.
NOTE: If your tractor has only two remote valves, you must
install a double-selector valve to combine the transport-lift
and opener-lift circuits. Refer to Two Outlet Hydraulic Kit,
“Options,” page 57.
15563
IMPORTANT: To run drill on tractors with open-center
hydraulics or on tractors with fixed-displacement hy-
draulic pumps, you must install a Great Plains kit, part
number 194-143A. If you are not familiar with your
tractor hydraulics, consult your tractor dealer.
Color Tie Hydraulic Function
Red Opener Lift
Blue Transport Lift
White Fold
Orange Marker
17641
