Refer to Figure 3
7.
Retract jack foot. Re-orient jack to storage position.
8. After hitching tractor to turbo max, store jack on stor-
age stob
on Turbo Max tongue.
Load Sway Hazard:
9. Lock drawbar swing to center position to minimize any
side-to-side sway to assure proper tracking in the field,
and safe road travel. See
“Transport” on page 20, for
safe transporting.
Electrical Hookup
Refer to Figure 4
Your Turbo Max is equipped with North American Lights.
Plug the lighting connector into the tractor outlet.
Test the lights and signaling prior to highway movement.
Hydraulic Hose Hookup
Great Plains hydraulic hoses are color coded to help you
hookup hoses to your tractor outlets. Hoses that go to the
same remote valve are marked with the same color.
Color Hydraulic Function
Black Lift (2 hoses)
Red Gang Adjustment (2 hoses)
4

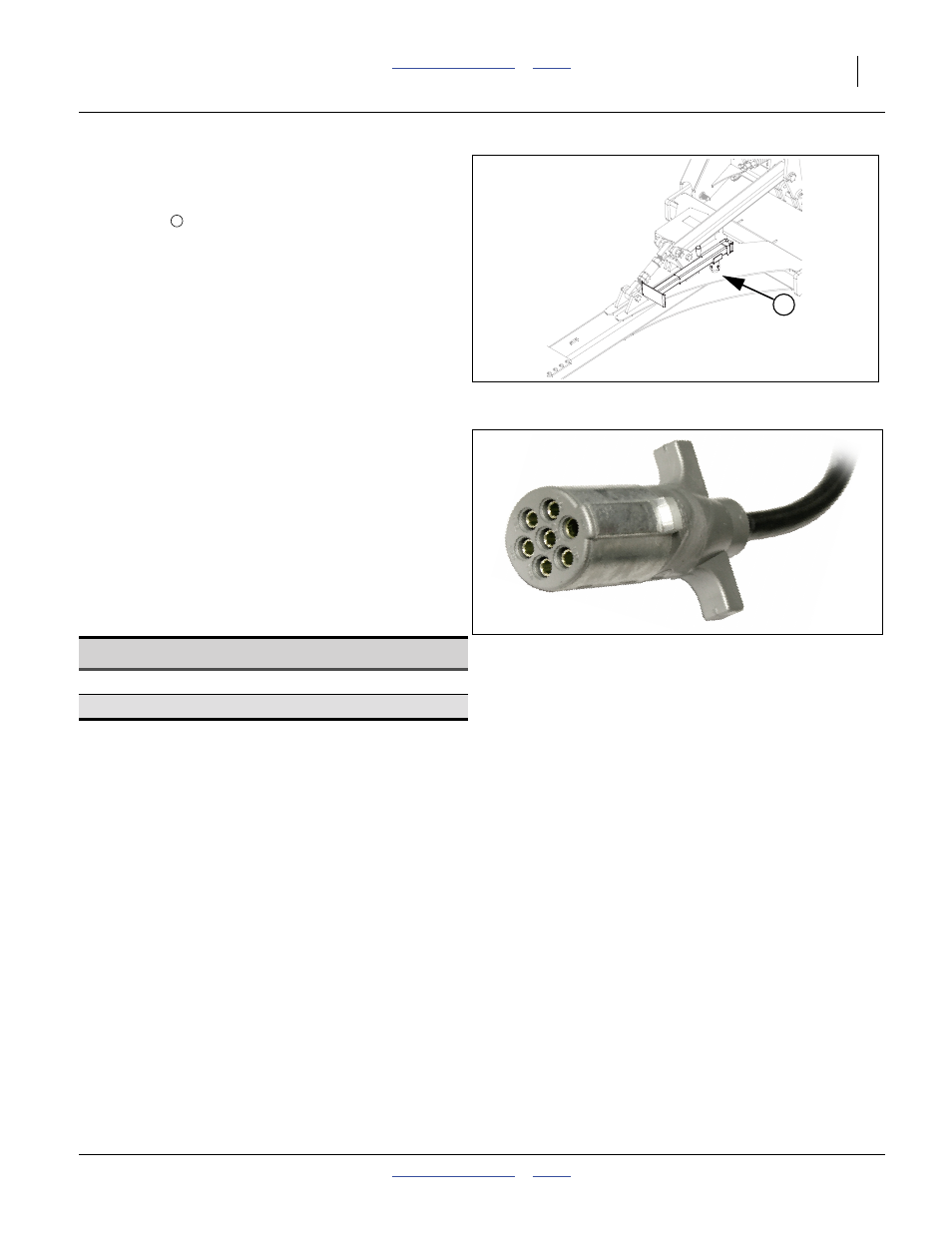

Figure 3
Jack in Storage
42262
4
Figure 4
North American Connector
36051
