14 2536-2551SC Great Plains Manufacturing, Inc.
540-179M 10/09/2013
Hydraulic Hose Hookup
Great Plains hydraulic hoses are color coded to help you
hookup hoses to your tractor outlets. Hoses that go to the
same remote valve are marked with the same color.
Refer to Figure 6
Hose Handles
To distinguish hoses on the same hydraulic circuit, refer to,
“Hydraulic Hose Hookup” on page 14. The hose under an
extended symbol feeds a cylinder base end. The hose
under a retracted-cylinder symbol feeds a cylinder rod end.
Clean all hydraulic couplings and hook hoses to tractor.
Electrical Hookup
Refer to Figure 7
Your Seedbed Conditioner is equipped with North American
Lights.
Plug the lighting connector into the tractor outlet.
Test the lights and signalling prior to highway movement.
Color Hydraulic Function
Yellow Lift & Fold (2 hoses)
High Pressure Fluid Hazard:
Relieve pressure before disconnecting hydraulic lines. Use
paper or cardboard, NOT BODY PARTS, to check for leaks.
Wear protective gloves and safety glasses or goggles when
working with hydraulic systems. Escaping fluid under pressure
can have sufficient pressure to penetrate the skin causing seri-
ous injury. If an accident occurs, seek immediate medical
assistance from a physician familiar with this type of injury.
Only trained personnel should work on system hydraulics.

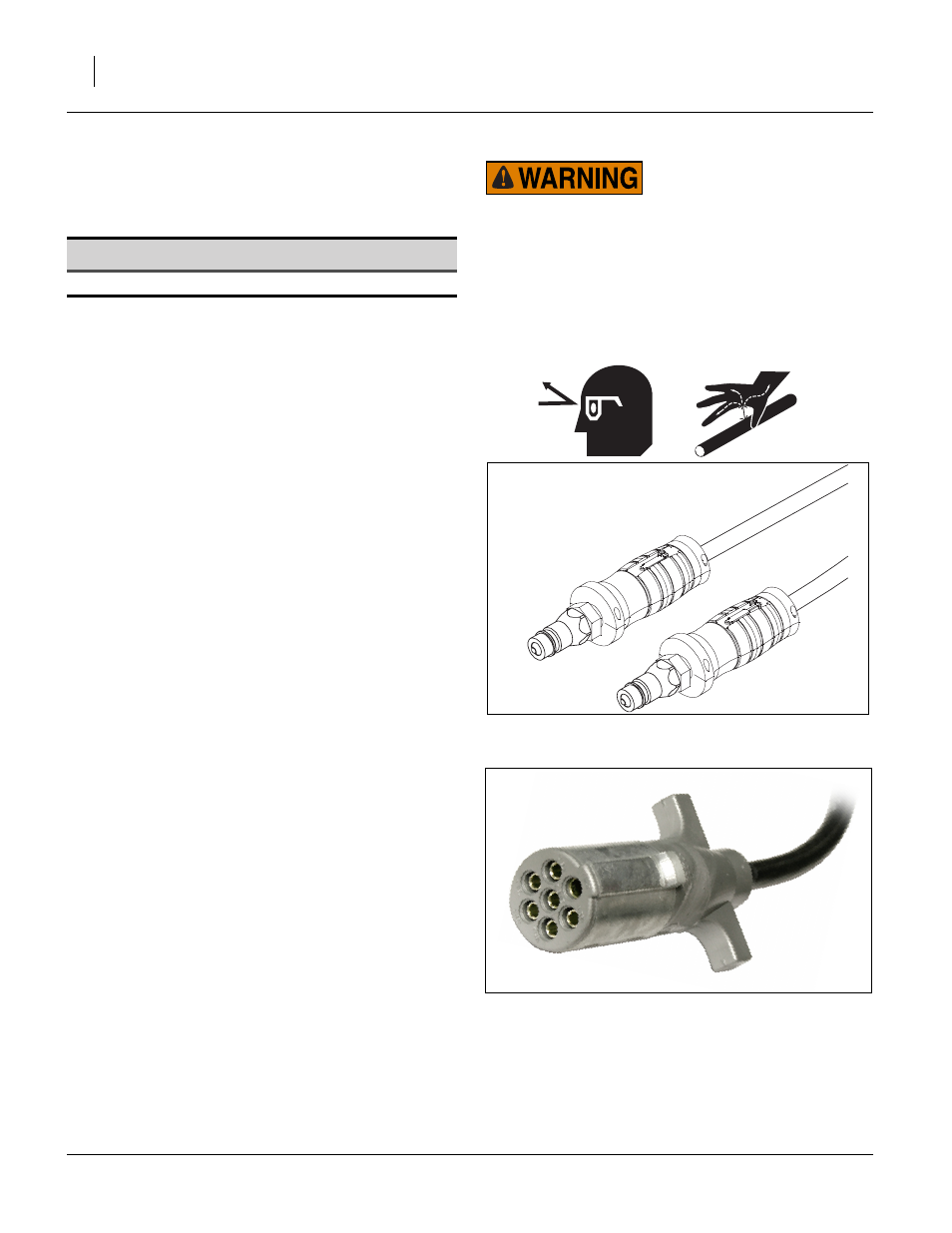

Figure 6
Hose Handles
25463
Figure 7
North American Connector
25236
