Veris Drive Option
8
120-297A 15P-20P-24P VERIS VARI-RATE MT

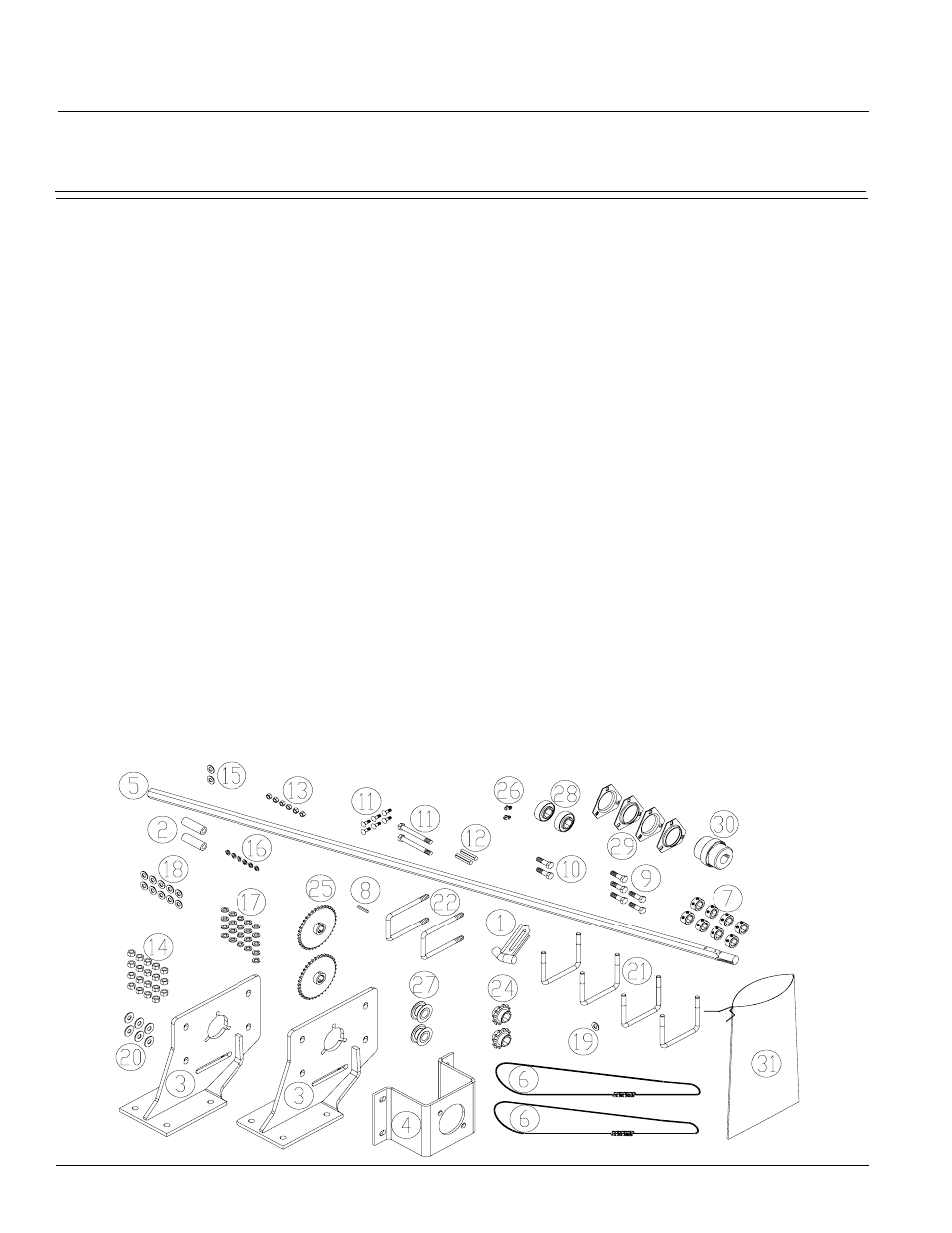

Your kit includes:
1
1
120-211H
GAUGE WHEEL BRAKE
2
2
120-293D
TUBE RND DOM. 1 OD X 7/32W
3
2
120-294H
DRIVE BRACKET
4
1
120-319D
MOTOR ADAPTOR SAE A 2 BOLT
5
1
120-320D
SHAFT 7/8 HEX VARI DRIVE 1
6
2
136-157D
CHAIN RL #40 135 PITCHES
7
8
402-025S
LOCK COLLAR, 7/8 HEX W/ SE
8
1
800-296C
KEY 3/16 X 7/8
9
5
802-082C
HHCS 1/2-13X1 3/4 GR5
10
2
802-091C
HHCS 1/2-13X1 1/2 GR5
11
6
802-282C
RHSNB 5/16-18X1 GR5
12
2
802-672C
HHCS 1/2-13X4 1/2 GR5 SPTH
13
6
803-008C
NUT HEX 5/16-18 PLT
14
19
803-020C
NUT HEX 1/2-13 PLT
15
2
803-036C
NUT HEX JAM 1/2-13 PLT
16
6
804-009C
WASHER LOCK SPRING 5/16 PL
17
21
804-015C
WASHER LOCK SPRING 1/2 P
18
10
804-016C
WASHER FLAT 1/2 SAE PLT
19
1
804-017C
WASHER FLAT 1/2 USS PLT
20
6
804-113C
WASHER FLAT 1/2 USS HARD P
21
2
805-180C
PIN ROLL 1/4 X 1 1/2 LG PLT
22
2
806-122C
U-BOLT 1/2-13 X 3 1/32 X 6
23
4
806-159C
U-BOLT 1/2-13 X 5 1/32 X 4
24
2
808-219C
SPKT 40C12 X 7/8 HEX BORE
25
2
808-251C
SPKT 40C36 X 7/8 HEX BORE
26
2
809-070C
CHAIN CONNECTOR LINK #40 OFFST
27
2
817-406C
IDLER 1 PC 2.38X1.01X1.062
28
2
822-119C
BRG.7/8HEX BR 52MM SPHRICA
29
4
822-175C
FLANGETTE 52 3-BOLT PLT
30
1
826-350C
CONEFLEX COUPLING #3R 1BX7/8B
31
1
833-200C
DJ MAGNETIC PICKUP
29
1
833-249C
VERIS PPC-15-24M MT CONTROLLER
Ref.
Qty.
Part No.
Part Description
