Use Transport Locks
Transport Hazard:
Failure of hydraulic cylinders during transport causes drill to
drop suddenly, which could lead to a serious accident, injury
or death. To prevent an accident, always install cylinder locks
before transporting drill.
Before transporting the drill, check these items:
Cylinder Locks

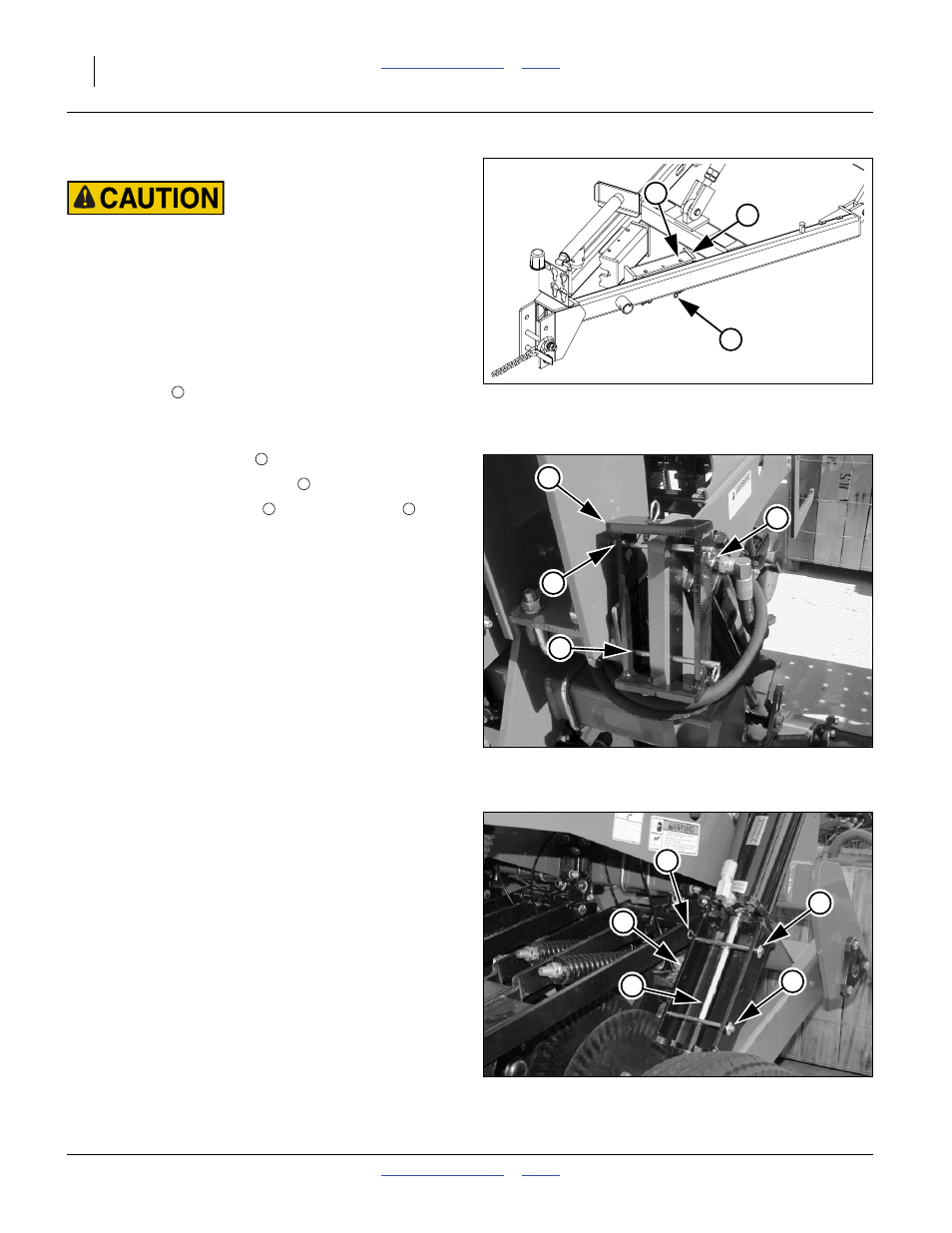

Refer to Figure 14 or Figure 15, and Figure 16
A cylinder lock
is provided for both gauge wheel
hydraulic lift cylinders.
1. Raise drill completely. Set circuit to Neutral.
2. Remove lock channels from storage locations.
3. Place lock channels over rod of cylinder.
4. Install cylinder lock pins and retainer clips .
Note: The cylinder lock can be secured or removed only
after the drill is fully raised.
5. Unload drill box. The drill can be transported with a
full box of grain, but the added weight increases
stopping distance and decreases maneuverability.
Unload drill box before transporting if at all possible.
1
4
3
Figure 14: 2012+
Lift Cylinder Lock Storage
36177 1
Figure 15: 2011-
Lift Cylinder Lock Storage
19653
3
1
3
4
1
2
3 4
Figure 16
Lift Cylinder Lock (RH)
27217
1
4
3
3
2
