2 1300 Seed-Box Agitator 175-208M 3/8/07
Great Plains Mfg., Inc.
Assembly

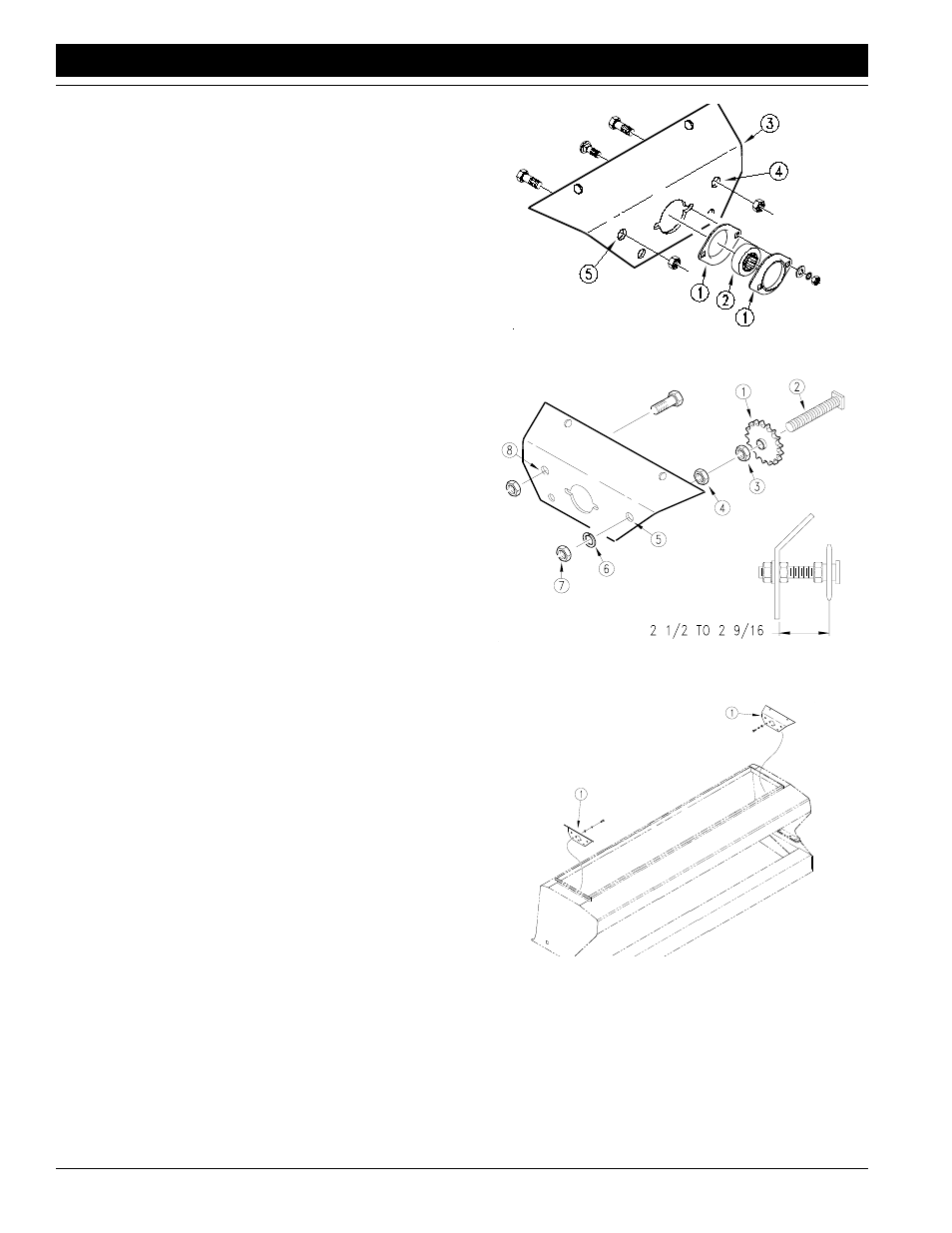

4. Assemble sprockets on the left-hand bearing plate. Slide the
17-tooth idler sprocket (1) over the 5/8-inch, square-head
bolt (2). Run one jam nut (3) up against the sprocket and
torque to 100 foot pounds. Run a second jam nut (4) up on
the square-head bolt. Insert the assembly into hole (5) in
bearing plate. Adjust second jam nut until the center of the
sprocket is about 2 1/2 inches from the bearing plate. Install
lock washer (6) and jam nut (7) and torque to 100 foot
pounds.
If your drill has a small-seeds attachment, install a second
17-tooth sprocket in extra hole (8). If your drill does not have
a small-seeds attachment, install a 5/8-by-1-inch bolt and
jam nut in extra hole (8).
17041
5. Install bearing plates (1) in drill box using bolts, washers and
nuts removed in step1.
17042
■
2. Using 5/16-by-3/4-inch carriage bolts, lock washers and
nuts, install flanges (1) and bearings (2) on both bearing
plates (3).
3. On the right-hand bearing plate, plug the extra holes (4 and
5) with 5/8-by-1-inch bolts and jam nuts.
17040
