Great Plains 1300 Seed-Box Assembly Instructions - Manual

1
Installation Instructions
Great Plains Mfg., Inc.
© Copyright 1998 Printed
Used with:
•
•
Assembly Instructions
Install Agitator Shaft

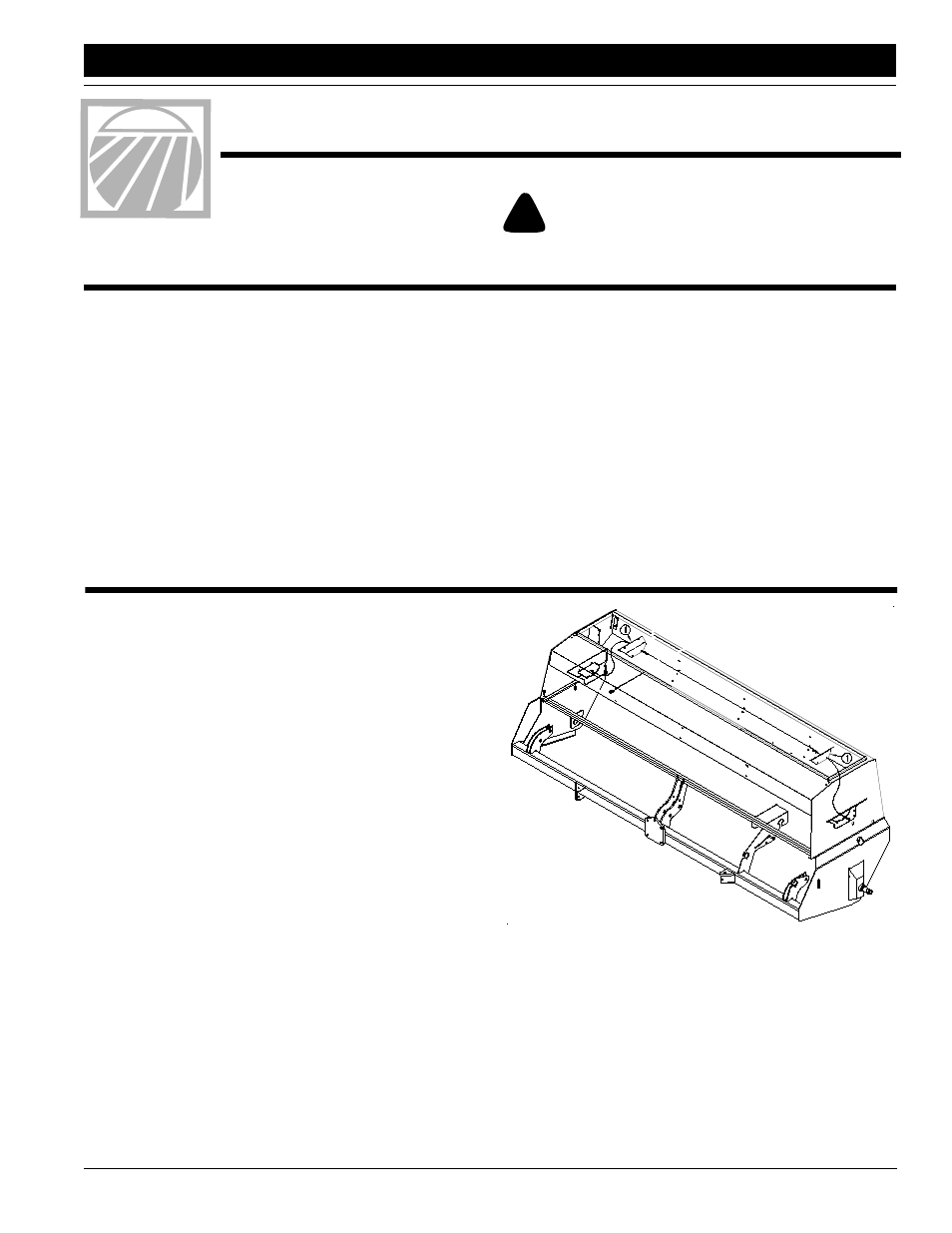

1. Remove and discard the existing end-panel covers (1) from
inside the drill box. Save nuts, washers and bolts for use lat-
er.
17039
175-208M
1300
Seed-Box Agitator
1300
1300F
General Information
These instructions explain how to install the seed-box agitator.
The agitator stirs seed in the main seed box directly above the
metering cups. The agitator prevents bridging of light, fluffy
seeds and separates soybeans that are sticky with inoculant.
These instructions apply to:
175-205A 1300 Agitator Upgrade Bundle, 6 Inch
175-206A 1300 Agitator Upgrade Bundle, 7 1/2 Inch
175-207A 1300 Agitator Upgrade Bundle, 10 Inch
Manual Update
Refer to the drill operator’s manual for detailed information on
safely operating, adjusting, troubleshooting and maintaining the
seed-box agitator. Refer to the parts manual for part identifica-
tion.
• 1300 End-Wheel Drill Operator’s Manual . . . . . . . .175-157M
• 1300 End-Wheel Drill Parts Manual . . . . . . . . . . . . 175-157P
Before You Start
On page 5 are detailed lists of parts included in the agitator kits.
Use these lists to inventory parts received.
Definitions
Right-hand and left-hand as used in this manual are determined
by facing the direction the machine will travel while in use unless
otherwise stated.
When you see this symbol, the subsequent instructions and
warnings are serious - follow without exception. Your life and
the lives of others depend on it!
!!
2/16/98
