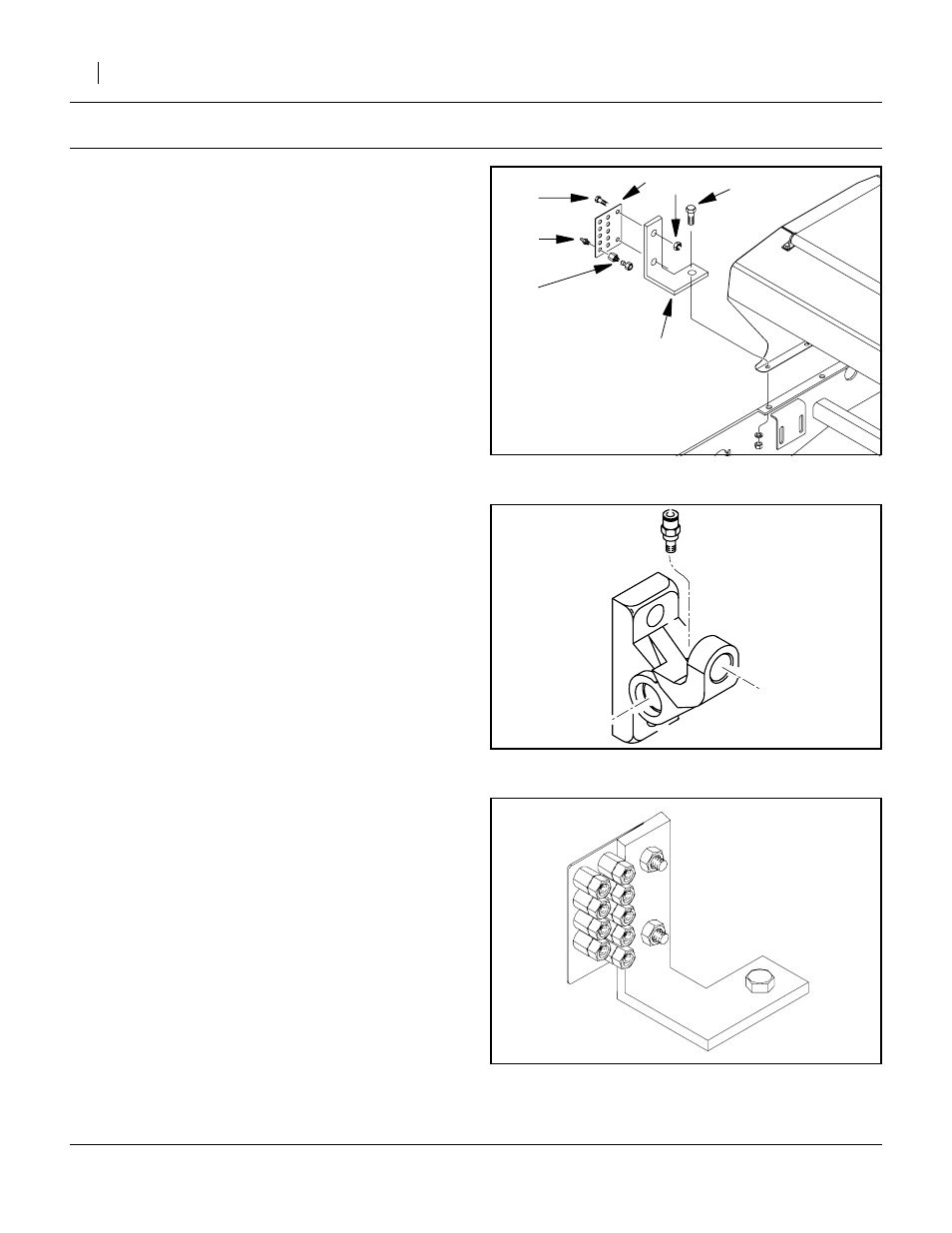

Installation, Figure 2 exploded view of installation, Figure 3 remove old coulter zerk – Great Plains 3P605NT Assembly Instructions User Manual
Page 2: Figure 4 plate with zerks mounted

Great Plains Mfg., Inc.
2
Grease Bank
151-125M
09/25/2006
Installation
1.
Remove the right forward seed box mounting bolt
➉
.
Save the washer and nut. The existing bolt is not re-
used. Do not further disassemble the seed box.
2.
Position the mount
➀
with the 2-hole arm up and
toward the outside of the drill, and the 1-hole arm
aligned with the forward hopper mounting hole. Insert
the 1/2-13 x 1 1/2 bolt
➉
from the kit, and secure
using the existing washer and nut.
3.
Position the Grease Bank plate
➁
on the inside or
outside of the mount
➀
as shown. Attach the plate to
the mount with 3/8-16 nylon-insert bolts
➅
and
3/8-16 nylon-insert nuts
➆
. The plate may be
mounted in front or behind the mount.
Figure 2
Exploded View of Installation
4.
Clean any debris from around the existing zerks.
Remove the existing zerks from each coulter pivot.
Replace each with a grease adaptor
➈
.
The old zerks are not re-used.
Figure 3
Remove Old Coulter Zerk
5.
Install zerks
➂
on the Grease Bank plate, with the
nipples on the outside of the plate, and the tubing
connectors on the back. Tighten the connector
➄
bodies, but leave the caps loose.
Figure 4
Plate with Zerks Mounted
