17 Preparation and Setup
Leveling Boom
!
WARNING!
Pinch point hazard. Your fingers, hands or arms could
be severely injured or severed if caught in the folding
boom sections. Shut off tractor and remove key before
adjusting shims.
The boom sections must be level across the span
for even spraying.

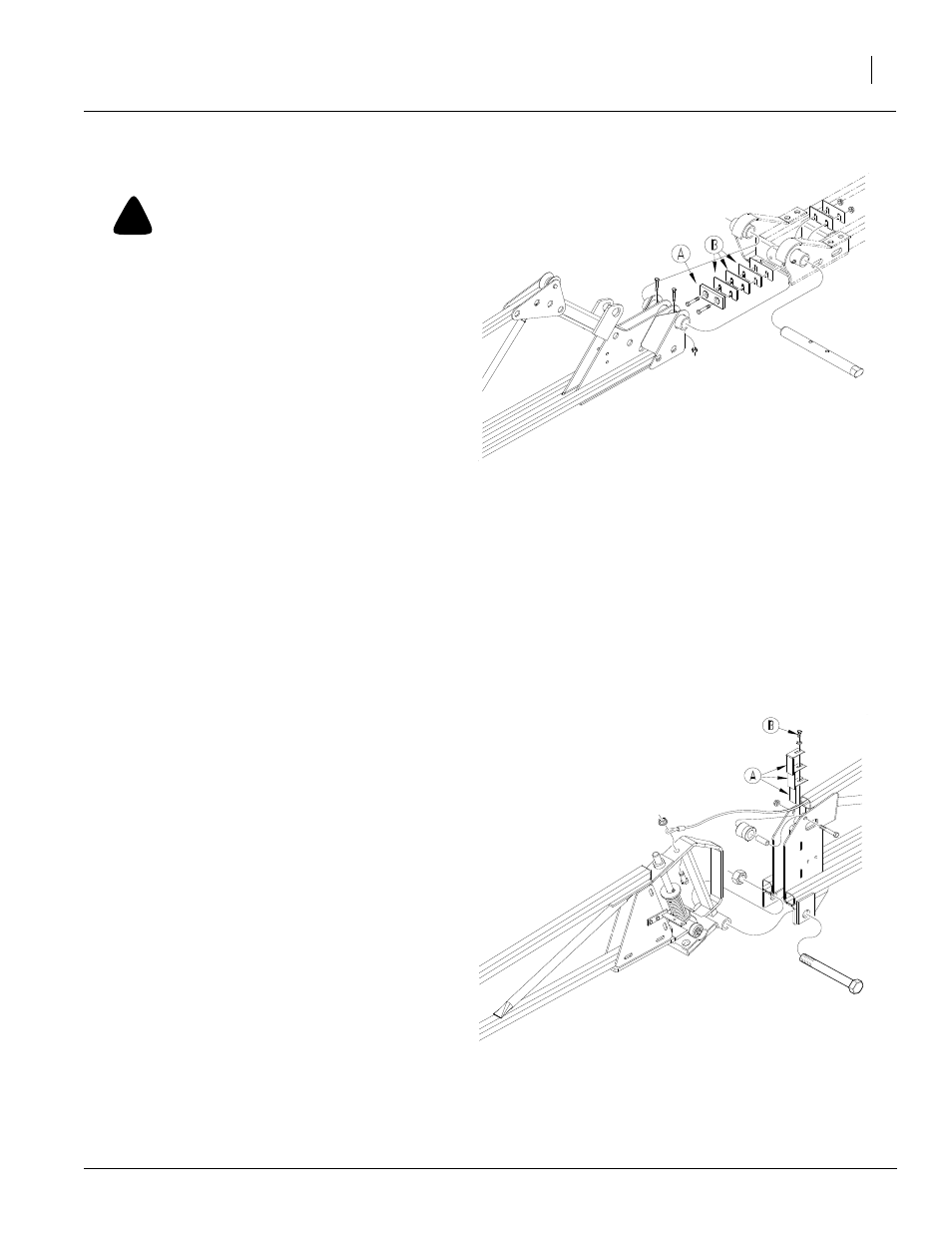

Refer to Figure 3
To adjust an inner arm, fold boom and loosen
bolts (A) holding shims (B). Add or remove shims
as necessary.
Figure 3
Level Inner Arm
16916
Refer to Figure 4
To expose shims for outer arm, fold wings and
band together arms, then disconnect cable from
spring arm and unfold wings while arms are still
banded together. Add or remove shims (A) by
loosening bolt (B).
NOTE: Boom arms are disassembled in figures
for illustration purposes only.
Figure 4
Level Outer Arm
16917
