3. Any extra space in the ballast box can be shimmed with light-weight material
to prevent noise caused by uncontrolled movement of the ballast weights
during operation.
4. Replace the ballast box cover and secure it with the two 1/2” x 1-1/2” bolts

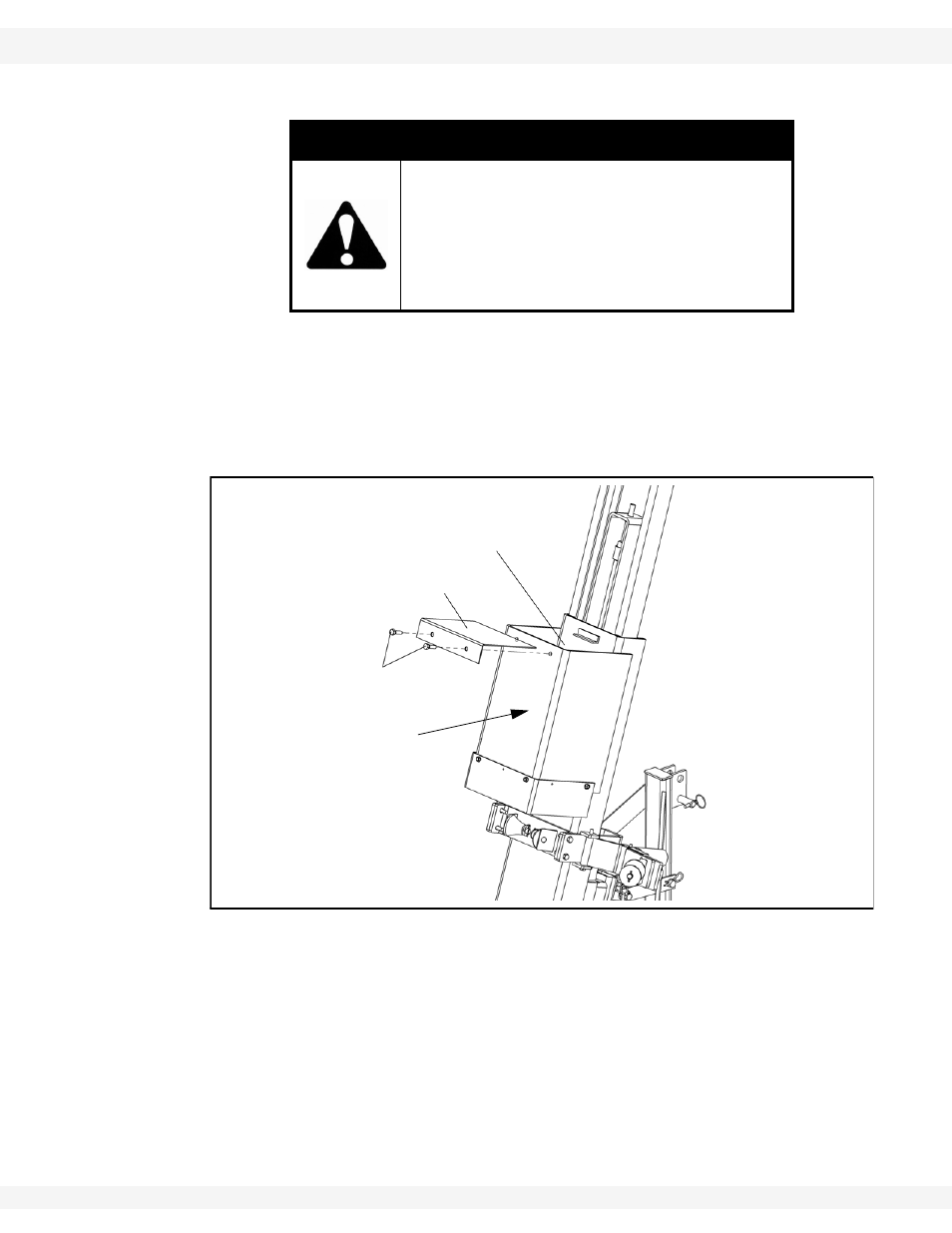

Figure 3.8 Installing Hammer Ballast Weights
WARNING
Do not overfill ballast box. An overloaded
ballast will cause excessive stress on the
hydraulic system and can damage the
equipment and/or potentially injure operators.
Do not exceed 280 lb maximum total ballast
weight.
PLACE BALLAST INSIDE
BALLAST BOX COVER
1/2” X 1-1/2” BOLTS
BALLAST BOX
