3. A SSEMBLY W HEATHEART - P OST P OUNDER
3.2. A SSEMBLING THE S2000 P OST P OUNDER S2000 M ODEL
24 IM15 R1

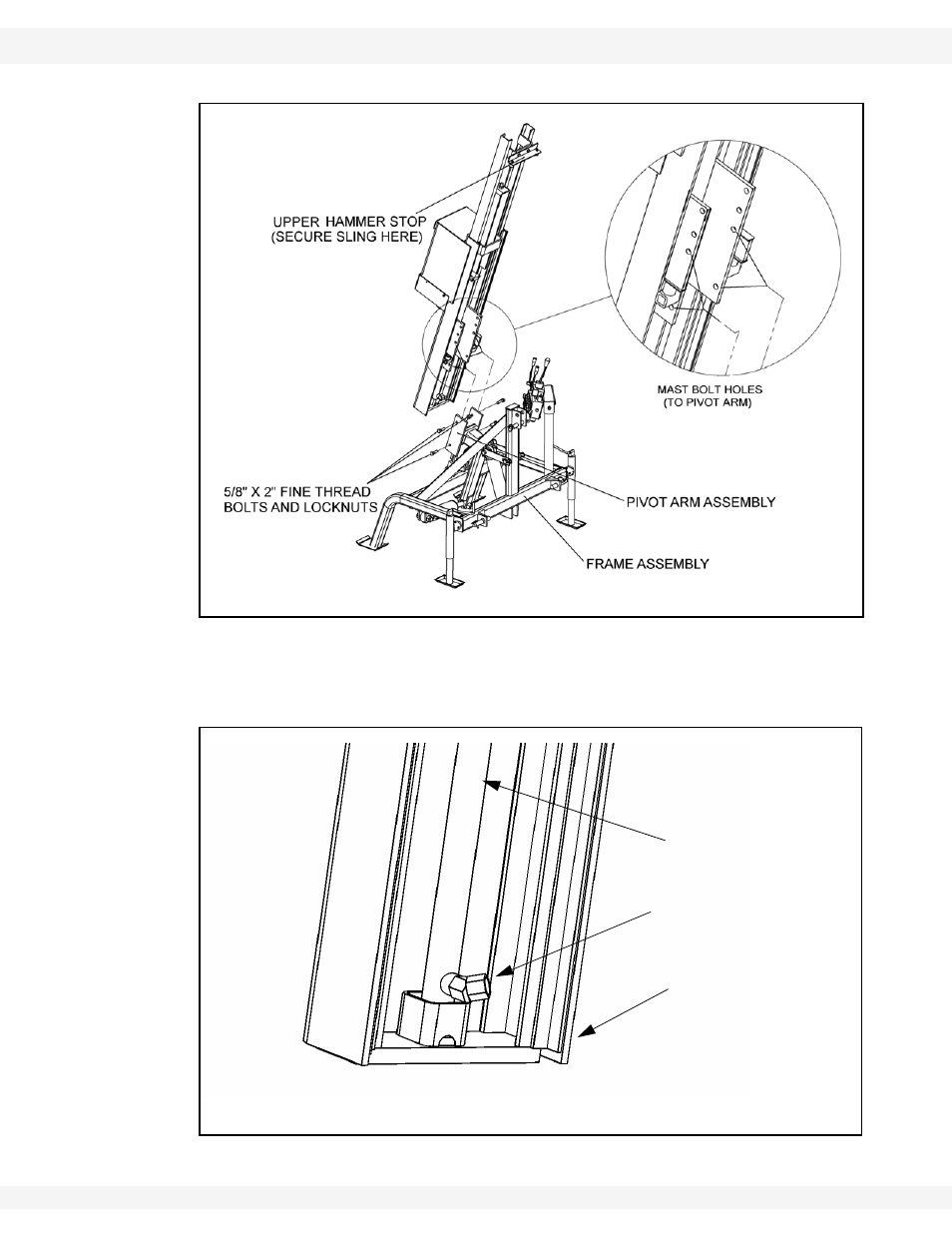

Figure 3.3 Connecting Mast Assembly to the Frame Assembly
5. Connect the mast cylinder hydraulic hose to the fitting located at the base of
the mast cylinder.
Figure 3.4 Mast Cylinder Connector Location
MAST CYLINDER
MAST CYLINDER
MAST BOTTOM
HYDRAULIC CONNECTOR
(BACK VIEW)
