Wheatheart Post Pounder User Manual
Page 40
9. A
PPENDIX
W
HEATHEART
- P
OST
P
OUNDER
9.1. B
OLT
T
ORQUE
V
ALUES
H
IGH
& H
EAVY
H
ITTER
AND
H
IGH
& H
EAVY
H
ITTER
P
LUS
40
IM4 R3
Torque figures indicated above are valid for non-greased or non-oiled threads
and head unless otherwise specified. Therefore, do not grease or oil bolts or
capscrews unless otherwise specified in this manual. When using locking
elements, increase torque values by 5%.

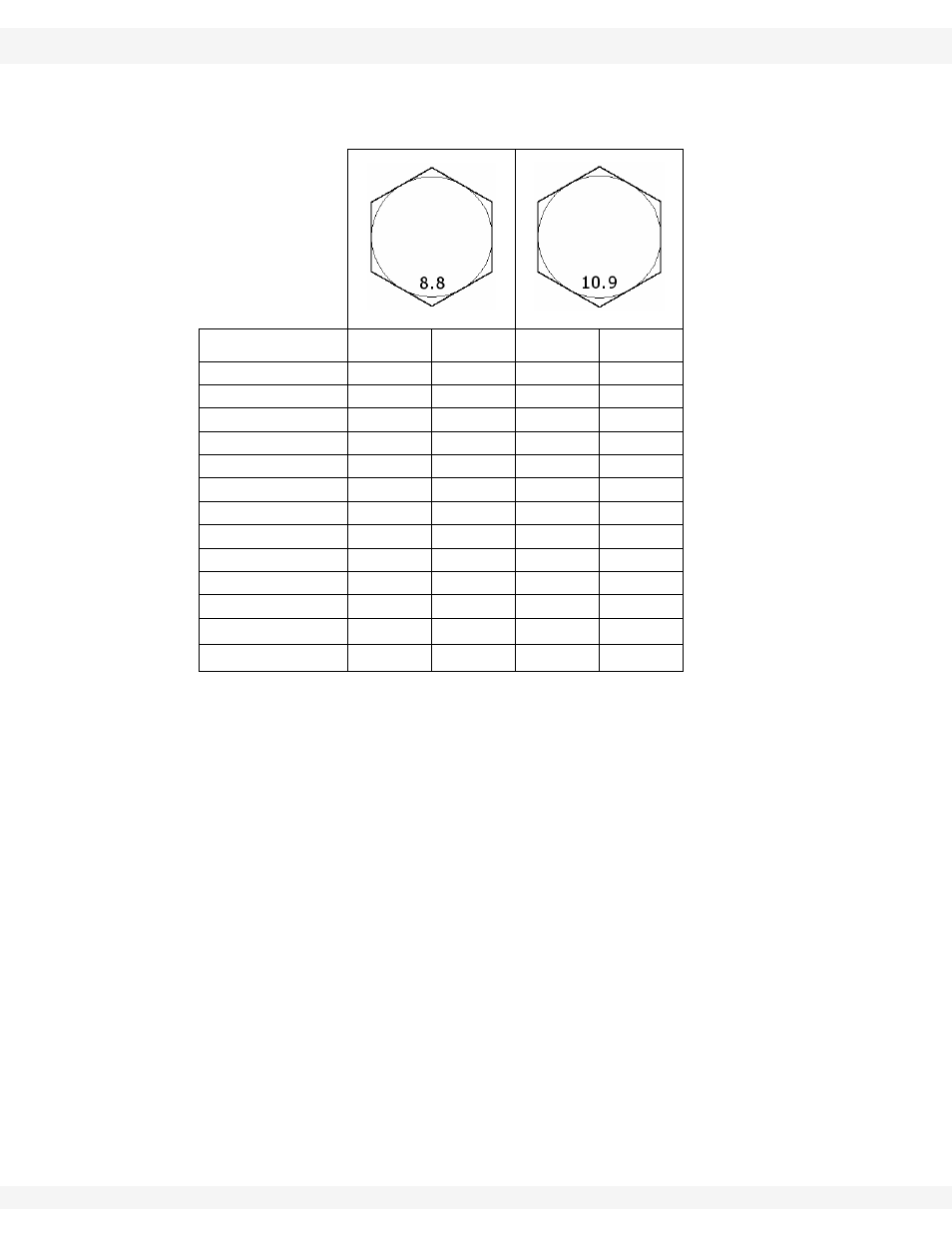

Table 9.2 Metric Bolt Torque
BOLT DIAMETER
(Nm)
(Lb-ft)
(Nm)
(Lb-ft)
M3
0.5
0.4
1.8
1.3
M4
3
2.2
4.5
3.3
M5
6
4
9
7
M6
10
7
15
11
M8
25
18
35
26
M10
50
37
70
52
M12
90
66
125
92
M14
140
103
200
148
M16
225
166
310
229
M20
435
321
610
450
M24
750
553
1050
774
M30
1495
1103
2100
1550
M36
2600
1917
3675
2710
