Monarch Instrument SPLS-5 Series - Manual (Page 5)

2
COMPONENT SPECIFICATIONS
SPS-IM Interface Module
Internal Batteries: 4 ‘AA’ Nickel Cadmium
1.2 Vdc each, total 4.8 Vdc
Capacity: 600 mAh
Operating Interval: 8 hours typical from internal batteries
Continuous Operation:115 Vac or 230 Vac using R-5 or R-6 recharger/
power supply, or CA-SPS12 cable for 9-13 Vdc
Charge Rate: 50 mA typical
Charge Time: 16 hours
Output: TTL compatible pulse, Inverted (0 to 5 Vdc) or
Non-Inverted (5 to 0 Vdc) – switch selectable.
Open collector with 4.7 k Ω pull - up to 5 Volts in Inverted
mode, passes sensor signal straight through in Non-Inverted
mode (see sensor specifications)
Current Draw: 76mA with 10 k Ω load (operational)
Output Connector: BNC Connector (female)
Operating Temp: 32° F to 122° F [0° C to 50° C]

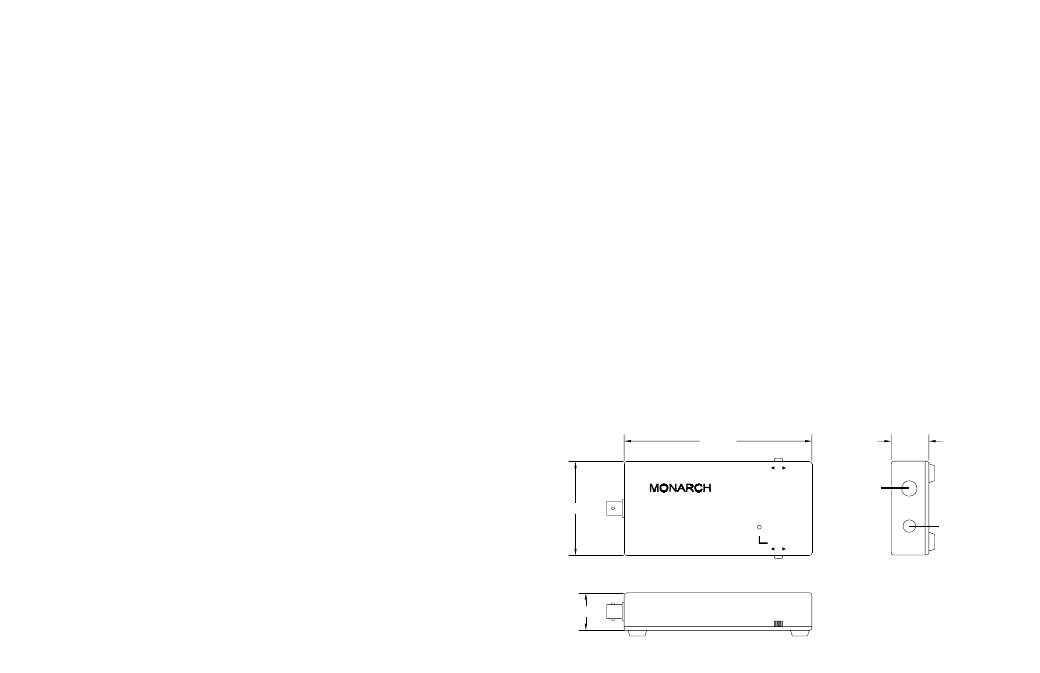

Dimensions: 5.0" x 2.5" x 1" [127 mm x 64 mm x 25 mm]
Weight: 10 oz. [283 grams]
OUTPUT
CHARGE
OFF ON
NON-INVERTING INVERTING
POWER
OUTPUT SELECTION
EXTERNAL
DC
5.00[127]
2.50[64]
1.00[25]
1.00[25]
Remote
Sensor
Input Jack
Recharger
Jack
13
SENSORS / OPTIONS AND ACCESSORIES
ROS-5P Remote Optical Sensor with 8 foot cable and mounting bracket
RLS-5P Remote Laser Sensor with 8 foot cable and mounting bushing
on base
IRS-5P Infrared Sensor with 8 foot cable for use without reflective
target at 0.5 inch gap (5 to 500,000 RPM)
MT-190P Magnetic Trigger Sensor/Amplifier with 8 foot cable - 0.250
gap, 2” long x 5/8”-18NF
EC-25P 25 foot Extension Cable for remote sensors with male 1/8”
[3.5 mm] phone plug to female 1/8” [3.5 mm] connector
T-5 Reflective Tape, 5 foot [1.5 m] roll, ½ inch [13 mm] wide
T-5WP Waterproof Reflective Tape (honeycomb pattern), 5 foot
[1.5 m] roll, 1 inch [25 mm] wide
B-4 Four “AA” Rechargeable NiCad batteries
R-5 Recharger, 115 Vac - 50/60 Hz
R-6 Recharger, 230 Vac - 50/60 Hz
CA-SPS12 Cable assembly with tinned leads for 5-15 Vdc operation
