SHR Series Woodburning Fireplace
20001384
1384 pts
replacement parts
5/27/99 djt
7/14/99 removed clips,added push nut
1
2
3
4
5
6
7
8
a
b
c
9
10
11
d
12
13
CFM Corporation reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products at any time,
without notice.

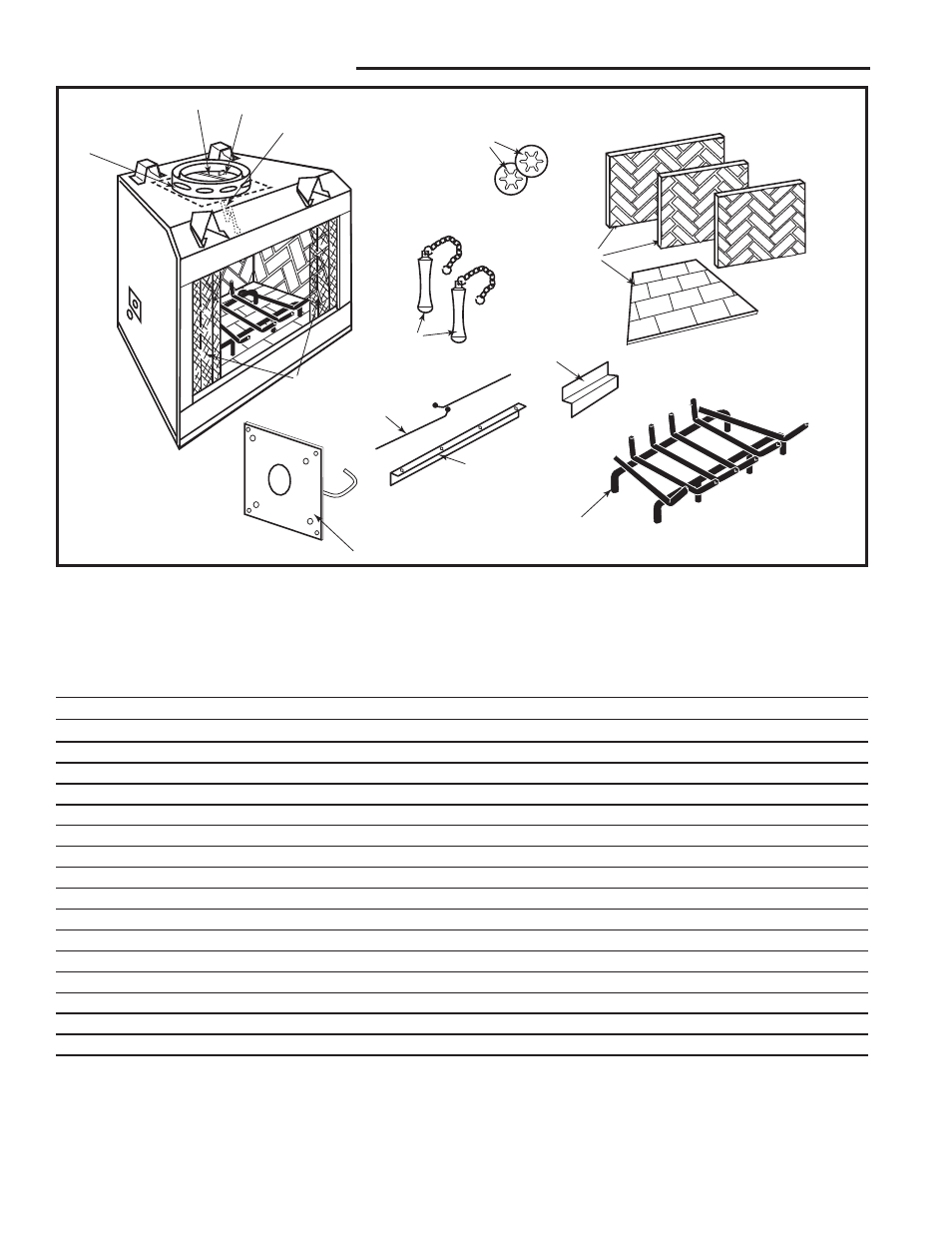

SHR36/42A/48/52 Woodburning Fireplace
For units FH30R0, GH40R0, HH30R0, IH10R0
Ref. Description SHR36 SHR42A SHR48 SHR52
1. Damper Weld Assembly RP210 RP210 RP210 n/a
2. Damper Handle 20001418 20001418 20001418 20005322
3. Screen Rail 20001429 20006021 20001431 20005569
4. Screen Rod (two per fireplace) 7554181 7554199 20001428 20005790
5. Screen (two per fireplace) 7554295 20001723 20001723 20005278
6. Screen Pull (two per fireplace) 5584139 5584139 5584139 5584139
7. Push Nut (two per fireplace) 7512167 7512167 7512167 7512167
8a. Firebrick - Hearth 20001272 20005611 20001172 20005303
8b. Firebrick - Back 20004165 20005610 20004147 20005293
8c. Firebrick - Left Side 20004166 20005612 20004154 20005302
8d. Firebrick - Right Side 20004167 20005613 20004148 20005304
9. Firebrick Retainers (three per fireplace) 20001432 20001432 20001432 20001432
10. Basket Grate 20004203 20004203 20004311 20005433
11. O.S.A. Assy. 20003076 20003076 20003076 20005762
12. Damper Blade Assy n/a n/a n/a 20007536
13. Pivot Rod n/a n/a n/a 20005772
