Quoizel RO8410AC Rue De Royal User Manual
Assembly / installation instructions

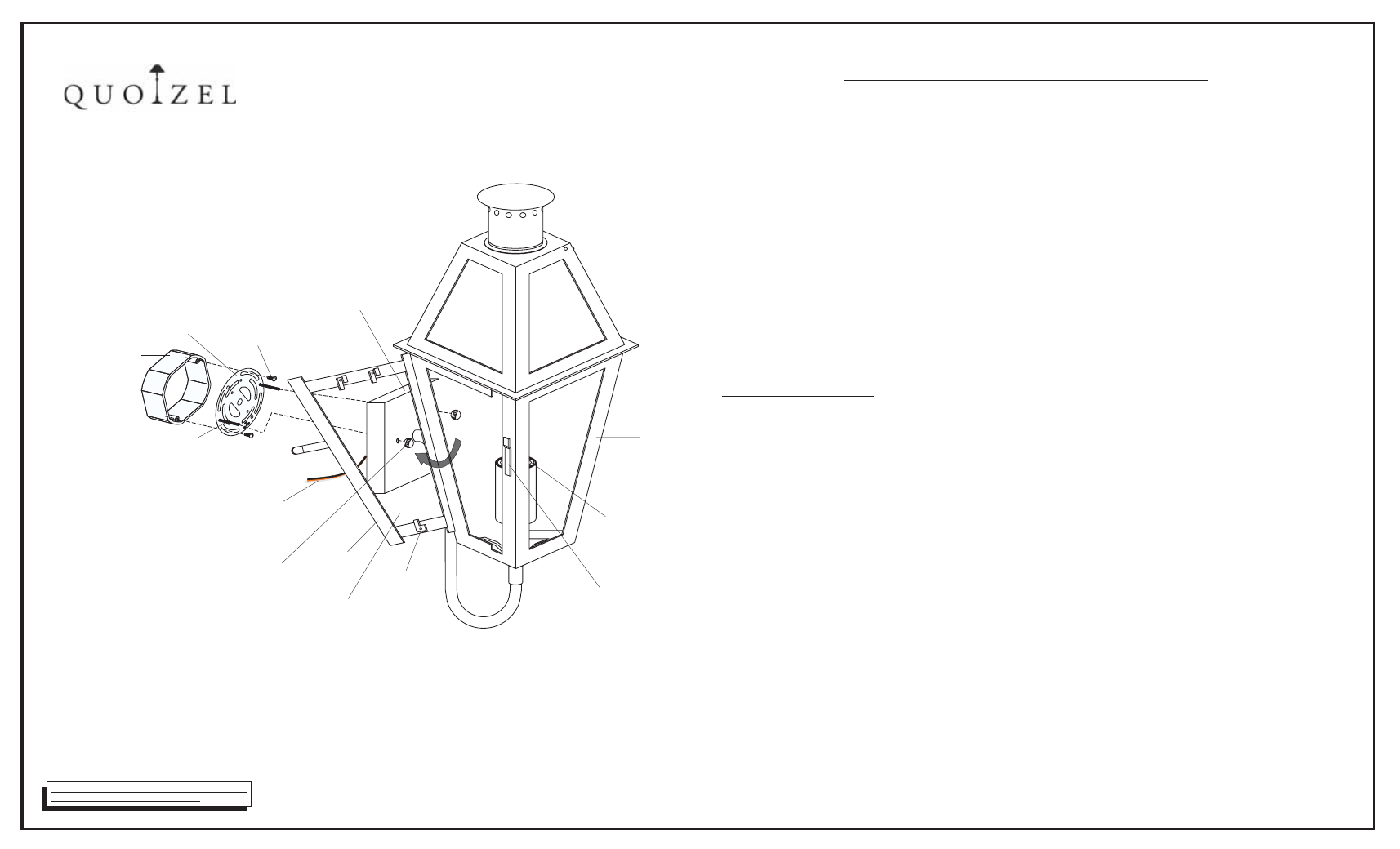

CAGE
SOCKET
BACKPLATE
BOLT
DOOR
BOLT HOLDER
FIXTURE SUPPLY WIRE
and GROUND WIRE
OUTLET BOX
(2) MOUNTING SCREWS
(2) OUTLET
BOX SCREWS
(not supplied)
UNIVERSAL
CROSSBAR
( )
2 MOUNTING BALLS
ASSEMBLY / INSTALLATION INSTRUCTIONS
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
,
.
.
.
IF IN DOUBT ABOUT ELECTRICAL INSTALLATION,
CONSULT A LICENSED ELECTRICIAN!
IS-RO8410
Page 1 of 2
Revised 2008 03 22
- -
TAB
GLASS PANEL
Note
If you find any Tabs do not engage Glass Panels well during assembly
please push the
Tabs until they are attaching onto the Glass Panels
:
,
.
1. Before beginning the installation, carefully unpack and identify all parts referring to illustration.
2 Turn the electrical power to installation point OFF at circuit breaker
3 Open the DOOR and install the correct bulb referring to the fixture markings and or labels
for maximum wattage
Proceed to close the DOOR by placing the BOLT onto the BOLT
HOLDER
4. Place the CROSSBAR on the BACKPLATE and align the holes in the BACKPLATE with a set of
threaded holes in the CROSSBAR. Install the (2) MOUNTING SCREWS in the aligned threaded
holes on the CROSSBAR. Next, mount the CROSSBAR to the outlet box with (2)OUTLET BOX
SCREWS (not provided).
5.
:
Use wire connectors(not supplied) connect the HOUSE GROUND to the FIXTURE GROUND
WIRE attach the HOUSE WHITE WIRE to FIXTURE WHITE (or RIBBED SIDE) SUPPLY WIRE;
connect the HOUSE BLACK(or RED) WIRE to the FIXTURE BLACK(or SMOOTH SIDE) WIRE.
Wrap each connection with approved electrical tape.
6. Carefully tuck all wires into the WALL MOUNTED OUTLET BOX and position the fixture over the
outlet box. Align the HOLES in the BACKPLATE with the 2
MOUNTING SCREWS attached to
the UNIVERSAL CROSSBAR. Pass the fixture over the
2 MOUNTING SCREWS and secure
against by threading
2 MOUNTING BALLS onto end of screw. Tighten until snug.
7.Refer to Page 2 for fixture caulking installations.
8. Restore power to the installation point ON. Retain this sheet for future reference.
,
.
/
.
.
;
.
.
( )
( )
( )
Make the connections
