Assembly Instruction Sheet #IS-MLN8309K
For Style MLN8309K
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
, .
. .
September 2012

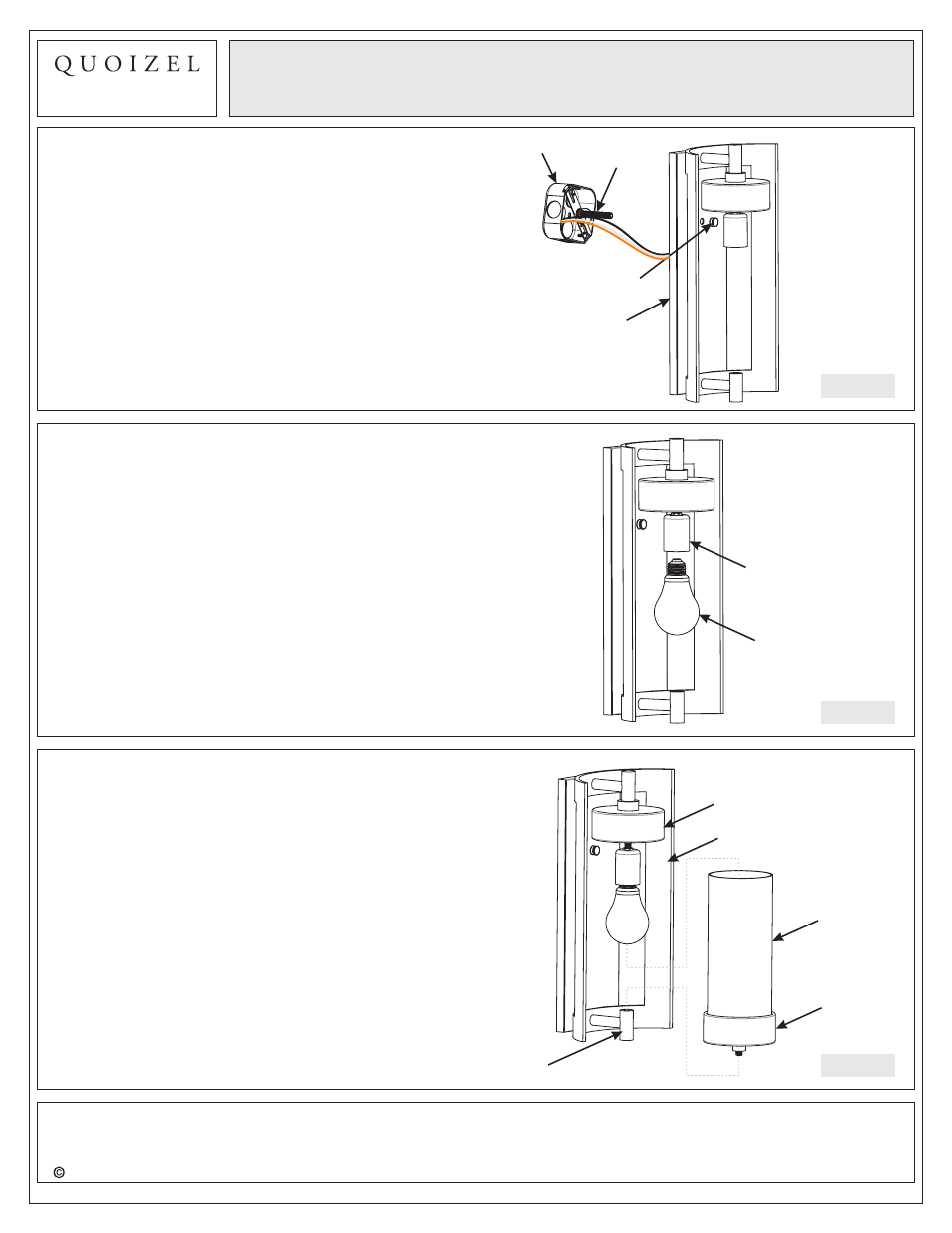

STEP 4
- Attach Fixture Body to Nipple
A. Place the Backplate of the Fixture Body (F) over the
Nipple (B) and secure with the Mounting Ball (E). Hand
tighten until snug.
Figure 5
Outlet Box
Mounting Ball
Backplate
Nipple
STEP 5
- Install Bulb
A. This fixture uses standard bulb (supplied) with a
standard screw base. Maximum 100 watts.
B. Insert bulb and screw properly into place.
Figure 6
Socket
Bulb
Figure 7
STEP 6 Attach Shade to Fixture Body
-
A. Place Shade Assembly (G) into the Cap on the Fixture
Body (F), then thread the Shade Assembly (G) into the
lock hole on Cylinder on the bottom of Fixture Body (F).
Hand tighten until snug.
Notice: when fix the shade assembly into the cylinder,
only twist the metal cap not the glass.
Shade
Assembly
Cap
Cylinder
Fixture Body
Metal Cap
