Assembly Instruction Sheet #IS-CCR8410CU
For Style CCR8410CU

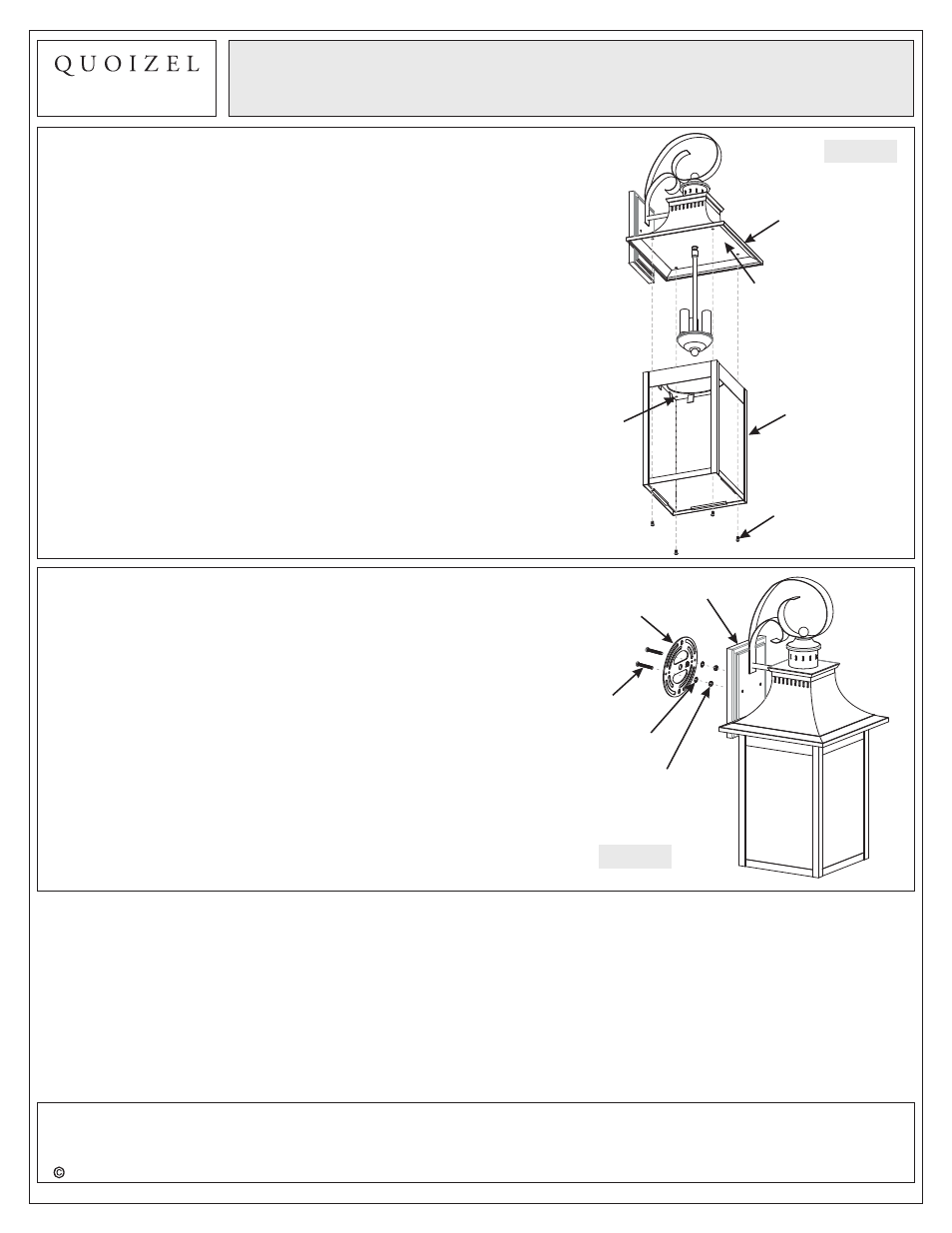

Figure 3 STEP 3 - Attach Cage with Glass Panels to
Fixture Hood
A. Attach the Cage with Glass Panels back onto the
Fixture Hood. By using the screwdrivers, thread the
Lock Screws into the Mounting Holes on the Fixture
Hood. Hand tighten until snug to secure the Cage to the
Fixture Hood.
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
, .
. .
July2013
STEP 4 - Attach Mounting Screws, Lock
Washers and Hex Nuts to Crossbar
A. Line up a set of holes on the Crossbar (A) and Holes on
the Backplate of the Fixture Body (F).
B. Thread Mounting Screws (B) into the holes on the
Crossbar (A), pass Lock Washers (C) and thread Hex
Nut (D) onto the Mounting Screws (B). Hand tighten
until snug.
Figure 4
Mounting Hole
Fixture Hood
Cage with
Glass Panels
Lock Screw
Hole
Backplate
Mounting
Screw
Crossbar
Lock Washer
Hex Nut
