Assembly Instruction Sheet #IS-UPMM8701IS
For Style UPMM8701IS
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
5of5
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
, .
. .
CAUTION FOR BULB REPLACING
A. When replace bulb, turn off power and allow lamp to cool. For safety purpose, wear gloves and eye protection.
B. If bulb is scratched or cracked, DO NOT use the lamp to avoid breakage during use or installation.
C. Use only in fixtures rated for lamps wattage and voltage.
D. Lamp operate under high pressure generating intense heat. Prevent contact with liquid and combustible
materials.
STEP 6 Install Bulb and Bulb Shield -
A. This fixture uses Frosted G9 Halogen Bulbs. Maximum 75
watts.
B. Insert bulb and seat properly into place.
C. Screw Bulb Shield (H) onto the Socket and hand tighten until
snug.
Do not touch the bulb with bare hands use a
cloth or glove.
Your fixture is now assembled and ready to use.
Enjoy!
IMPORTANT:
Figure 7
Socket
G9 Bulb
Bulb Shield

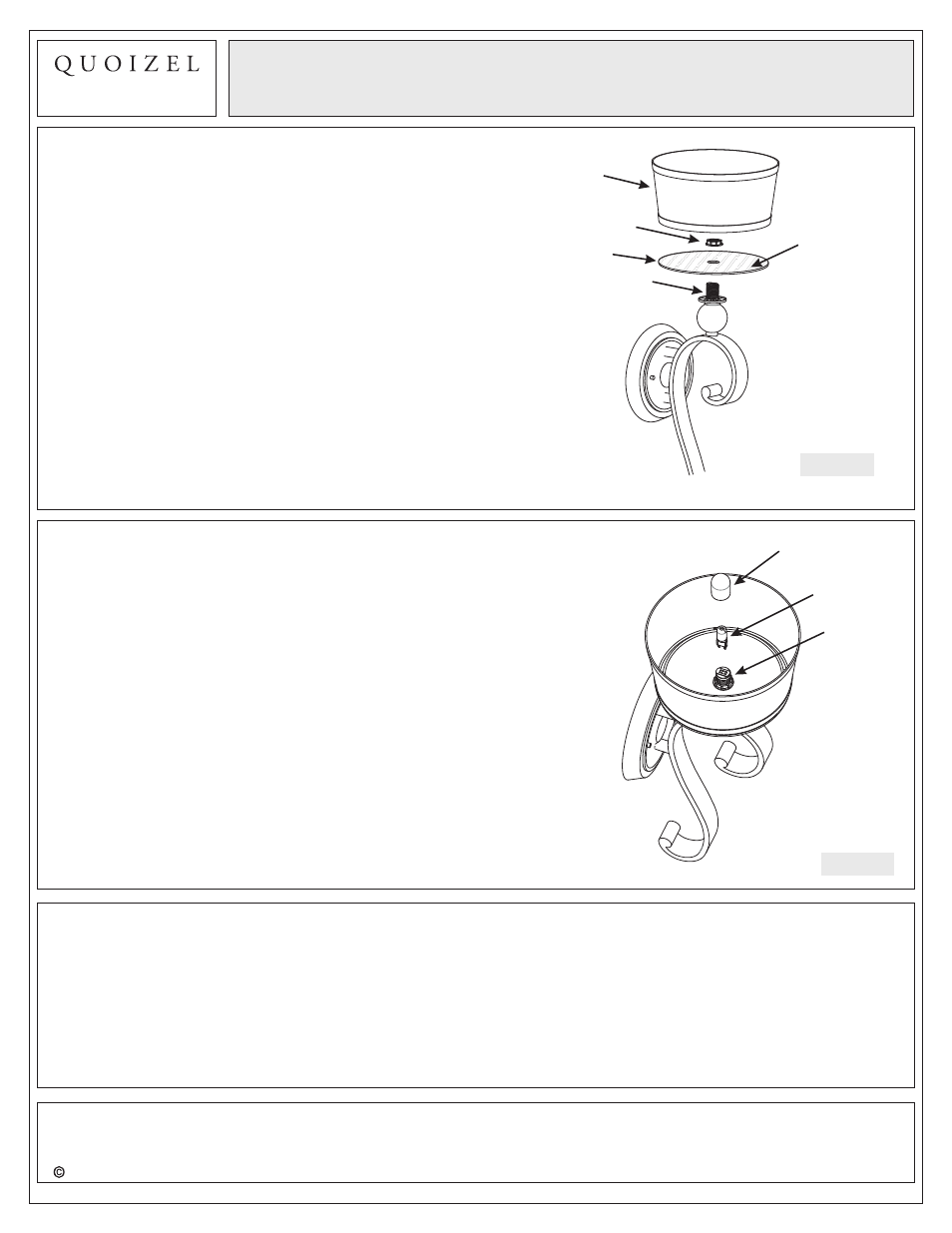

STEP 5 - Attach Shade to Fixture Body
A. Place the Diffuser (K) over the Socket as show. Thread
the Socket Collar (F) onto the Socket to secure the
Diffuser (K). Hand tighten until snug.
B. Place the Shade (J) over the Diffuser (K).
Shade
Socket Collar
Socket
Diffuser
Sandblast
Figure 6
2012 QuoizelInc. October2012
