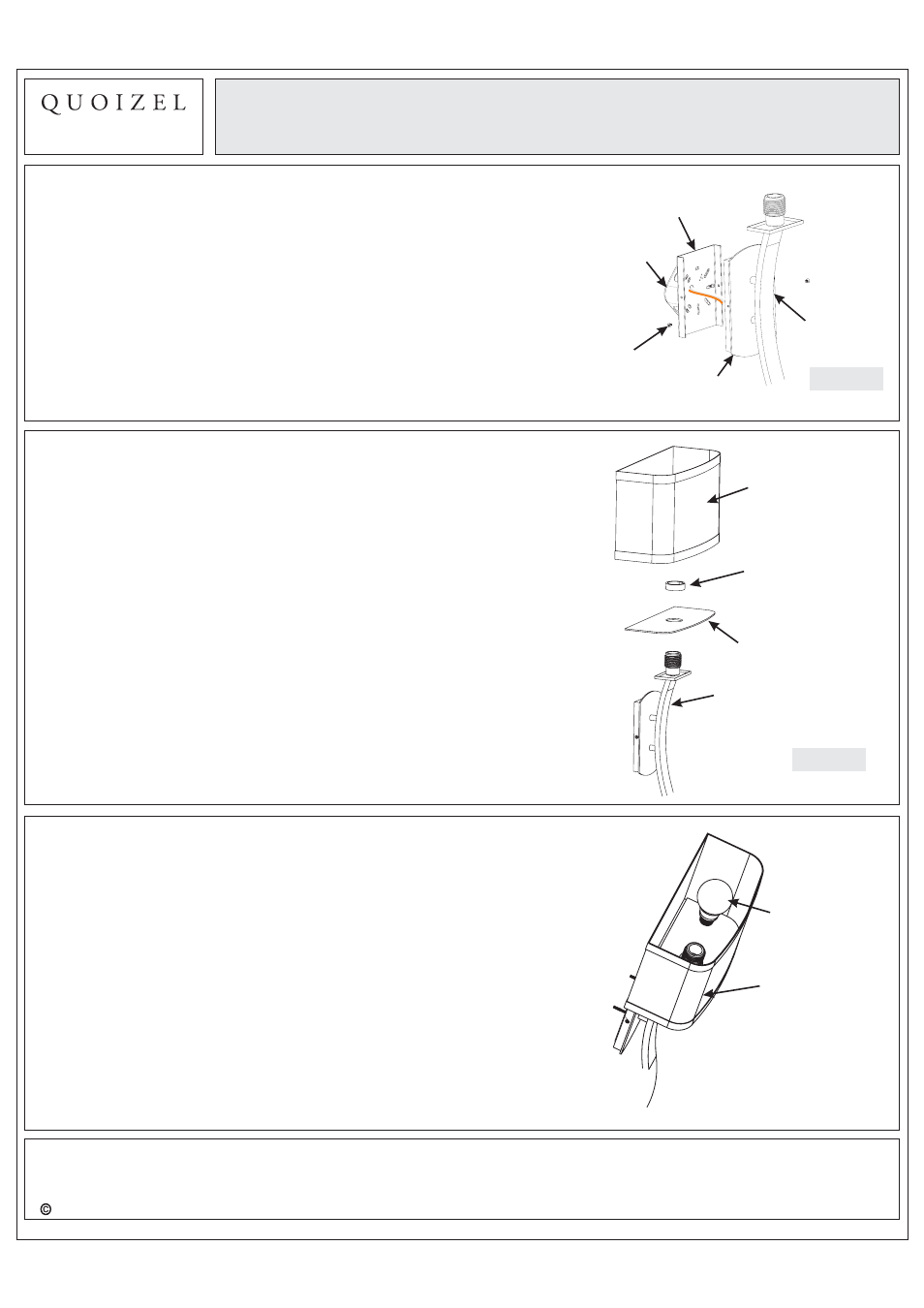

STEP 3
- Attach Fixture Body to Outlet Box
A. Attach the Backplate of Fixture Body (B) over the Inner
Backplate (A) and secure with the Mounting Screws (E).
tighten until snug. Flathead screwdriver
Outlet Box
Figure 4
Mounting Screw
Inner Backplate
Backplate
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
2011 QuoizelInc.
4of4
October2011
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
, .
. .
Figure 5
Fixture Body
STEP 4
- Attach Shade to Fixture Body
A. Place the Diffuser (D) over the Socket as shown.
Thread the Socket Collar (F) onto the Socket to secure
the Diffuser (D). Hand tighten until snug.
B. Place the shade over the Diffuser properly. (C) (D)
Socket Collar
Diffuser
Socket
Shade
Socket
Bulb
STEP 5
- Install Bulb
A. bulbs with a standard screw
base
This fixture uses standard
. Maximum 100 watts.
B. Insert bulb and screw properly into place.
Your fixture wall lamp is now assembled and ready to
use. Enjoy!
Assembly Instruction Sheet #IS-UPHL8701IS
For Style UPHL8701IS
