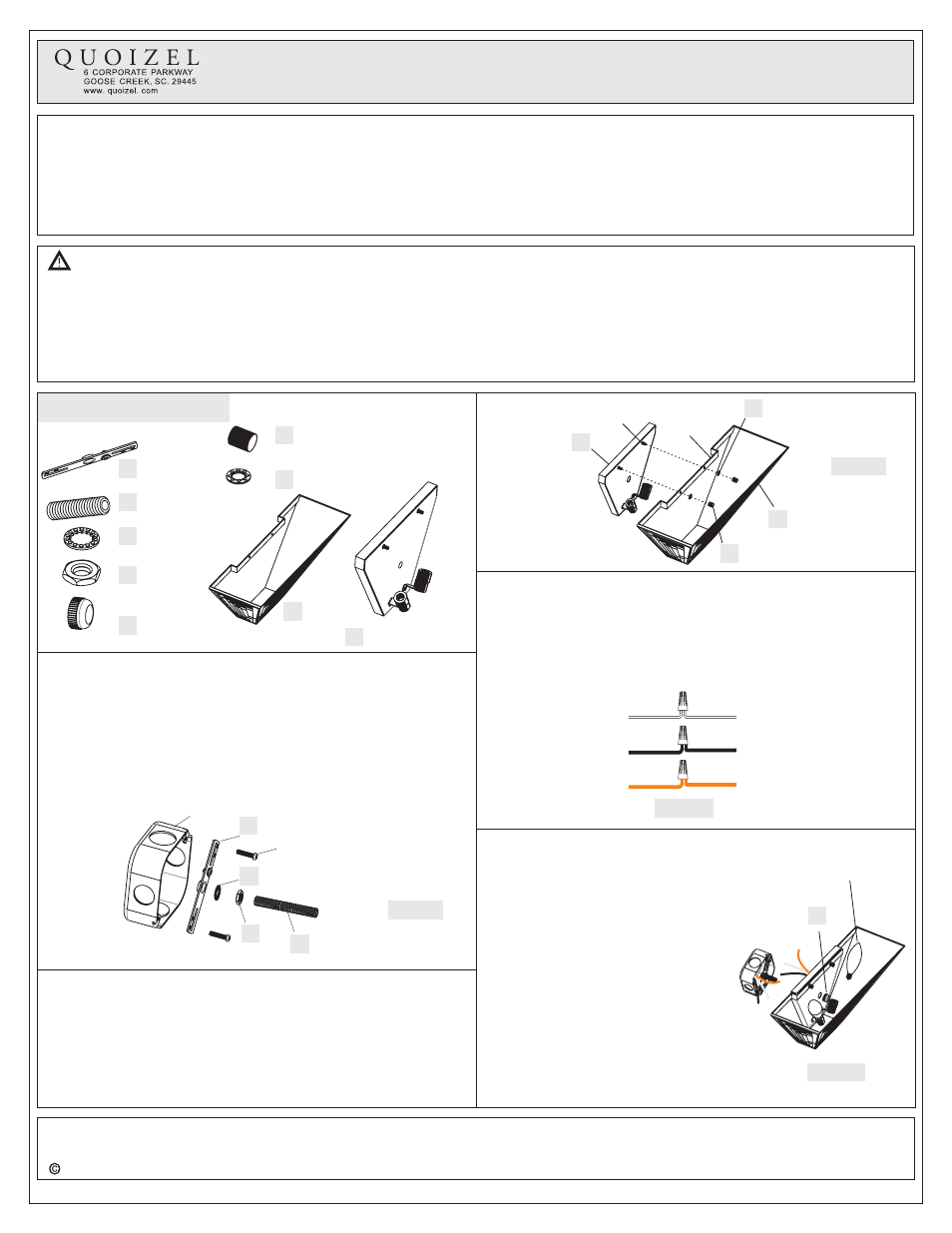

Quoizel TFIK8802 Inglenook User Manual
Package contents, Warnings and cautions

Package Contents
Tools Required: Flathead screwdriver, Phillips screwdriver, pliers, wire cutters, wire strippers, electrical tape, safety glasses.
Bulb Recommended:
Estimated Assembly Time:
Preparation:
Fixture can only be mounted in the direction indicated on page 2.
Alternate bulb (2) 13W CFL
.
30-45 minutes
Identify and inspect all parts before beginning installation. Check package content list and diagrams below to be sure all parts are
present. If any parts are missing or damaged, do not attempt to assemble, install, or operate the fixture. Contact customer service for replacement
parts.
(2)
Base 0W Maximum,
Candelabra
6
Candelabra
Warnings and Cautions
1of2
Assembly Instruction Sheet #IS-TFIK8802
For Style TFIK8802
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
2014 QuoizelInc.
April2014
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal. Do not subject
glass parts to any shock while in operation or shattering may result.
Crossbar
x 1
Lock Ball
x 2
Small Lock Washer
x 2
Shade
x 1
Socket Assembly
x 1
Nipple
x 1
Lock Washer
x 1
Hex Nut
x 1
Mounting Ball
x 1
STEP 1
Attach Nipple to Crossbar
-
A. Secure the Crossbar (A) to the outlet box with outlet box screws
(not supplied). Tighten until snug.
B. Thread one Hex Nut (D) onto the top end of the Nipple (B).
C. Place one Lock Washer (C) over the top end of the Nipple (B) and
then thread the Nipple (B) into the center lock hole of the
Crossbar (A).
D. Using pliers, thread the Hex Nut (D) against the Crossbar (A) and
hand tighten until snug.
A
F
G
H
I
B
C
D
E
Figure 1
STEP 3 - Wire Connections
A. Use standard wire connectors (not included) to make all wire
connections. (Connectors are not included with fixture.) Twist
connectors until wires are tightly joined together. Wrap each
connection with approved electrical tape and carefully stuff all the
connected wires into the Outlet Box.
STEP 4
Attach Fixture Body to Nipple
-
A. Place the Backplate of the Socket
Assembly (I) over the Nipple (B) and
secure with the Mounting Ball (E).
Hand tighten until snug.
B. This fixture uses standard bulbs with a
standard screw base. Maximum 60
watts. Insert bulb and screw properly
into place.
Your fixture is now assembled and
ready to use. Enjoy!
White wire
from supply
Ribbed side wire
from fixture
Black wire from
supply (or Red)
Smooth side wire
from fixture
Ground wire
from supply
Ground wire
from fixture
Figure 3
Outlet Box
Screw (not
Supplied)
Outlet Box
Bolt
Bar
STEP 2
Attach Shade to Socket Assembly
-
A. Pass holes on the Bar and
over the
bolts
I and
with Lock Balls (F).
the Small Lock Washers (G)
on the Socket Assembly ( )
secure
Figure 2
Bulb
Figure 4
A
B
C
D
E
I
G
F
H
