Quoizel DH8801AN Duchess User Manual

Installation instructions

background image

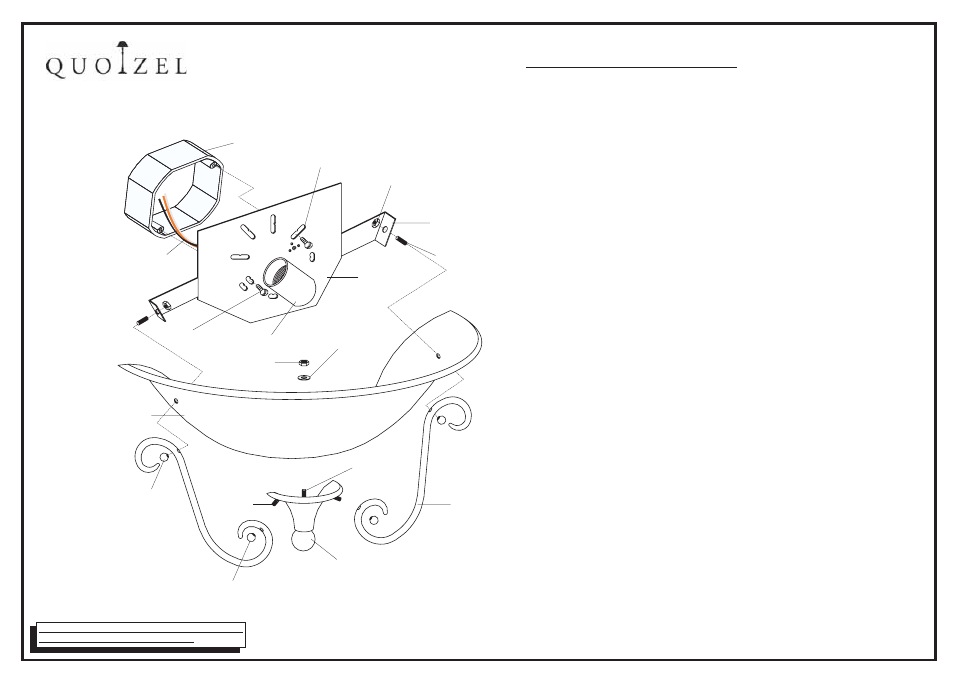

BACKPLATE

FIXTURE SUPPLY WIRE

and GROUND WIRE

LOCK BALL

LOCK BALL

SCREW

SHADE
SUPPORT

STRAP

SOCKET

SHADE

SIDE ARM

SHADE HOLDER

SCREW

INSTALLATION INSTRUCTIONS

1.Before beginning the installation, carefully unpack and identify all parts

referring to the illustration.

2.Turn the power to the installation point OFF at circuit breaker.

3. Position the hole on the bottom of the SHADE over the SCREW inside of the

SHADE HOLDER. Locate the RUBBER WASHER over the SCREW and
thread the HEX NUT onto the SCREW to secure them. Hand tighten until snug.

4.

.

Thread the HEX NUTS onto the SCREWS. Locate the BACKPLATE inside of
the SHADE and match the holes on the SHADE SUPPORT STRAP with the
holes on the side of SHADE. Position the SCREWS with the HEX NUTS
through the holes from inside of the SHADE. And then locate the SIDE ARMS.
Make the holes on them over the STUDS on the side of the SHADE HOLDER
and the SCREWS extruding from the side of the SHADE. Secure them
together by threading LOCK BALLS onto the SCREWS and the STUDS. Hand
tighten until snug.

5.

:

Quoizel recommend 2 people for this step

Make the wiring connections

Using wire connectors(not supplied), connect the HOUSE GROUND WIRE
to the FIXTURE GROUND WIRE; connect the HOUSE WHITE WIRE to the
FIXTURE WHITE(or RIBBED) WIRE; connect the HOUSE BLACK(or RED)
WIRE to the FIXTURE BLACK(or SMOOTH) WIRE. Wrap each connection
with approved electrical tape.

6. Proceed to secure the BACKPLATE to the wall mounted outlet box by using

(2)OUTLET BOX SCREWS(not supplied). Prior to this, determine how many
METAL TABS will need to be removed from the backplate in order to align the
BACKPLATE with the mounting holes on the outlet box. To remove the METAL
TABS, use a flat head screw driver to apply pressure from the backside of the
BACKPLATE. Once the METAL TAB moves forward, remove with pliers.

7. Install bulb referring to fixture markings and/or labels for maximum wattage.

8. Restore the power to the installation point ON. Retain this sheet for future

reference.

IS DH8801
2007-02-22

-

6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com

,

.

.

.

METAL TAB

(2)OUTLET BOX SCREWS
(not supplied)

HEX NUT

HEX NUT

RUBBER
WASHER

OUTLET BOX

STUD

IF IN DOUBT ABOUT ELECTRICAL INSTALLATION,

CONSULT A LICENSED ELECTRICIAN!
