Quoizel TF9343BC Tiffany - Manual

Tools Required: None.
Bulb Recommended:
Estimated Assembly Time:
Preparation:
(2) Medium Base 100W Maximum, Alternate bulb (2) 23W CFL
20-30 minutes
Identify and inspect all parts before beginning installation. Check package content list and diagrams below to be sure all parts are
present. If any parts are missing or damaged, do not attempt to assemble, install, or operate the fixture. Contact customer service for replacement
parts.
Warnings and Cautions
1of1
Assembly Instruction Sheet #IS-TF9343BC
For Style TF9343BC
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
, .
. .
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
2014 QuoizelInc. July2014
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal. Do not subject
glass parts to any shock while in operation or shattering may result.
TF9343BC
NOTE: ALL DIMENSIONS
ARE ROUNDED UP TO
THE NEAREST 1/2
"
(2) 100W
Bulbs
(Not Supplied)
Medium
Base
PART NUMBER
M860BLA
REPLACEMENT PART
BALL
REQ. NO.
1
19343BCT BASE 2
2
1
2
4
Care of Tiffany Style Shade
A new tiffany lamp shade has an oil film applied to the shade that protects the tiffany shade from scratches during shipment. If the oil applied is
too heavy you can remove the excess oil film with a paper towel. Gently wipe away the excess oil.
For general cleaning of tiffany shades use a gentle lemon oil-based furniture polish applied to a soft cloth and wipe gently.
If a white powder appears on the soldered joints of the tiffany shade this is a normal oxidation process. Use a small amount of lemon oil or
mineral oil applied directly to oxidized areas and the soldered area will return to like new.
Finial
x 1
Shade
x 1
Flat Washer
x 1
Big
Knurled Nut
x 1 Small
Knurled Nut
x 1
Check Ring
x 1
Nipple with
Hex Nut
x 1
Spacer
Tube
x 1
Socket
Assembly
x 1
Rod
x 1
Rod with
Nipple
x 1
Base
x 1

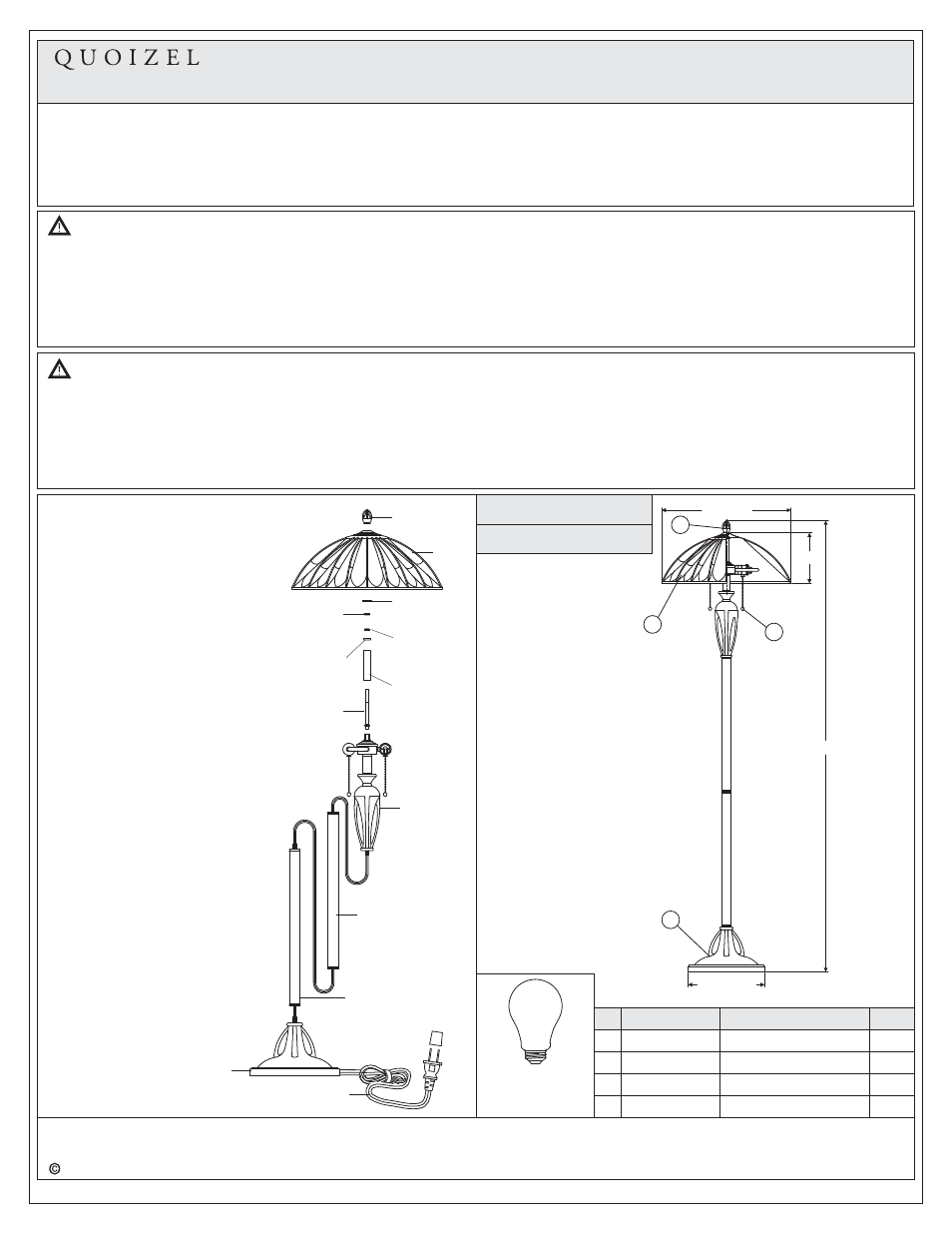

A. Thread Socket Assembly, Rod,
Rod with Nipple and Base
together as shown. Hand tighten
until snug.
B. Pull the cord from the Base as
you assemble the parts together
to remove the excess cord
between parts.
C. Thread have hex nut end of
Nipple with Hex Nut into Hex
Coupling on the top of Socket
Assembly. By using pliers,
thread the hex nut against the
hex coupling and hand tighten
until snug.
D. Place Spacer Tube and Check
Ring over the Nipple. Secure by
thread Small Knurled Nut onto
the Nipple, hand tighten until
snug.
E. Thread Big Knurled Nut onto
Nipple and adjust it to proper
location for rest components.
Place Flat Washer and Shade
over the Nipple. Secure by
threading Finial onto the Nipple,
hand tighten until snug.
F. This fixture uses standard bulb
with medium base . Maximum
100 watts. Insert bulb and screw
snugly into place.
Your fixture is now assembled
and ready to use. Enjoy!
Cord
C108FIR FINIAL 3
G6020SH SHADE 4
1
1
10.5” Dia.
18” Dia.
7”
62”
1
3
FINISH: BURNT CINNAMON
