Quoizel TF9320BB Tiffany User Manual
Warnings and cautions, Care of tiffany style shade

Tools Required: Flathead screwdriver, Phillips screwdriver, pliers, wire cutters, wire strippers, electrical tape, safety glasses.
Bulb Recommended:
Estimated Assembly Time:
Preparation:
(2) Medium Base 100W Maximum, Alternate bulb (2) 23W CFL
20-30 minutes
Identify and inspect all parts before beginning installation. Check package content list and diagrams below to be sure all parts are
present. If any parts are missing or damaged, do not attempt to assemble, install, or operate the fixture. Contact customer service for replacement
parts.
Warnings and Cautions
1of1
Assembly Instruction Sheet #IS-TF9320BB
For Style TF9320BB
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
,
.
.
.
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at
2014 QuoizelInc.
June2014
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal. Do not subject
glass parts to any shock while in operation or shattering may result.
Care of Tiffany Style Shade
A new tiffany lamp shade has an oil film applied to the shade that protects the tiffany shade from scratches during shipment. If the oil applied is
too heavy you can remove the excess oil film with a paper towel. Gently wipe away the excess oil.
For general cleaning of tiffany shades use a gentle lemon oil-based furniture polish applied to a soft cloth and wipe gently.
If a white powder appears on the soldered joints of the tiffany shade this is a normal oxidation process. Use a small amount of lemon oil or
mineral oil applied directly to oxidized areas and the soldered area will return to like new.

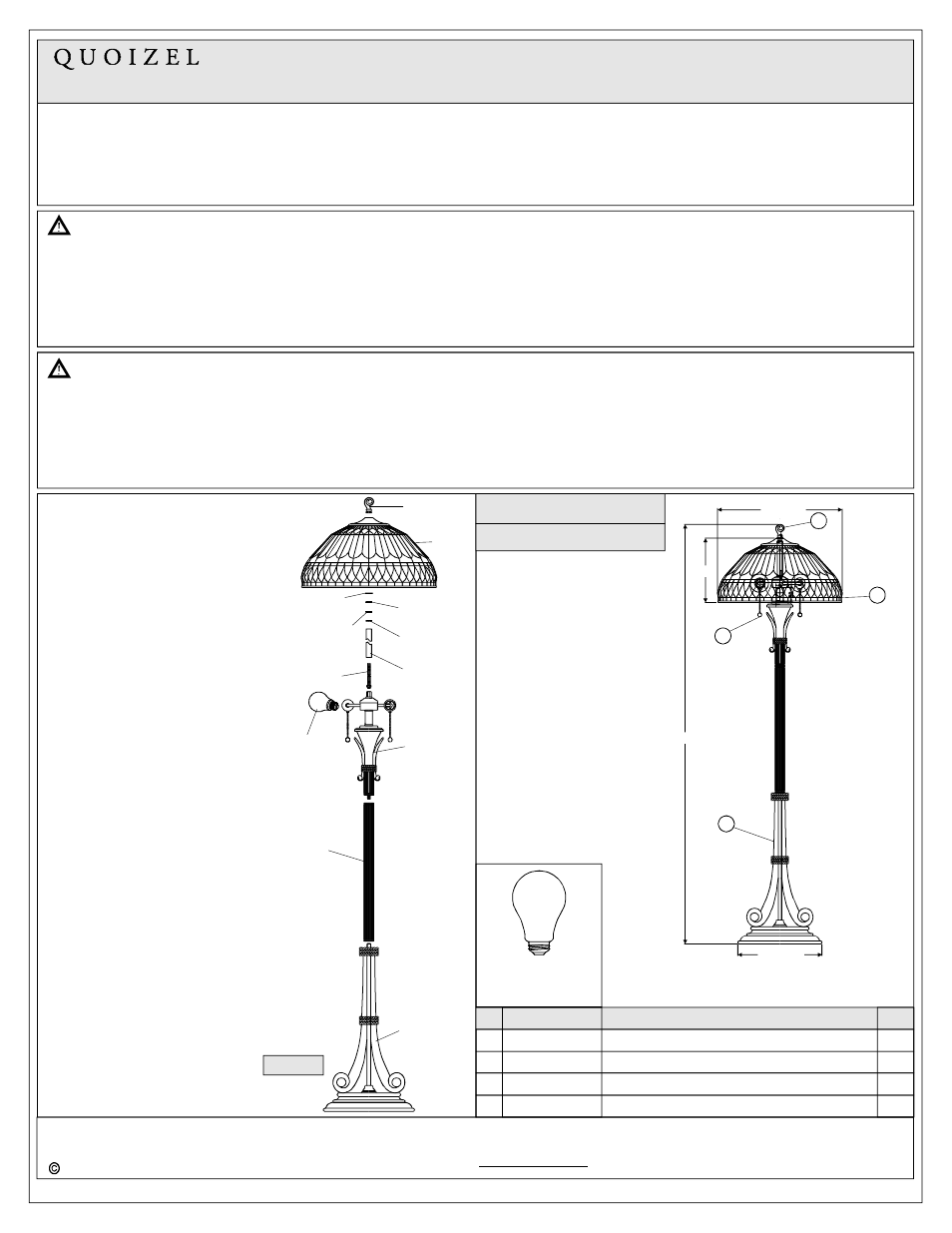

Assembly Instructions:
A. Thread the Socket Assembly , the
and the Base together as
shown. Hand tighten until snug.
B. Pull the cord from the Base as
you assemble the parts together
to remove the excess cord
between parts.
C. Thread have hex nut end of
Nipple into Hex Coupling on the
top of Socket Assembly. By using
pliers, thread the hex nut against
the hex coupling and hand
tighten until snug.
D. Place Spacer and Check Ring
over the Nipple. Secure them
with the Small Knurled Nut and
hand tighten until snug.
E. Thread Big Knurled Nut onto
Nipple and adjust it to proper
location for rest components.
F. Place the Flat Washer and the
Shade over the Nipple. Secure
them with the Finial. Hand tighten
until snug.
G. This fixture uses standard bulb
with medium base . Maximum
100 watts. Insert bulb and screw
snugly into place.
Your fixture is now assembled
and ready to use. Enjoy!
Rod
Finial
X 1
Shade
X 1
Figure 1
Bulb (not
included)
TF9320BB
PART NUMBER
NOTE: ALL DIMENSIONS ARE ROUNDED
UP TO THE NEAREST 1/2"
REPLACEMENT PART DESCRIPTION
NO.
(2) 100W
Bulbs
(Not Supplied)
Medium
Base
1
2
3
4
M 860BLA
19320BBT
C965FIR
G6998SH
BALL 5/8" DIA BRASS
BASE BRUSHED BULLION FLOOR LAMP
FINIAL ARC BRONZE
GLASS 18"D WEST END
REQ.
2
1
1
1
Big Knurled
Nut x 1
Check Ring
x 1
Spacer
x 1
Socket
Assembly
x 1
Small Knurled
Nut x 1
Base
x 1
Nipple with
Hex Nut x 1
Rod
x 1
FINISH: BRUSHED BULLION
60
”
9
”
18
”Dia.
12
”Dia.
2
1
3
4
Flat Washer
x 1
