Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
3of4
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
, .
. .
2013 QuoizelInc.
Assembly Instruction Sheet #IS-TF9152Z
For Style TF9152Z
October2013

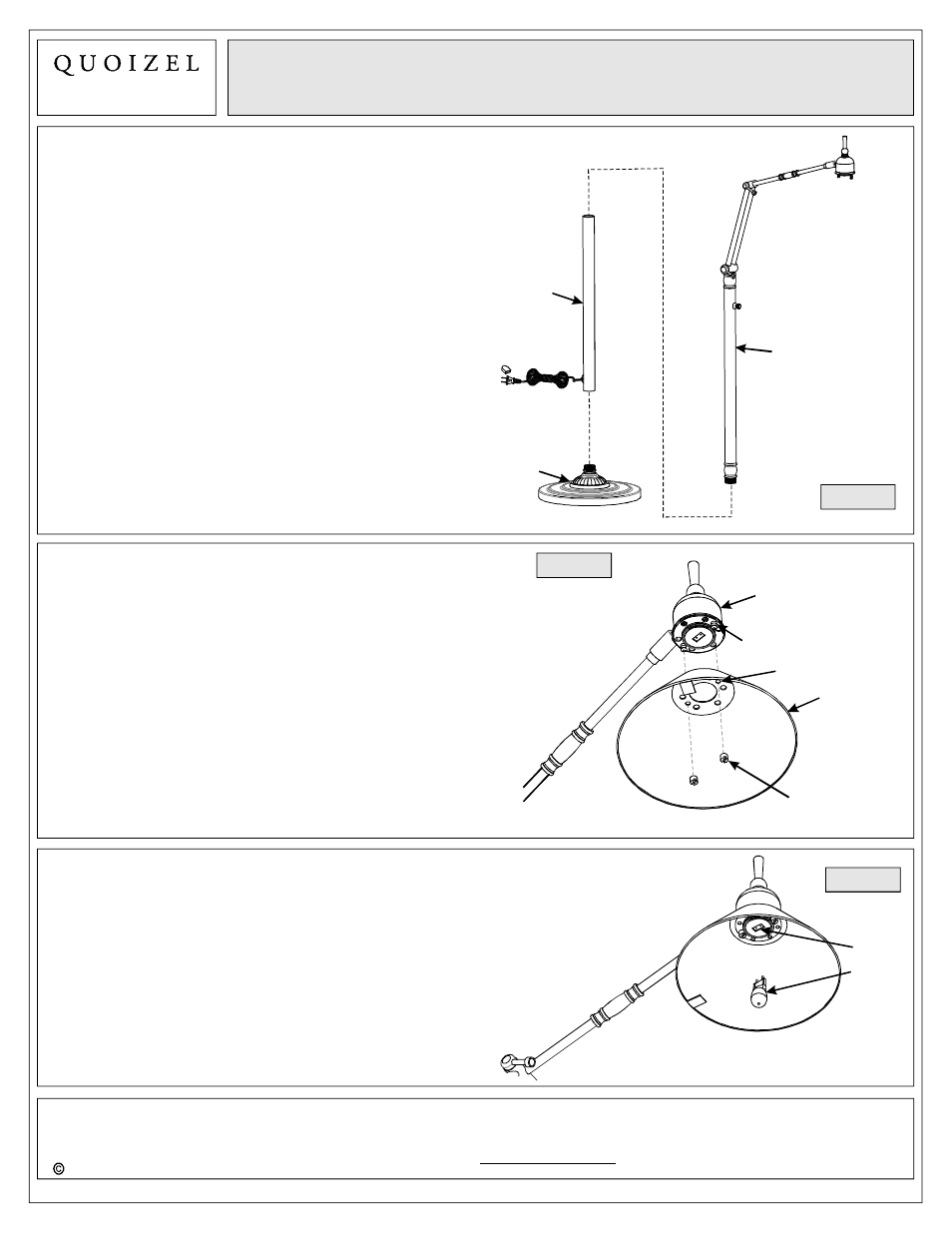

Figure 1
STEP 1 Assemble Rod and Socket
Assembly
-
A. Thread the Tube (B) and Socket Assembly (A) to the
Base (C) as shown. Hand tighten until snug.
Tube
Base
Socket Assembly
Figure 3
STEP 3 - Install Bulb
A. This fixture uses T3 Bi Pin bulb. Maximum 50 watts.
B. Insert bulb and push snugly into place.
Do not touch the bulb with bare hands use
a cloth or glove.
IMPORTANT:
Socket
Bulb
STEP 2 Install Shade -
A. Attach the Shade (D) to the Socket Assembly. Pass the
Bolts on the Socket Assembly through the Small Holes
on the bottom of the Shade (D). Secure by threading the
Lock Balls (E) onto the Bolts. Hand tighten until snug.
Figure 2
Socket Assembly
Shade
Lock Ball
Bolt
Small Hole
