Assembly Instruction Sheet #IS-TF1509FVB
For Style TF1509FVB
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
, .
. .
2012 QuoizelInc.

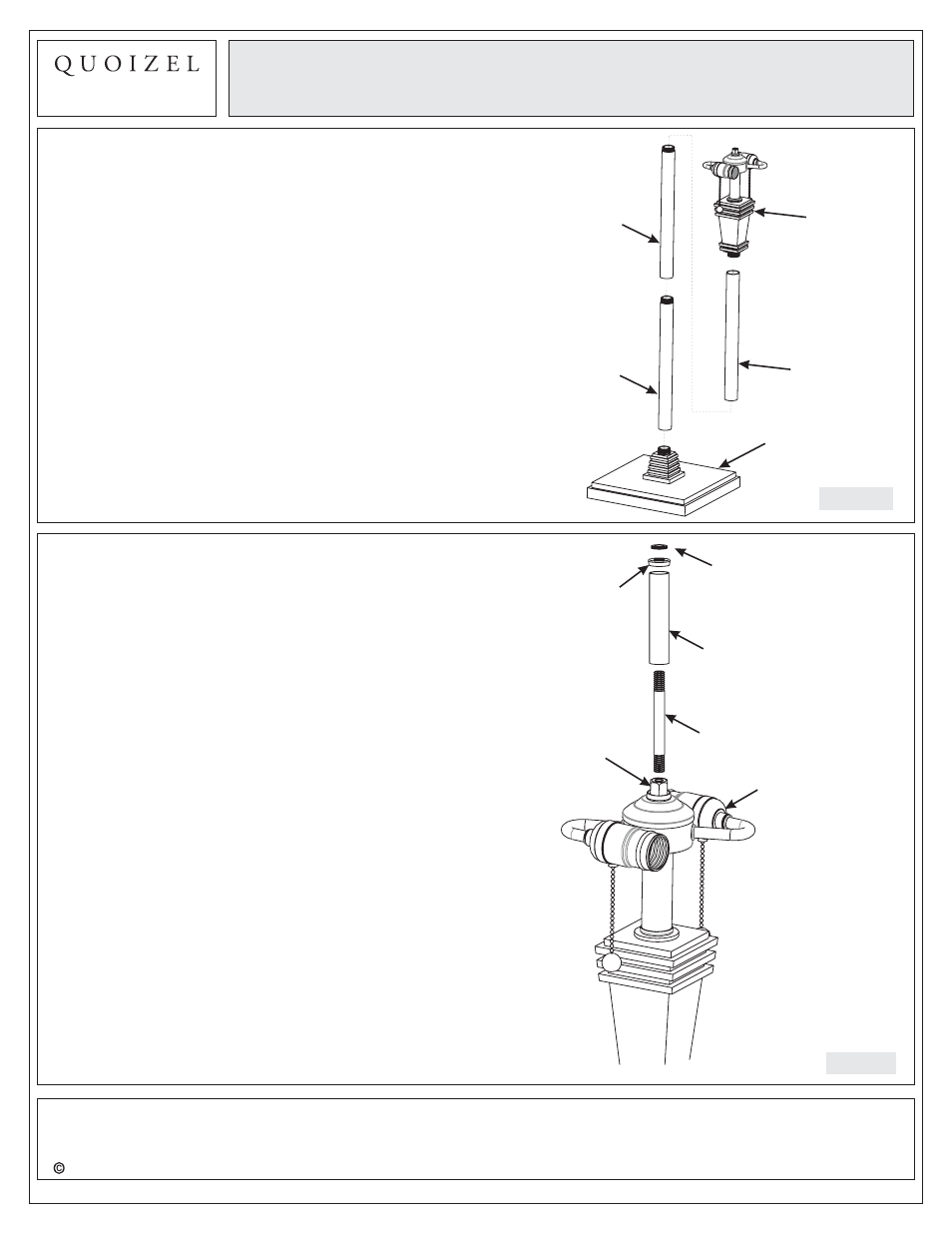

STEP 1 Assemble Rod and Socket
Assembly
-
A. Thread the Rod (J) and Rod with Connecter (K) to the
Base (L) as shown. Hand tighten until snug.
B. Thread the Socket Assembly (I) into the top end of Rod
(J). Hand tighten until snug.
Figure 1
Base
Rod
Socket
Assembly
Rod with
Connecter
Rod with
Connecter
Figure 2
STEP 2 attach Center Stem to Fixture Body
-
A. Thread one end of Center Stem (H) into Hex Coupling
on the top of Socket Assembly (I).
B. Please Tube (G) and Check Ring (F) over the Center
Stem (H). Secure by thread Small Knurled Nut (E) onto
the Center Stem (H), hand tighten until snug.
Socket
Assembly
Tube
Center Stem
Hex
Coupling
Check
Ring
Small Knurled Nut
