Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
3of4
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
, .
. .

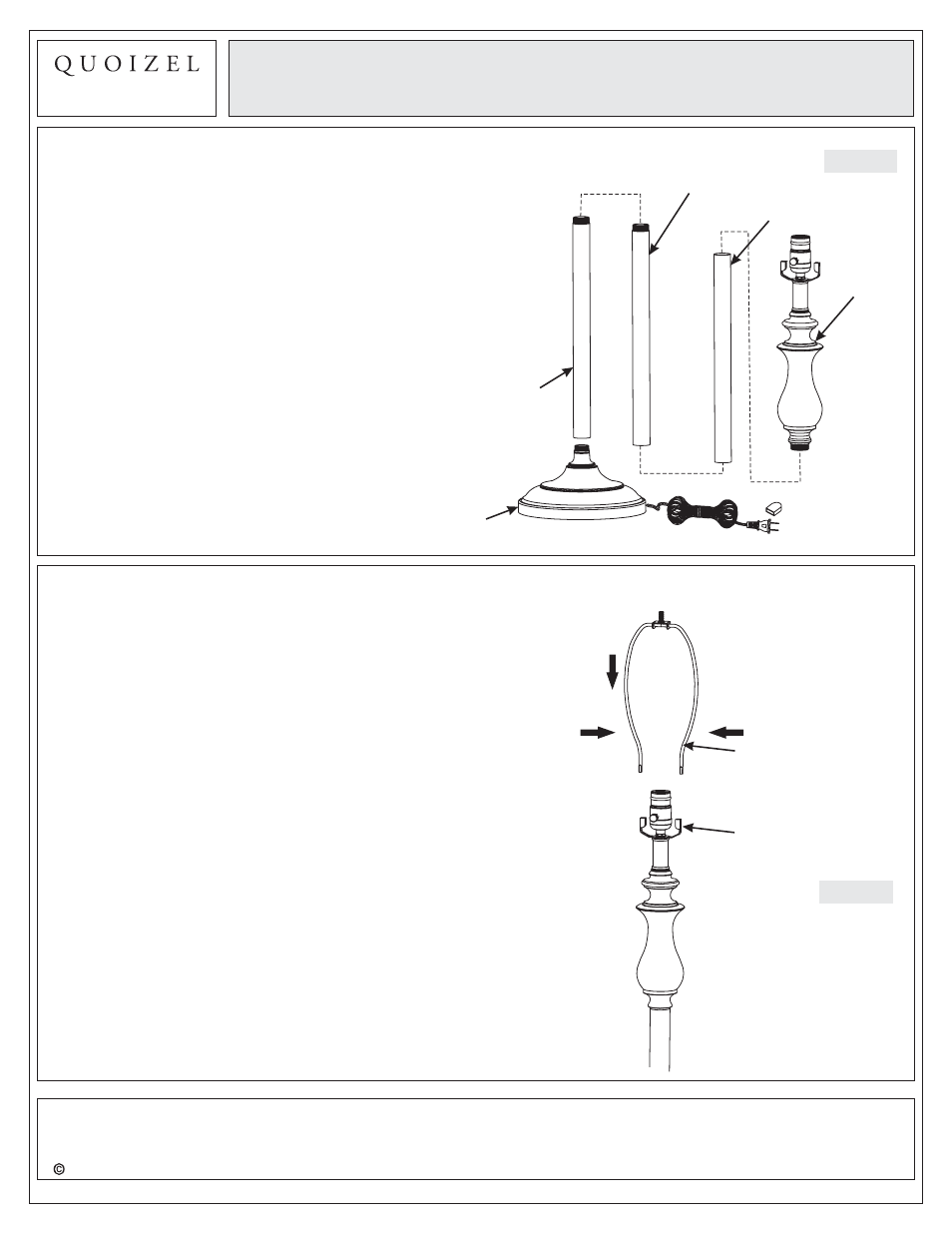

Figure 1
STEP 2
- Assemble Harp
A. Locate the Harp (A) by pressing the bottom ends of the
Harp (A) into the Harp Clips.
Figure 2
2013 QuoizelInc.
Harp Clip
Harp
STEP 1 Assemble Rod and Socket
Assembly
-
A. Thread the Rod (E) and Rod with Connecter (F) to the
Base (G) as shown. Hand tighten until snug.
B. Thread the Socket Assembly (B) into the top end of Rod
(E). Hand tighten until snug.
C. Pull the cord from the Base (G) as you assemble the
parts together to remove the excess cord between
parts.
Assembly Instruction Sheet #IS-Q1054FBN
For Style Q1054FBN
November2013
Rod with
Connecter
Base
Rod
Socket
Assembly
Rod with
Connecter
