Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
2011 QuoizelInc. September2011
3of4

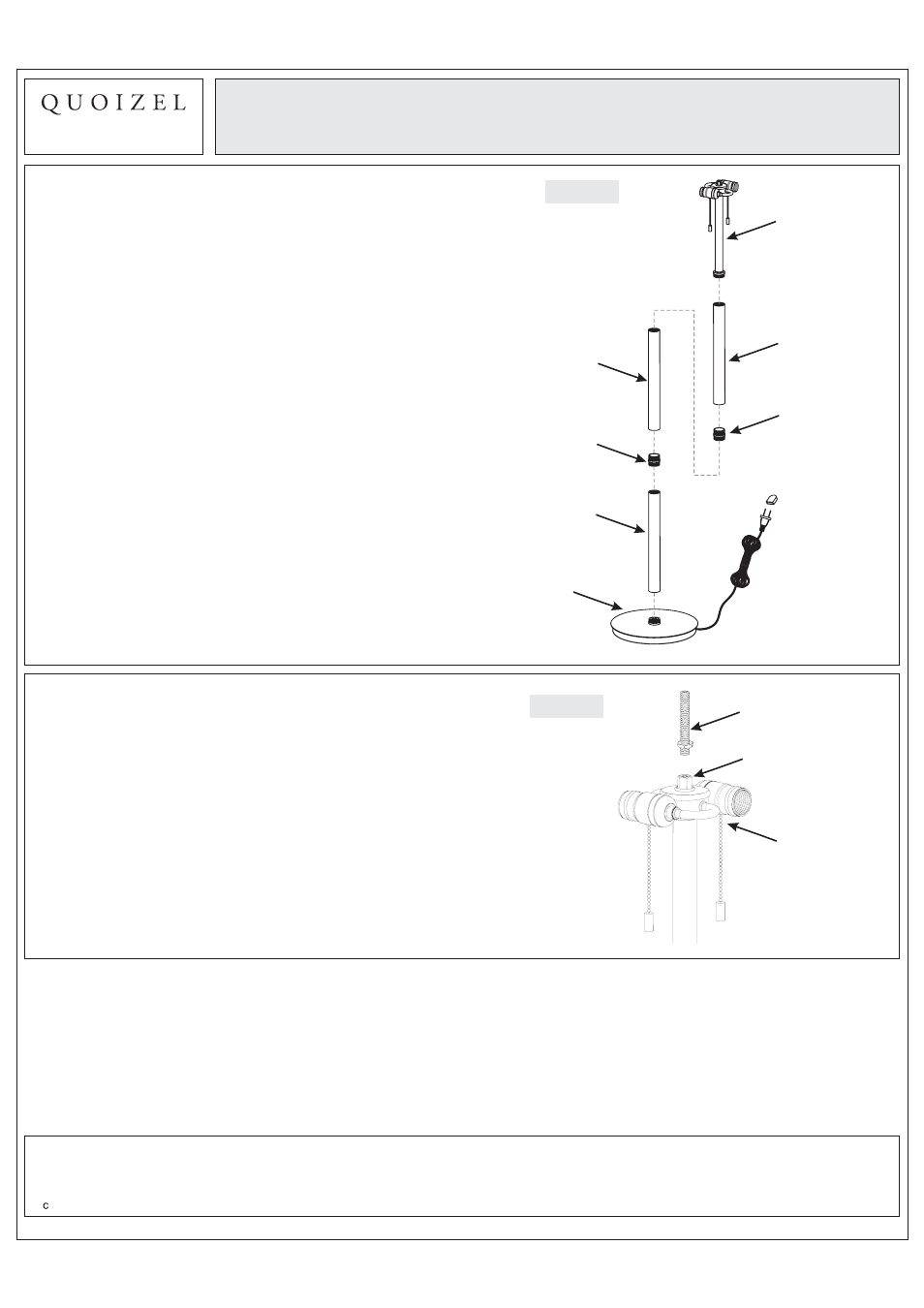

STEP 1
- Assemble Socket Assembly, Rods,
Connectors and Base
A. Thread the Socket Assembly, Rods, Connectors and
Base together as shown. Hand tighten until snug.
Figure 1
Assembly Instruction Sheet #IS-MC842FRC
For Style MC842FRC
Socket
Assembly
Rod
Connector
Rod
Rod
Connector
Base
STEP 2
- Attach Nipple with Hex Nut
A. Thread the Nipple with Hex Nut (G) into the Hex
Coupling on the top center of the Socket Assembly (A).
Using pliers, thread the Hex Nut against the Hex
Coupling and hand tighten until snug.
Figure 2 Nipple with
Hex Nut
Hex Coupling
Socket
Assembly
