Quoizel TF878F Kami User Manual
Warnings and cautions, Care of tiffany style shade

Tools Required: Flathead screwdriver, Phillips screwdriver, pliers, wire cutters, wire strippers, electrical tape, safety glasses.
Bulb Recommended:
Estimated Assembly Time:
Preparation:
(2) Medium Base 100W Maximum, Alternate bulb (2) 23W CFL
20-30 minutes
Identify and inspect all parts before beginning installation. Check package content list and diagrams below to be sure all parts are
present. If any parts are missing or damaged, do not attempt to assemble, install, or operate the fixture. Contact customer service for replacement
parts.
Warnings and Cautions
1of1
Assembly Instruction Sheet #IS-TF878F
For Style TF878F
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
,
.
.
.
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
2014 QuoizelInc.
April2014
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal. Do not subject
glass parts to any shock while in operation or shattering may result.
Care of Tiffany Style Shade
A new tiffany lamp shade has an oil film applied to the shade that protects the tiffany shade from scratches during shipment. If the oil applied is
too heavy you can remove the excess oil film with a paper towel. Gently wipe away the excess oil.
For general cleaning of tiffany shades use a gentle lemon oil-based furniture polish applied to a soft cloth and wipe gently.
If a white powder appears on the soldered joints of the tiffany shade this is a normal oxidation process. Use a small amount of lemon oil or
mineral oil applied directly to oxidized areas and the soldered area will return to like new.

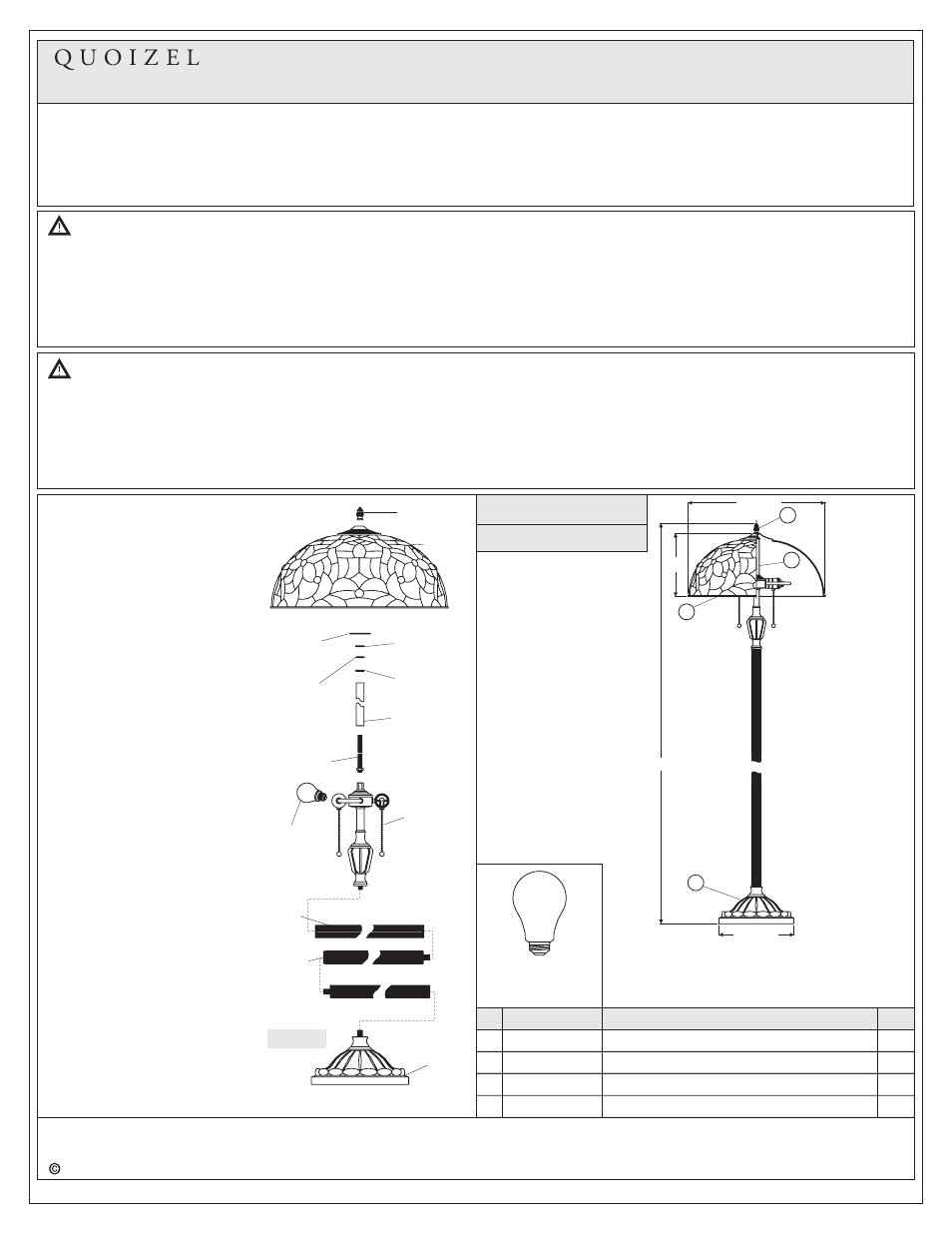

STEP 1
Install Nipple with HEX
Nut, Shade and Bulb
-
A. Thread the Socket Assembly ,
the
, the
and
the Base together as shown.
Hand tighten until snug.
B. Pull the cord from the Base as
you assemble the parts together
to remove the excess cord
between parts.
C. Thread have hex nut end of
Nipple with Hex Nut into Hex
Coupling on the top of Socket
Assembly .
D. Place Spacer and Check Ring
over the Nipple. Secure by
thread Small Knurled Nut onto
the Nipple, hand tighten until
snug.
E. Thread Big Knurled Nut onto
Nipple. Hand tighten until snug.
F. Place the Flat Washer and the
Shade over the Nipple. Adjust
the Big Knurled Nut to proper
location for the Flat Washer, the
Shade and Finial. secure by
thread Finial onto the Nipple,
hand tighten until snug.
G. This fixture uses standard bulb
with medium base . Maximum
100 watts. Insert bulb and screw
snugly into place.
Your fixture is now assembled
and ready to use. Enjoy!
Threaded Rods
Rod
Finial
X 1
Shade
X 1
Figure 1
Bulb (not
included)
TF878F
PART NUMBER
NOTE: ALL DIMENSIONS ARE ROUNDED
UP TO THE NEAREST 1/2
"
REPLACEMENT PART DESCRIPTION
NO.
(2) 100W
Bulbs
(Not Supplied)
Medium
Base
1
2
3
4
1878FTF
M2364FIVB
M2402KIT
G2524SH
BASE FOR TF878F
FINIAL VINTAGE BRONZE 0.75"D X 1.40"H
KIT SHADE VINTAGE BRONZE FOR TF878F
SHADE
18"D FOR TF878F
TIFFANY
REQ.
1
1
1
1
1
Flat
Washer
x 1
Big Knurled
Nut x 1
Check Ring
Spacer
x 1
Socket
Assembly
x 1
Small Knurled
1 x Nut
Base
x 1
Nipple with
Hex Nut x 1
4
Threaded
Rod
x 2
Rod
x 1
FINISH: VINTAGE BRONZE
62”
18”Dia.
8.5”
10”Dia.
2
3
