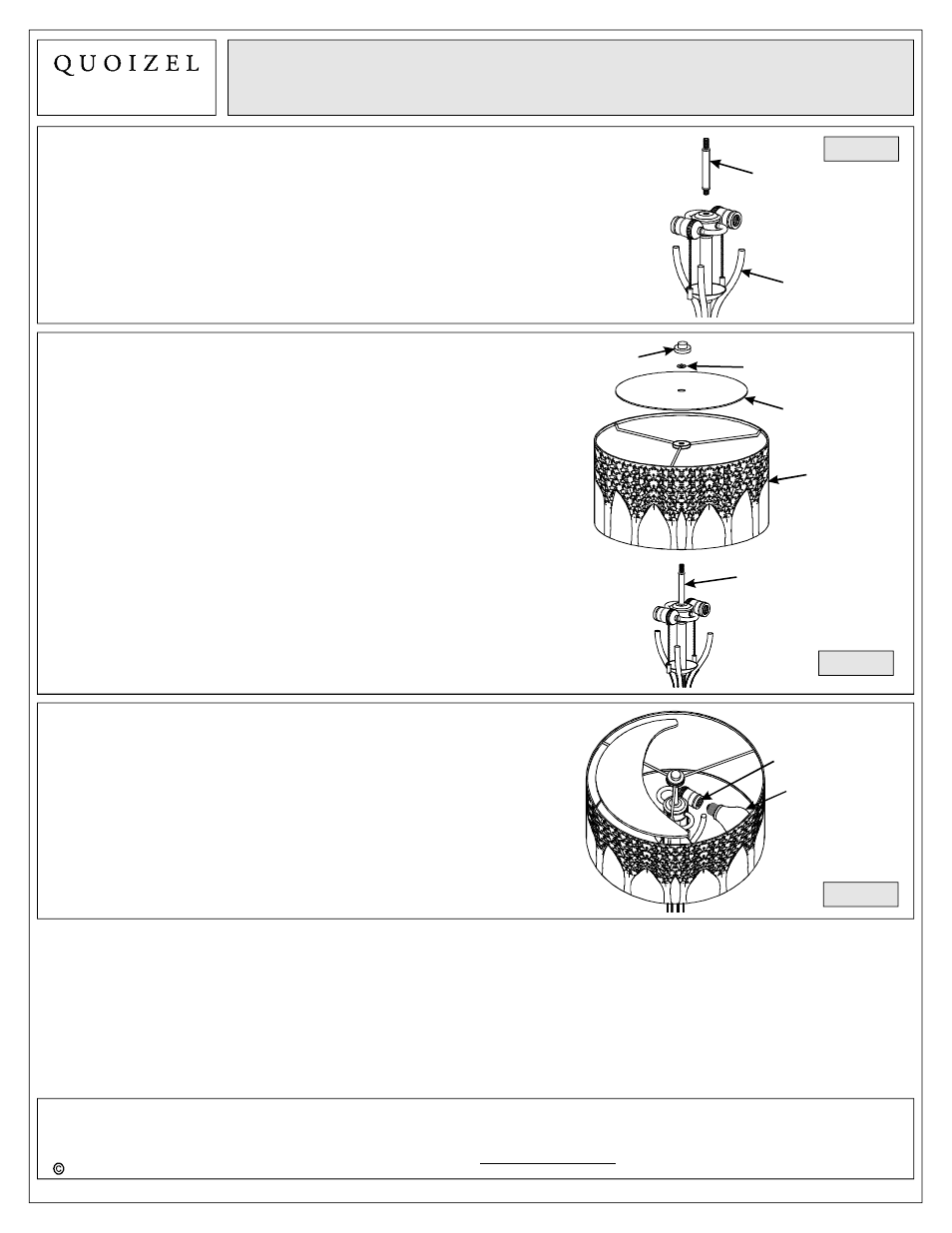

Assembly Instruction Sheet #IS-MC1691TIB
For Style MC1691TIB
STEP 1 - Install Stem
A. Thread the short nipple end of Stem (E) into the mounting
hole on the top center of the Base (B). Hand tighten until
snug.
Figure 1
Stem
STEP 2 Assemble Shade -
A. Place the Shade (A), the Diffuser (F) and the Rubber
Washer (D) over the Stem (E) as shown. Secure by
threading the Finial (C) onto the Stem (E). Hand tighten
until snug.
Figure 2
Stem
Shade
Finial
November2013
Base
STEP 3 Install Bulb -
A. This fixture uses standard bulbs with medium screw
bases. Maximum 60 watts.
B. Insert bulb and screw snugly into place.
Your fixture is now assembled and ready to use.
Enjoy!
Figure 3
Socket
Bulb
Washer
Diffuser
