Quoizel MC1196T Mica - Manual (Page 3)

Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
2014 QuoizelInc.
3of4
Assembly Instruction Sheet #IS-MC1196T
For Style MC1196T
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
, .
. .

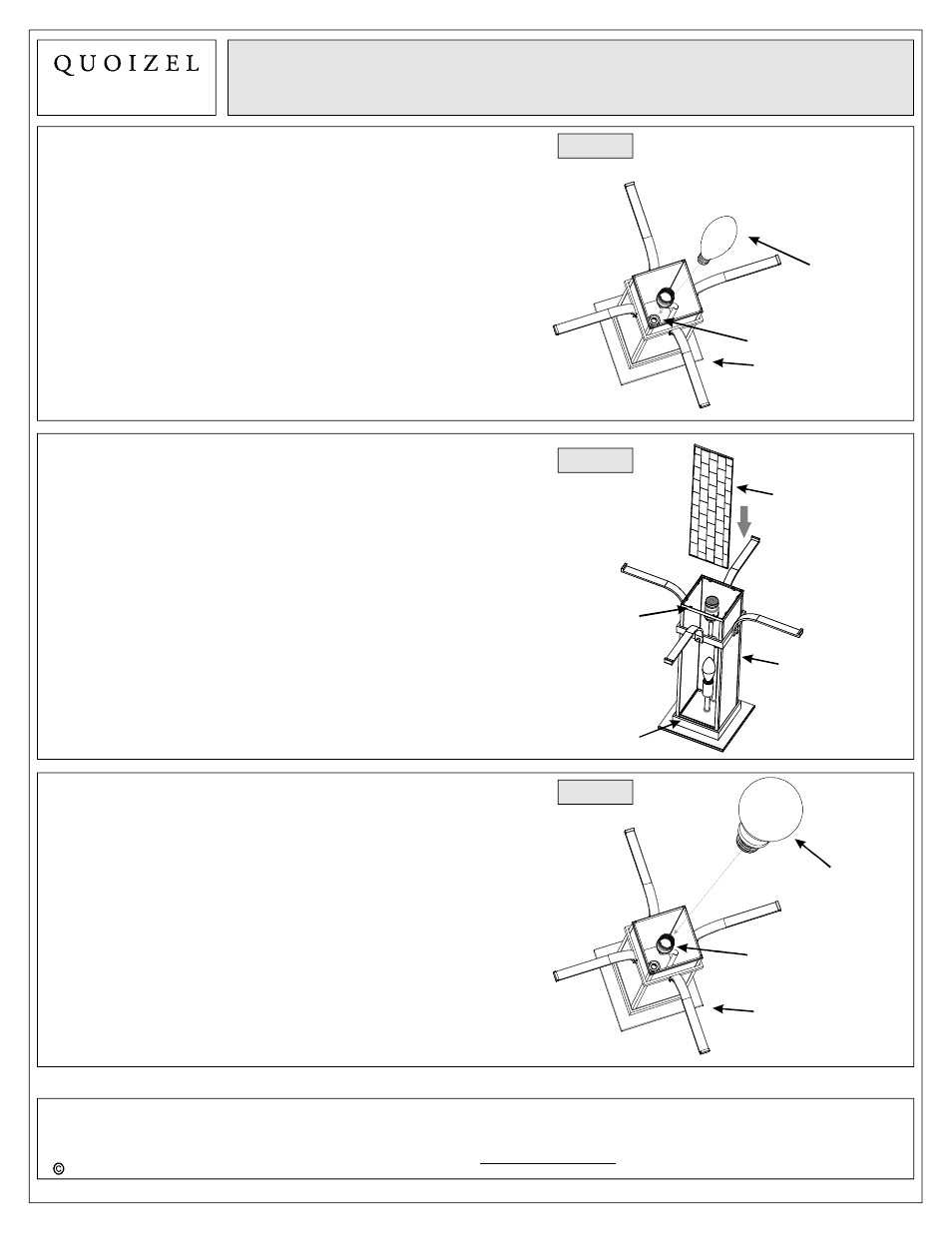

STEP 1 - Install Bulb
A. This fixture uses C7 Candelabra bulb with screw base
.Maximum 15 watts .
B. Insert bulb and screw snugly into place.
Figure 1
Base
Socket
C7 Bulb
STEP 2 - Attach panel to Base
A. Insert Panels C into the Slot in the bottom of the Base
B then fold the Tabs in the top of the Base B to
secure the Panels C .
( )
( ) ( )
( )
Figure 1
Panel
Base
Slot
Tab
STEP 3 - Install Bulb
A. This fixture uses standard bulb with standard screw
base . Maximum 60 watts.
B. Insert bulb and screw snugly into place.
Figure 3
Bulb B
Base
Socket B
March2014
