Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
2014 QuoizelInc.

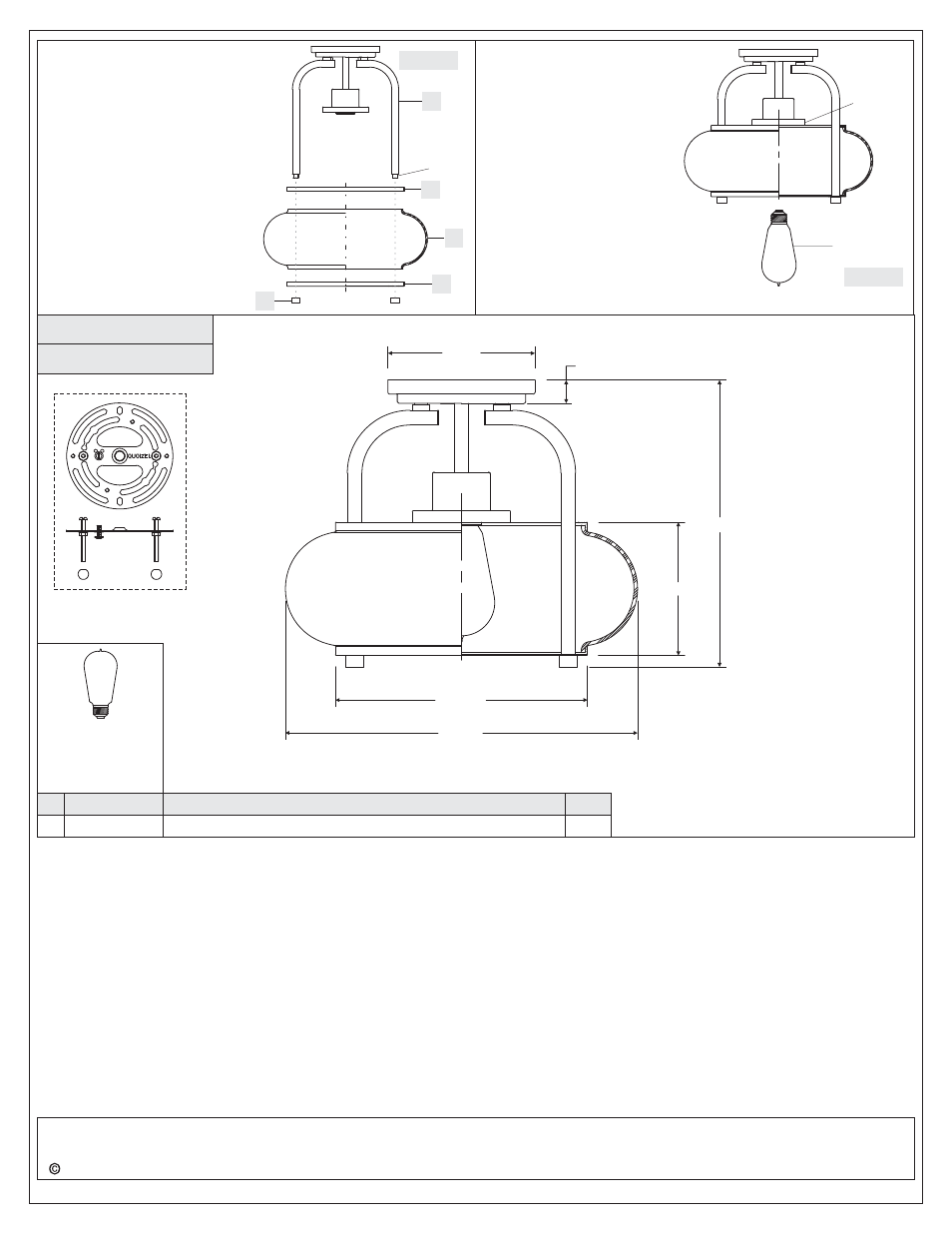

STEP 5 Install Bulb -
A. This fixture uses
standard bulb 60W
(supplied) with a
standard screw base.
Maximum 100 watts.
B. Insert bulb and screw
properly into place.
Your fixture is now
assembled and ready to
use. Enjoy!
Bulb
Socket
Figure 5
TRG1712OZ
PART NUMBER
NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/2 "
REPLACEMENT PART DESCRIPTION REQ. NO.
1
FINISH: OLD BRONZE
March2014
(1)Medium Base
Decorative
Filament 60W
bulbs (provided),
Maximum 100W.
STEP 4 Install Shade -
A. Place the Top Shade Holder
(B), Shade (C), and Bottom
Shade Holder (D)over the
Nipple on the Fixture Body (A),
secure by threading Lock Ball
(E) into the Nipple, hand
tighten until sung.
Figure 4
A
B
C
D
E
8.5”Dia.
12”Dia.
5”
10”
5”Dia.
1”
Nipple
