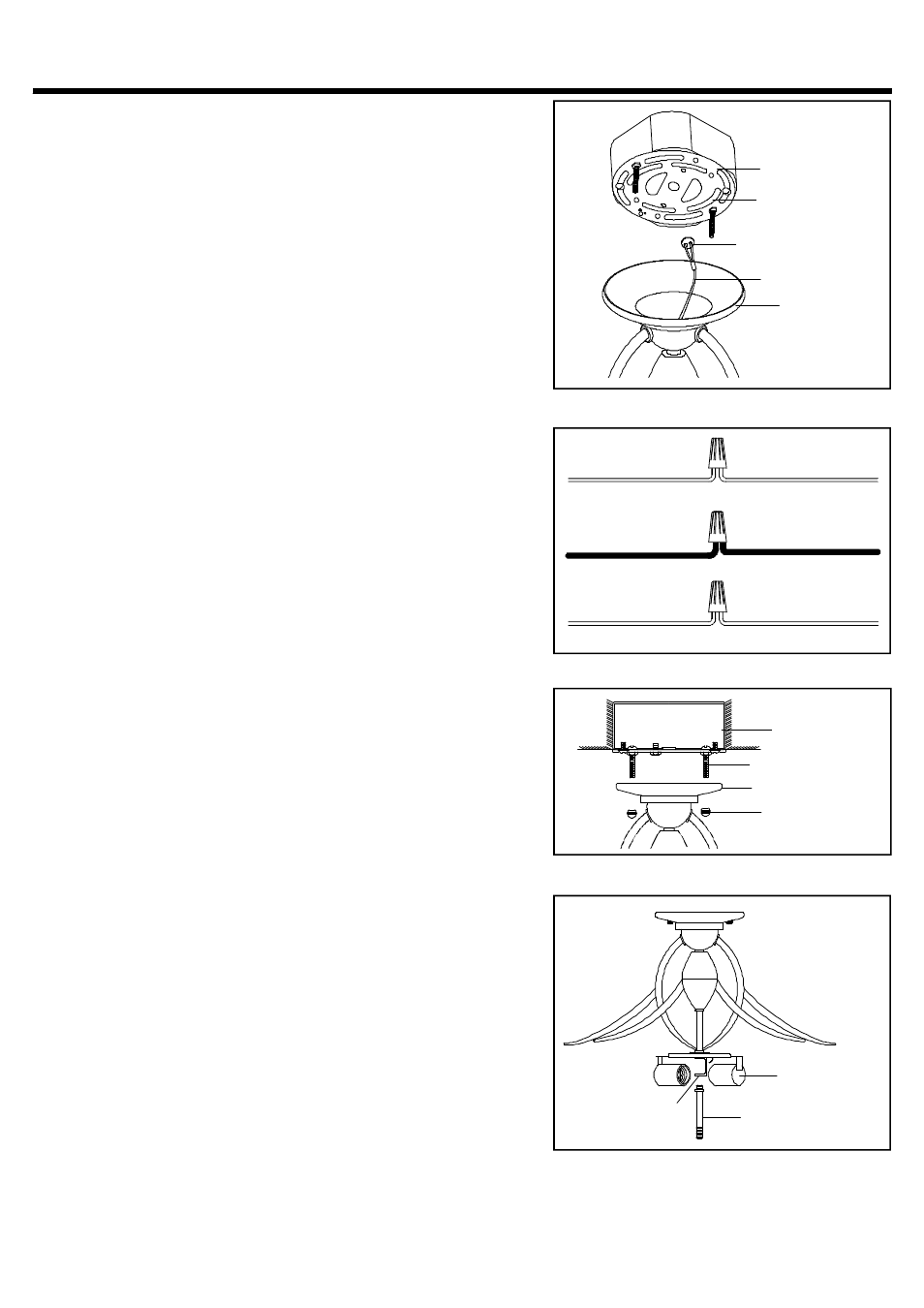

STEP 2 :
a Locate the Fixture Canopy onto the Crossbar and slip the
Button Stop on the end of Lanyard into the Slot on the
Crossbar as shown.
.
STEP 5:
a Thread the beaded end of the Center Stem into the
Coupling underside of the Socket Cluster. Hand tighten
until snug.
.
INSTALLATION INSTRUCTIONS
STYLE NUMBER TF1041EP :
Fixture Canopy
Button Stop
Crossbar
Slot
Lanyard
2 OF 3
WHITE OR RIBBED
BLACK OR RED WIRE ( )
FROM HOUSE
GROUND WIRE GROUND WIRE
FROM HOUSE FROM FIXTURE
WHITE OR RIBBED
FROM FIXTURE FROM HOUSE
FROM FIXTURE
BLACK OR SMOOTH
STEP 3 :
* ( )
.
.
. ( )
( )
. ( )
( ).
.
.
Use Wire Connectors not supplied to connect the
wires
a Connect the House Ground Wire to the Fixture Ground
Wire.
b Connect the House White or Ribbed Wire to the
Fixture Supply Wire White or Ribbed Side .
c Connect the House Black or Red Wire to the Fixture
Supply Wire Black or Smooth Side
d Wrap each connection with approved electrical tape and
carefully stuff all of the connected wires into the Outlet Box
Mounting Screw
Ceiling Canopy
Mounting Ball
Socket Cluster
Center Stem
STEP 4 :
.
a Place the Ceiling Canopy onto Outlet Box aligning 2
holes in the Ceiling Canopy with 2 Mounting screws
threaded on the Crossbar and secure it against wall with
Mounting Balls
.
Outlet Box
Coupling
