Quoizel TF1040IB Tiffany User Manual

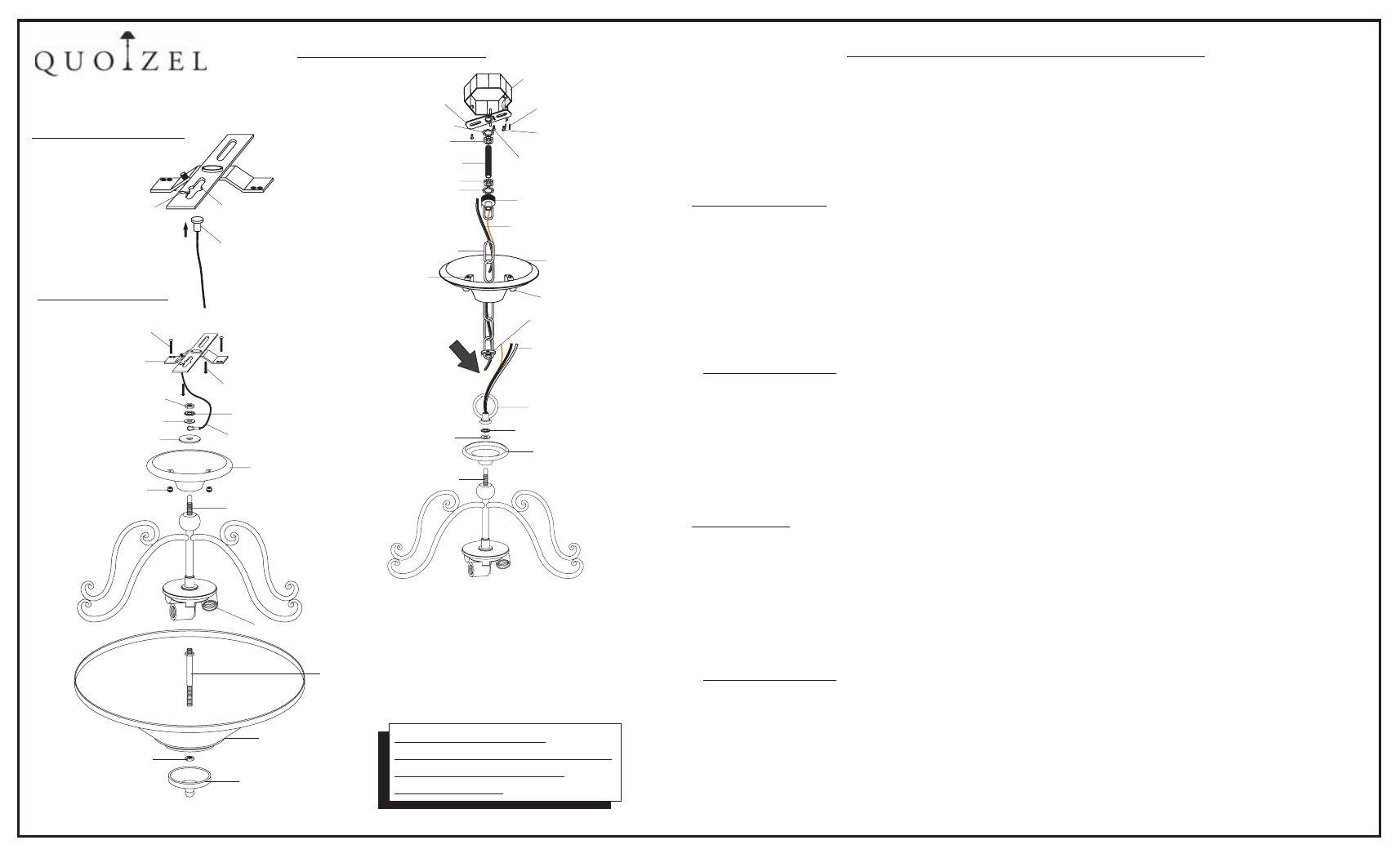

Chain-hung mounting, Direct mounting, Safety cable detail

OUTLET BOX
HOUSE SUPPLY and
GROUND WIRES
OUTLET BOX SCREWS
not supplied
(
)
GREEN GROUND SCREW
CROSSBAR
SHAKE PROOF WASHER A
LOCK NUT A
NIPPLE
LOCK NUT B
SHAKE PROOF WASHER B
CANOPY CHAIN LOOP
FIXTURE SUPPLY
and GROUND WIRE
FIXTURE CHAIN
CANOPY LOCK RING
FIXTURE SUPPLY
and GROUND WIRE
FIXTURE LOOP
Chain-Hung Mounting
( )
2 MOUNTING BALLS
LARGE CANOPY
( )
2 PAN HEAD
(2)MOUNTING
SCREWS
SWIVEL
CROSSBAR
(2)OUTLET BOX
SCREWS(not supplied)
HEX NUT
PLAIN WASHER
SHAKE PROOF WASHER
SHAKE PROOF WASHER
SAFETY CABLE
SEAT RING
(2)MOUNTING
BALLS
LARGE CANOPY
NIPPLE
SOCKET CLUSTER
NIPPLE with
HEX NUT
HEX NUT
SHADE
FINIAL
HOLE A
HOLE B
SAFETY CABLE HEAD
Direct Mounting
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
,
.
.
.
Safety Cable Detail
SMALL CANOPY
PLAIN WASHER
NIPPLE
ASSEMBLY/INSTALLATION INSTRUCTIONS
1.Before beginning the installation, carefully unpack and identify all parts, referring to the illustrations.
2.Turn the power to the installation point OFF at circuit breaker.
3.Locate NIPPLE with HEX NUT. Thread top end of NIPPLE into coupling underside of SOCKET CLUSTER and tighten
until snug. Use plier, thread HEX NUT against coupling and tighten until snug.
4.Position SHADE over end of NIPPLE and secure by threading HEX NUT onto the end of NIPPLE. Tighten until snug.
Proceed to thread FINIAL onto the end of NIPPLE and tighten until snug.
5.Determine hanging method [chain or direct]:
:
a) Locate SMALL CANOPY, PLAIN WASHER and SHAKE PROOF WASHER over the NIPPLE on the top end of fixture.
Thread FIXTURE LOOP onto the NIPPLE and hand tighten until snug to secure them.
b)Fasten the CROSSBAR to the OUTLET BOX with (2)OUTLET BOX SCREWS(not supplied). Proceed to thread LOCK
NUT A and SHAKE PROOF WASHER A onto the end of NIPPLE. Thread NIPPLE into the center of CROSSBAR. Locate
the LOCK NUT B onto the bottom end of NIPPLE. Tighten LOCK NUT A against CROSSBAR with plier until snug.
c)Locate the FIXTURE CHAIN and determine desired hanging height of fixture. Adjust chain by removing links if needed.
Please note that depending on chain material thickness, you might be required to use chain pliers to spread links open.
Proceed to attach one end of chain to FIXTURE LOOP, attached to top of fixture. Pass the fixture wires through FIXTURE
CHAIN alternating links. Proceed to pass the fixture wires through the following components in this order: (1)CANOPY
LOCK RING; (2)CEILING CANOPY.
d)
:(2 people recommended for the remaining steps)
Position the fixture under the ceiling mounted outlet box. Pass SHAKE PROOF WASHER B over the NIPPLE. Thread
CANOPY CHAIN LOOP onto the NIPPLE. Thread LOCK NUT B down the NIPPLE, against the CANOPY CHAIN LOOP
and snug with plier. Pass the wires through the NIPPLE. Take up wire slack and trim wires so that approx. 6” will remain
inside outlet box. Use wire connectors(not supplied) attach the FIXTURE GROUND WIRE to the FIXTURE GROUND
WIRE; connect the HOUSE WHITE WIRE to the FIXTURE WHITE (or RIBBED) WIRES; connect the HOUSE BLACK
(or RED) WIRE to the FIXTURE BLACK (or SMOOTH) SIDE. Wrap each connection with approved electrical tape.
e)With the proper connection made, proceed to push the CEILING CANOPY upward over the OUTLET BOX. Be sure that
all wires are carefully tucked into the OUTLET BOX cavity. Secure CANOPY against ceiling by threading CANOPY
LOCK RING onto the CANOPY LOOP. Hand tighten until snug.
:
a)Remove the SMALL CANOPY and use the LARGE CANOPY. Position LARGE CANOPY, SEAT RING, SAFETY CABLE,
PLAIN WASHER and SHAKE PROOF WASHER over the NIPPLE on the top end of fixture. Secure them by threading
HEX NUT onto the NIPPLE. Hand tighten until snug.
b)Locate (2)MOUNTING SCREWS and thread them into the back of SWIVEL CROSSBAR, make sure that they match
the holes on the LARGE CANOPY. Use (2)OUTLET BOX SCREWS(not supplied), fasten the SWIVEL CROSSBAR
to the OUTLET BOX.
c)Refer to
, make the SAFETY CABLE HEAD over HOLE A and guide wires into the HOLE B.
The base of SAFETY CABLE HEAD will lock into round end of HOLE B. This cable will assist in holding up the fixture
while you make the wire connections.
d)
:
e)Carefully tuck all of the wiring up into the outlet box and fit the LARGE CANOPY over the MOUNTING SCREWS. Secure
the LARGE CANOPY to the ceiling with (2)MOUNTING BALLS, making sure that the balls are fully threaded onto the
MOUNTING SCREWS before tightening.
6. Install bulbs referring to fixture markings and/or labels for maximum wattage.
7.Reture the power to the installation point ON. Retain this sheet for future reference.
Chain-Hung Mounting
Direct Mounting
Make the connections
Make the connections
SAFETY CABLE DETAIL
Use wire connectors(not supplied) attach the FIXTURE GROUND WIRE to the FIXTURE
GROUND WIRE; connect the HOUSE WHITE WIRE to the FIXTURE WHITE (or RIBBED) WIRES; connect the HOUSE
BLACK (or RED) WIRE to the FIXTURE BLACK (or SMOOTH) SIDE. Wrap each connection with approved electrical
tape.
IF IN DOUBT ABOUT
ELECTRICAL INSTALLATION,
CONSULT A LICENSED
ELECTRICIAN!
IS-TF1040
Revised 2006-12-20
