Quoizel TY1721AN Taylor - Manual (Page 3)

STYLE NUMBER: TY1721AN, TY1721WT
INSTALLATION INSTRUCTIONS

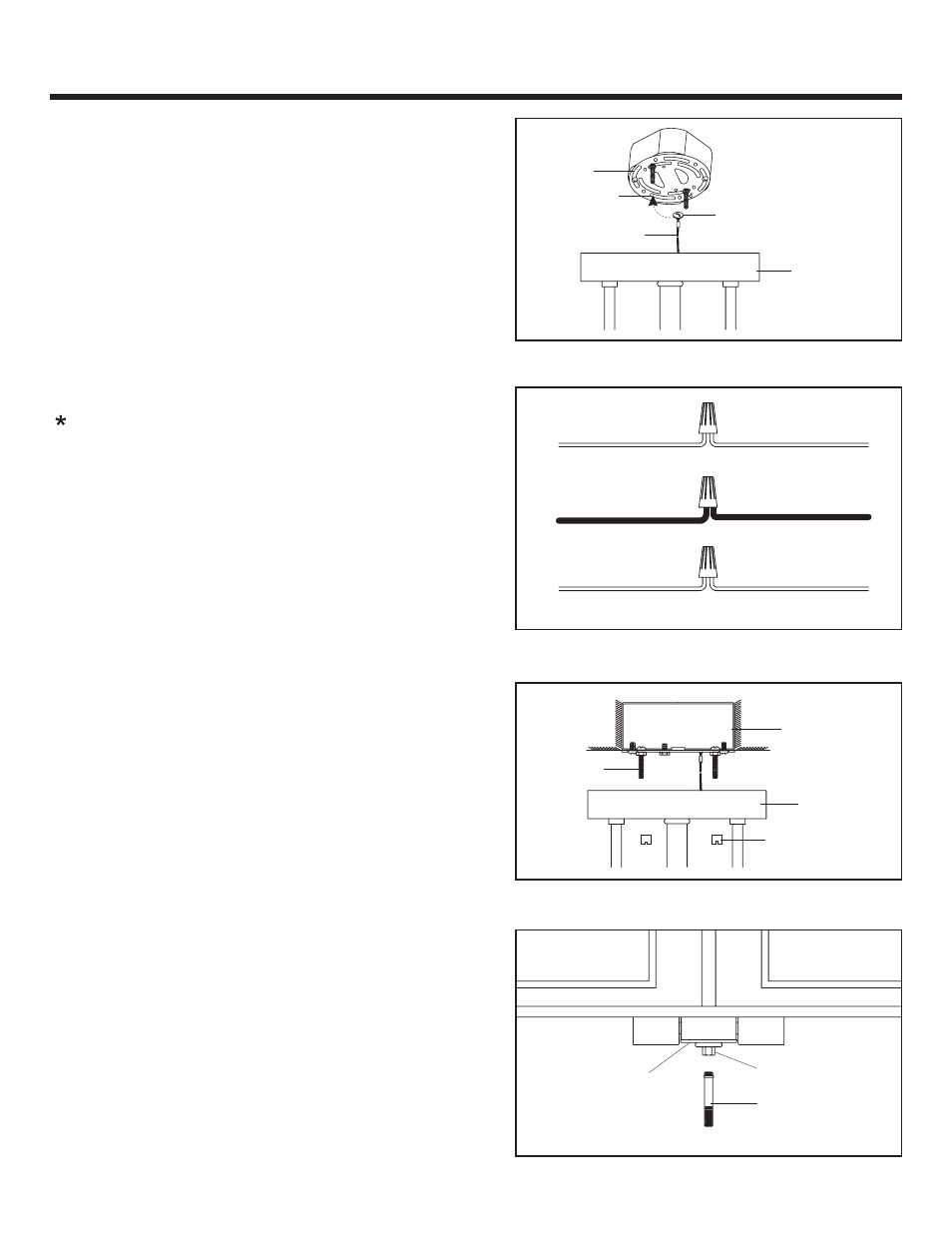

STEP 3:
a. Locate the Ceiling Canopy onto the Crossbar and slip
the Button Stop on the end of Lanyard into the Slot on
the Crossbar as shown.
Slot
Lanyard
Ceiling Canopy
Crossbar
Button Stop
STEP 4:
a. Connect the House Ground Wire to the Fixture Ground
Wire.
b. Connect the House White (or Ribbed) Wire to the
Fixture Supply Wire (Black or Smooth Side).
c. Connect the House Black (or Red) Wire to the Fixture
Supply Wire (Black or Smooth Side).
d. Wrap each connection with approved electrical tape
and carefully stuff all of the connected wires into the
Outlet Box.
WHITE OR RIBBED
BLACK (OR RED) WIRE
GROUND WIRE
WHITE OR RIBBED
BLACK OR SMOOTH
GROUND WIRE
FROM HOUSE
FROM HOUSE
FROM HOUSE
FROM FIXTURE
FROM FIXTURE
FROM FIXTURE
Use Wire Connectors (not supplied) to connect the
wires.
3 OF 4
STEP 5:
a. Place the Ceiling Canopy over the Mounting Screws
and secure with the Mounting Balls. Hand-tighten until
snug.
Mounting
Screw
Ceiling
Canopy
Outlet Box
Mounting Ball
STEP 6:
a. Screw the beaded end of the Center Stem into the Hex
Coupling underside of the Junction Box. Hand-tighten
until snug.
Junction Box
Center Stem
Hex Coupling
