INSTALLATION INSTRUCTIONS
2 OF 3

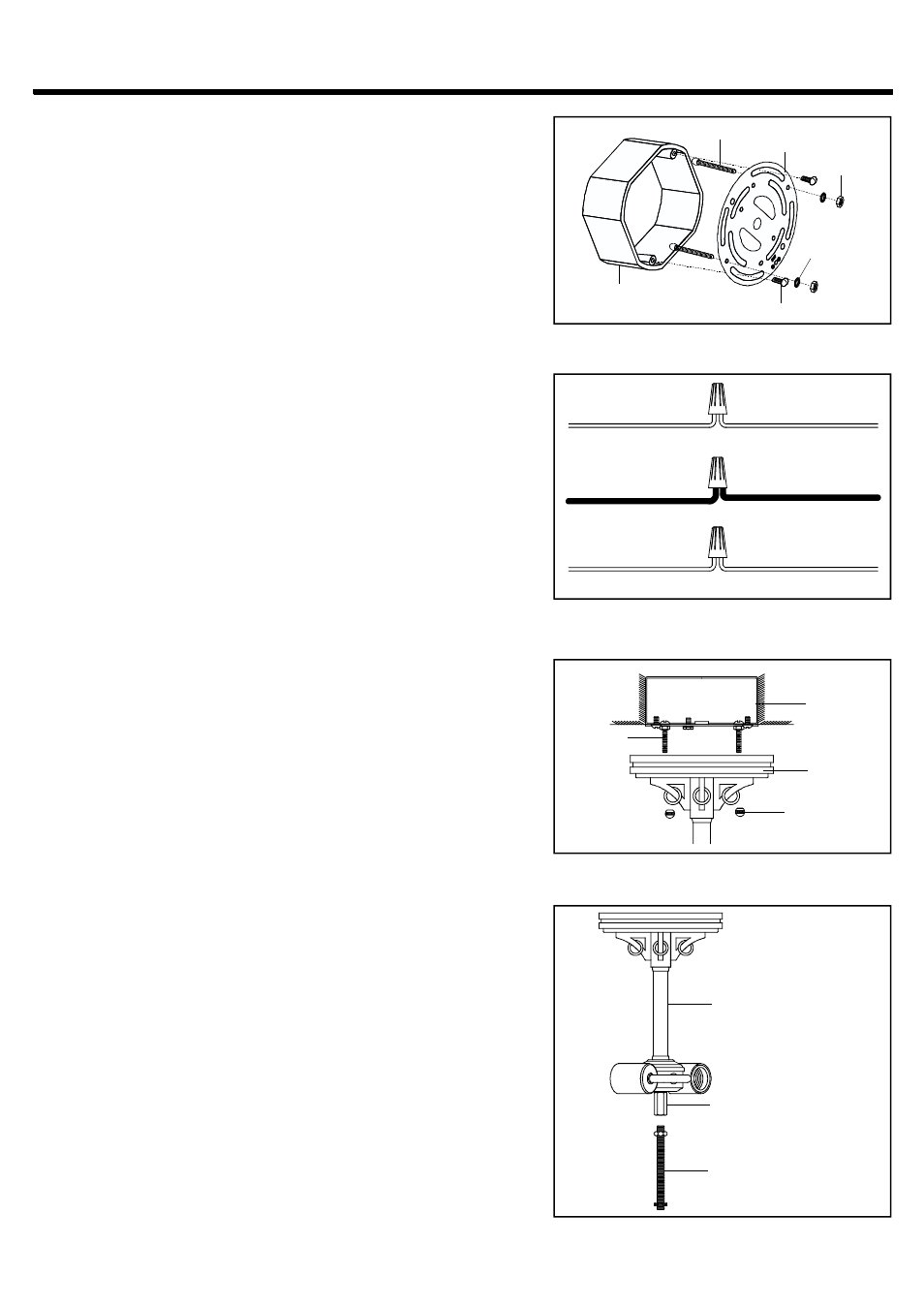

STEP 1:
a Screw the Mounting Screws into the Crossbar place the
Lock Washers over the Mounting Screws and thread the
Hex Nuts onto the Mounting Screws as shown
Secure the
position of the Mounting Screws by tightening the Hex Nuts
against the Crossbar
b Secure the Crossbar to the Outlet Box with Outlet Box
Screws
. ,
.
.
.
.
Outlet Box
Crossbar
Mounting Screw
Hex Nut
Outlet Box Screw
Lock Washer
WHITE OR RIBBED
BLACK OR RED WIRE ( )
FROM HOUSE
GROUND WIRE GROUND WIRE
FROM HOUSE FROM FIXTURE
WHITE OR RIBBED
FROM FIXTURE FROM HOUSE
FROM FIXTURE
BLACK OR SMOOTH
STEP 2 :
* ( )
.
.
. ( )
( )
. ( )
( ).
.
.
Use Wire Connectors not supplied to connect the
wires
a Connect the House Ground Wire to the Fixture Ground
Wire.
b Connect the House White or Ribbed Wire to the
Fixture Supply Wire White or Ribbed Side .
c Connect the House Black or Red Wire to the Fixture
Supply Wire Black or Smooth Side
d Wrap each connection with approved electrical tape and
carefully stuff all of the connected wires into the Outlet
Box
Mounting
Screw
Ceiling
Canopy
STEP 3 :
.
a Place the Ceiling Canopy onto Outlet Box aligning 2
holes in the Ceiling Canopy with 2 Mounting screws
threaded on the Crossbar and secure it against wall
with Mounting Balls
.
STEP 4 :
a Screw the hex nut end of the Nipple with Nuts into the Hex
Coupling underside of the Socket Assembly. By using
pliers, thread the hex nut against the Hex Coupling and
hand tighten until snug.
.
Outlet Box
Mounting Ball
Socket Assembly
Hex Coupling
Nipple with Nuts
STYLE NUMBER TF885SVB :
