Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
2011 QuoizelInc.
5of5
September2011
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
, .
. .

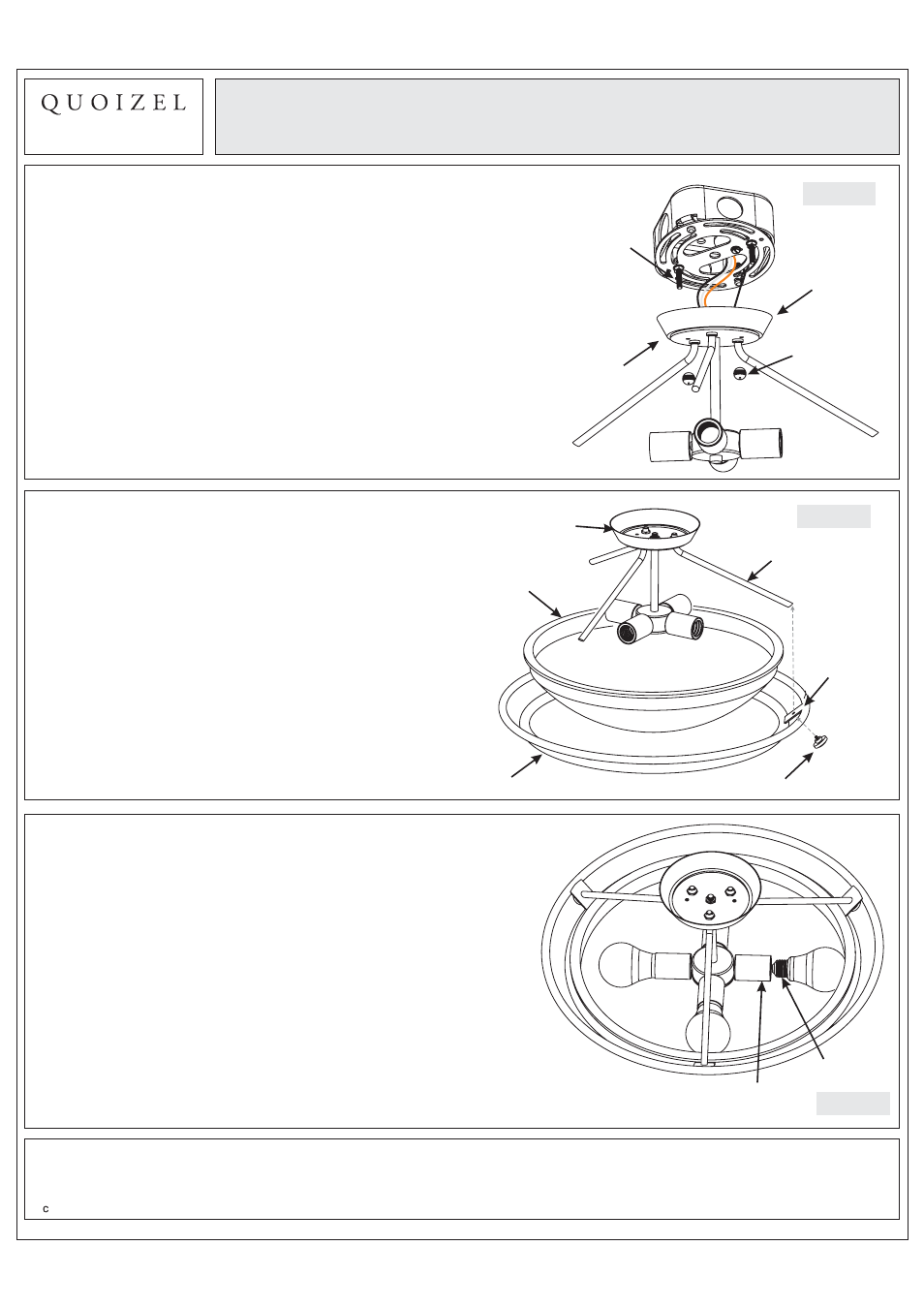

Assembly Instruction Sheet #IS-QF1201SWT
For Style QF1201SWT
Figure 9
STEP 8 Install Bulb
-
A. This fixture uses standard bulb with a standard screw base.
Maximum 100 watts.
B. Insert bulb and screw properly into place.
Your lamp semi-flush fixture is now assembled and ready to
use. Enjoy!
Bulb
Socket
STEP 7 Attach Shade to Fixture Body
-
A. Place Shade(H) inside Shade Holder(I).
B. Lift the Shade Holder (I) with shade (H) upward and
align rings of the Shade Holder (I) with the ends of the
Side Arms of the Socket Assembly (G).
C. Pass Lock Screws (F) through Tab of the Shade Holder
(I) and thread into Side Arm of the Fixture Body (A).
Hand tighten until snug
.
Figure 8
Side Arm
Shade
Shade Holder
Lock Screw
Tab
Fixture Body
STEP 6
- Attach Ceiling Canopy to Mounting
Screw
A. Place the Ceiling Canopy on the Socket Assembly (G)
over the Mounting Screws (B) and secure with Mounting
Balls (E). Hand tighten until snug.
Mounting Screw
Mounting
Ball
Socket Assembly
Figure 7
Ceiling Canopy
