Tools Required: Flathead screwdriver, Phillips screwdriver, pliers, wire cutters, wire strippers, electrical tape,
safety glasses.
Estimated Assembly Time: 30-45 minutes
Preparation: Identify and inspect all parts before beginning installation. Check package content list and diagrams
below to be sure all parts are present. If any parts are missing or damaged, do not attempt to assemble, install, or
operate the fixture. Contact customer service for replacement parts.
Warnings and Cautions
1of2

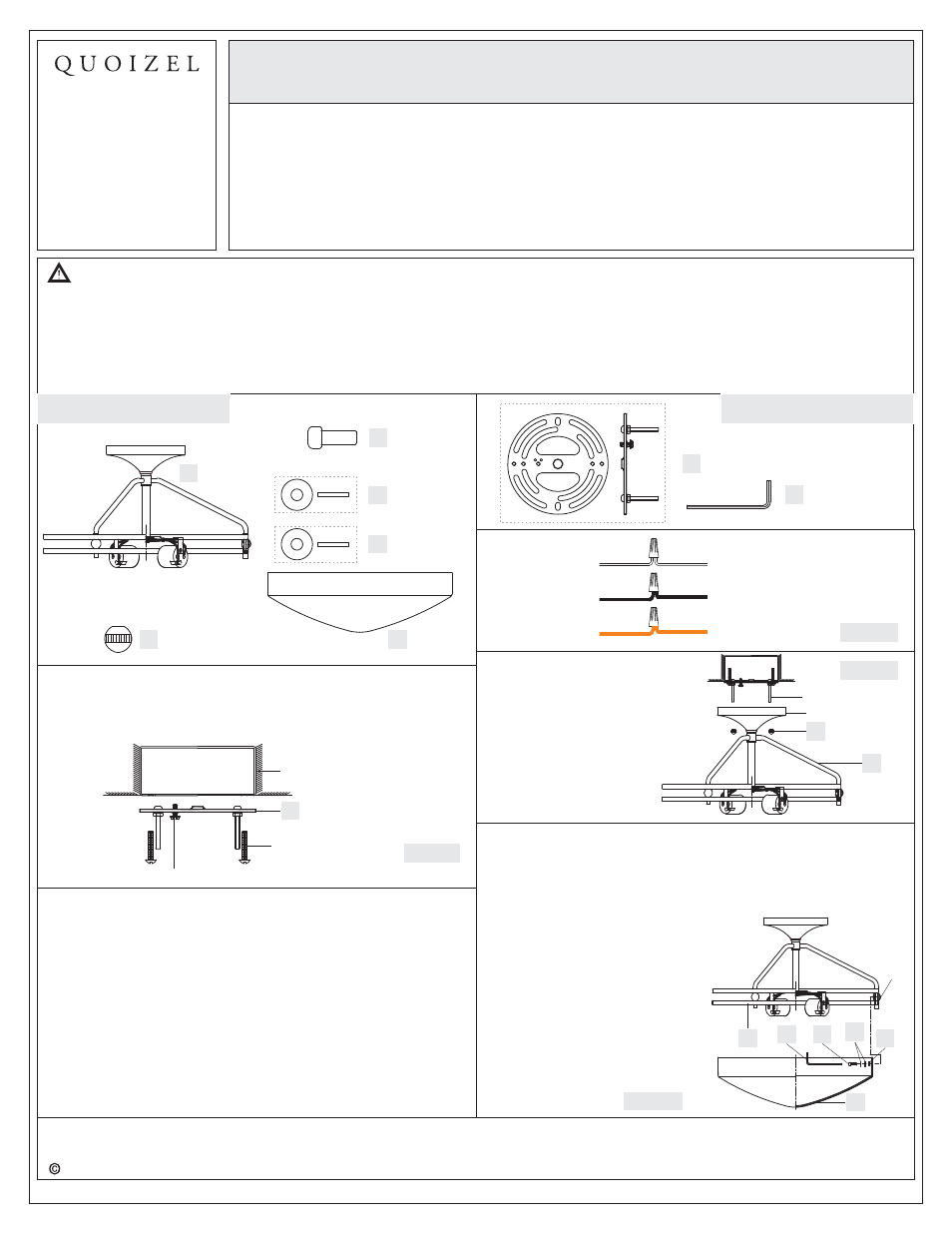

Assembly Instruction Sheet #IS-OZ1713
For Styles OZ1713PN, C and I OZ1713 OZ1713 N
Bulb Recommended: (2) Medium Base 100W Maximum, Alternate bulb (2) 23W CFL
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
, .
. .
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
2014 QuoizelInc. March2014
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal. Do not subject
glass parts to any shock while in operation or shattering may result.
Package Contents
A
B
Fixture Body
x 1
Lock Ball
x 2
STEP 1 Install Crossbar -
. .
A. Attach the Crossbar Assembly (AA) to the Outlet Box with the head
of the Green Ground Screw facing you. Secure it with Outlet Box
Screws (not included)
Tighten until snug
Figure 1
Outlet Box
Outlet Box Screw
(not included)
Green Ground Screw
AA
Hardware Contents
AA
Crossbar Assembly
x 1
GND
2.4mm
13Ga
QUOIZEL R
White wire
from supply
Ribbed side wire
from fixture
Black wire from
supply (or Red) Smooth side wire
from fixture
Ground wire
from supply
Ground wire
from fixture
Figure 2
STEP 2 - Wire Connections
A. Use standard wire connectors (not included) to make all wire
connections. (Connectors are not included with fixture.) Strip and
prepare wire ends according to instructions supplied with
connectors.
B. Connect White Supply Wire from the Outlet Box to Ribbed side
Wire from fixture.
C. Connect Black (or Red) Supply Wire from the Outlet Box to Smooth
side Wire from fixture.
D. Connect Ground Wire from the Outlet Box to Ground Wire from
fixture.
E. Twist connectors until wires are tightly joined together.
F. Wrap each connection with approved electrical tape and carefully
stuff all the connected wires into the Outlet Box.
STEP 3 Attach Fixture Body to
Mounting Screw
-
A. Place the Ceiling Canopy of the
Fixture Body (A) over the
Mounting Screws and secure
with Lock Ball (B). Hand tighten
until snug.
Figure 3
B
Mounting Screw
Ceiling Canopy
A
C
Allen Bolt
x 3
D
Rubber
Washer
x 3
F
Shade
x 1
BB
Allen Wrench
x 1
E
Flat Washer
x 6
STEP 4 Install Shade -
A. Place the Rubber Washer (D) and Flat Washers (E) over the Allen
Bolt (C).
B. Place the Shade (F) into the shade holder, line up the holes on the
side of the Shade (F) and the mounting holes on the Ball. Pass the
Figure 4 F
A
BB C
Ball
D
E
Allen Bolts (C) with washers
(D/E) through the holes on the
Shade (F), thread into the
mounting holes on the Balls by
using the Allen Wrench (BB).
Please make sure that the Allen
Bolts (C) don’t penetrate
opening of the Ball, this will allow
the support arms to pass through
the Ball to attach the Shade (F)
to the Fixture Body (A).
