Quoizel MQ1720HL Marquette User Manual
Quoizel Lighting

DECORATION
ARM
SOCKET
CLUSTER
HEX COUPLING
CENTER STEM
HEX NUT
PLAIN WASHER
HANGER
CRYSTAL
SHADE
SHADE STOP
HEX NUT
CAP
SCROLLED PART
SMALL TUBE
FINIAL
CRYSTAL
ASSEMBLY / INSTALLATION INSTRUCTIONS

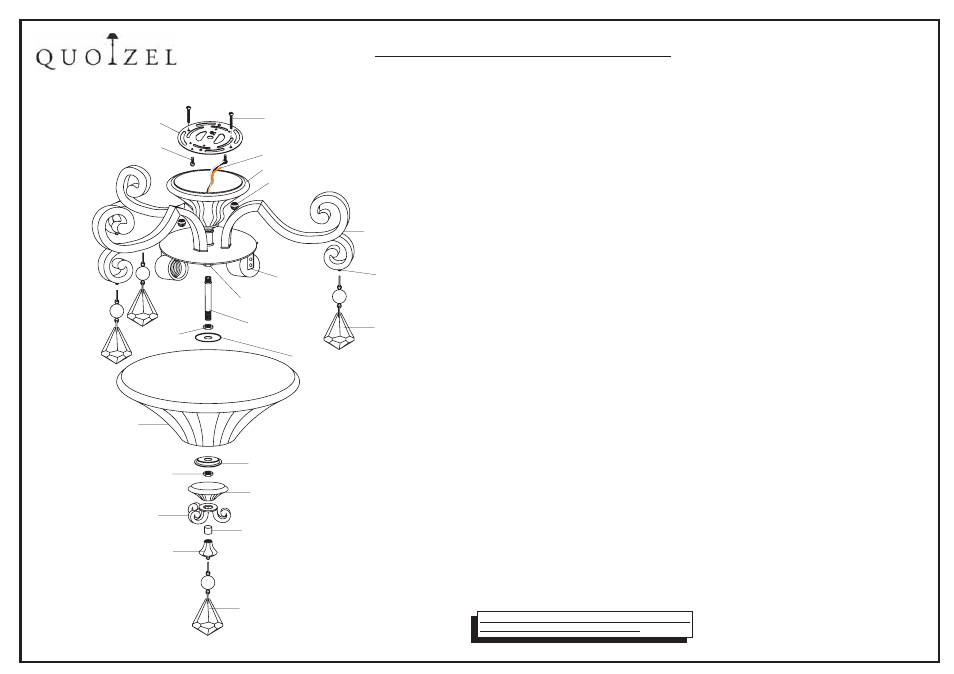

1 Before beginning the installation carefully unpack and identify all parts referring
to the illustration
2 Turn the electrical power to installation point OFF at circuit breaker
3 Unfold DECORATION ARMS to proper locations
4 Locate the 2 MOUNTING SCREWS and thread them into the back of the
UNIVERSAL CROSSBAR making sure that they match the holes in the FIXTURE
CANOPY Using 2 OUTLET BOX SCREWS not supplied
fasten the
UNIVERSAL CROSSBAR to the OUTLET BOX
5
Using wire connectors not supplied connect the
HOUSE GROUND WIRE to the FIXTURE GROUND WIRE connect the HOUSE
WHITE WIRE to the FIXTURE SUPPLY WIRE WHITE or RIBBED SIDE
connect the HOUSE BLACK or RED WIRE to the FIXTURE SUPPLY WIRE
BLACK or SMOOTH SIDE
Wrap each connection with approved electrical tape
6 Carefully tuck all of the wiring up into the outlet box and fit the FIXTURE
CANOPY over the MOUNTING SCREWS
Secure the FIXTURE CANOPY to the
ceiling with the 2 MOUNTING BALLS making sure that the balls are fully
threaded onto the MOUNTING SCREWS before tightening
7. Thread the beaded end of the CENTER STEM into the HEX COUPLING underside of
the SOCKET CLUSTER. Hand tighten until snug. Proceed to thread one HEX NUT
onto the end of the CENTER STEM and adjust it to proper location to make sure
there is enough length left for the rest components.
8
Restore power to installation point ON Retain this sheet for future reference
.
,
,
.
.
.
( )
,
.
( )
(
),
.
.
.
,
.
( )
,
.
.
.
.
.
.
.
.
:
(
)
;
(
);
(
)
(
).
.
Making the wire connections
Install the correct bulbs referring to fixture markings and or labels for maximum
wattage
9. Place the PLAIN WASHER, the SHADE and the SHADE STOP over the end of the
CENTER STEM in turn. Secure them together with the HEX NUT. Proceed to locate
the CAP, the SCROLLED PART and the SMALL TUBE over end of the CENTER STEM.
Thread the FINIAL onto the end of the CENTER STEM and hand tighten until snug to
secure them.
10. Hang the CRYSTALS onto the FINIAL and the end of the DECORATIVE ARMS.
11
/
.
IF IN DOUBT ABOUT ELECTRICAL INSTALLATION,
CONSULT A LICENSED ELECTRICIAN!
IS-MQ1720
Revised 2007-05-04
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
,
.
.
.
(2)MOUNTING SCREWS
UNIVERSAL CROSSBAR
(2)OUTLET BOX SCREWS
(not supplied)
SUPPLY WIRES and GROUND WIRE
FIXTURE CANOPY
(2)MOUNTING BALLS
