Quoizel TFIK1714VA Inglenook User Manual
Quoizel Lighting

SUPPLY WIRE and
GROUND WIRE
UNIVERSAL CROSSBAR
( )
2 MOUNTING SCREWS
( )
(
)
2 OUTLET BOX
SCREWS
not supplied
FIXTURE CANOPY
( )
2 MOUNTING BALLS
SOCKET
HEX COUPLING
SPACER TUBE
CHECK RING
NIPPLE with KNURLED
NUT and HEX NUT
PLAIN WASHER
SHADE
FINIAL
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
,
.
.
.
ASSEMBLY / INSTALLATION INSTRUCTIONS
IF IN DOUBT ABOUT ELECTRICAL INSTALLATION,
CONSULT A LICENSED ELECTRICIAN!
IS TFIK1714
Revised 2009-03-06
-

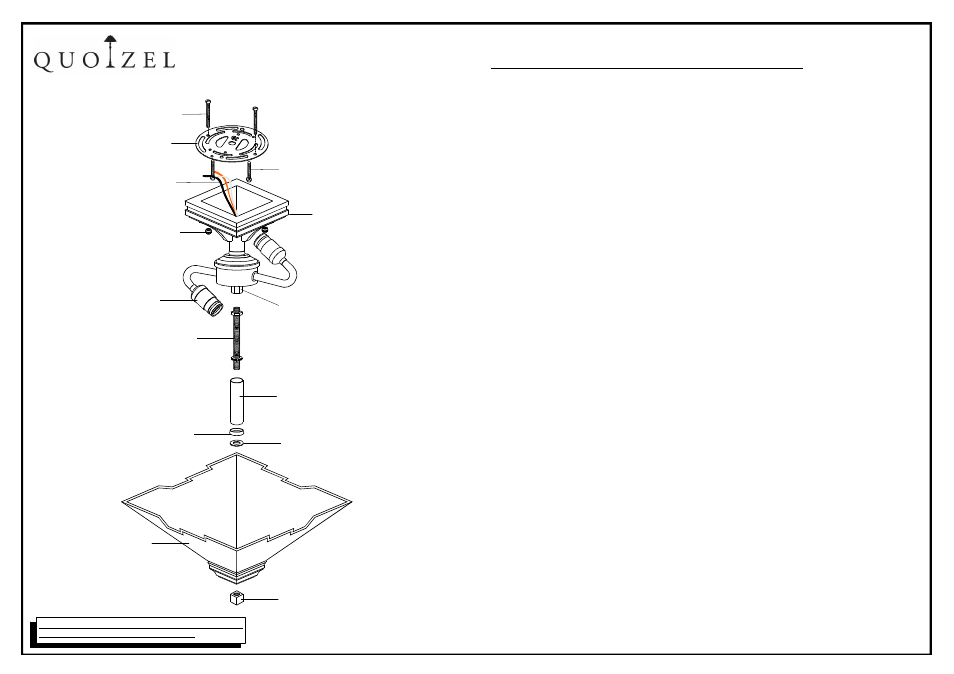

1 Before beginning the installation
carefully unpack and identify all parts
referring to
the illustration
2 Turn the electrical power to installation point OFF at circuit breaker
3 Remove KNURLED NUT from the NIPPLE and thread the HEX NUT end of the NIPPLE
into the HEX COUPLING underside of the JUNCTION BOX
Using plier, thread HEX
NUT against the HEX COUPLING and hand tighten until snug. Proceed to pass the
SPACER TUBE and the CHECK RING over the end of the NIPPLE
Secure with the
KNURLED NUT and hand tighten until snug
4 Locate the PLAIN WASHER and SHADE over the end of the NIPPLE and secure with
the FINIAL. Hand tighten until snug
5 Locate the
2 MOUNTING SCREWS and thread them into the back of the
UNIVERSAL CROSSBAR
making sure that they match the holes in the FIXTURE
CANOPY
Using
2 OUTLET BOX SCREWS not supplied
fasten the UNIVERSAL
CROSSBAR to the OUTLET BOX
6
Using wire connectors not supplied
connect the
HOUSE GROUND WIRE to the FIXTURE GROUND WIRE
connect the HOUSE
WHITE WIRE to the FIXTURE SUPPLY WIRE
WHITE or RIBBED SIDE
connect
the HOUSE BLACK
or RED
WIRE to the FIXTURE SUPPLY WIRE
BLACK or
SMOOTH SIDE
Wrap each connection with approved electrical tape
7 Carefully tuck all of the wiring up into the outlet box
and fit the FIXTURE CANOPY
over the MOUNTING SCREWS
Secure the FIXTURE CANOPY to the ceiling with
the 2 MOUNTING BALLS
making sure that the balls are fully threaded onto the
MOUNTING SCREWS before tightening
8 Install bulbs referring to fixture markings and or labels for maximum wattage
9 Restore power to installation point ON
Retain this sheet for future reference
.
,
,
.
.
.
.
( )
,
.
( )
(
),
.
.
.
,
.
( )
,
.
.
.
.
.
.
.
.
.
.
.
(
)
;
(
);
(
)
(
).
.
/
.
MAKING THE CONNECTIONS:
