Quoizel TF1804SVB Tiffany User Manual
Warnings and cautions, Package contents, Care of tiffany style shade

Quoizel, Inc.
6 Corporate Parkway
Goose Creek, SC 29445
Customer Service
Phone 631.273.2700
Fax
631.231.7102
www.quoizel.com
Tools Required: Flathead screwdriver, Phillips screwdriver, pliers, wire cutters, wire strippers, electrical tape,
safety glasses.
Estimated Assembly Time: 20-30 minutes
Preparation: Identify and inspect all parts before beginning installation. Check package content list and diagrams
below to be sure all parts are present. If any parts are missing or damaged, do not attempt to assemble, install, or
operate the fixture. Contact customer service for replacement parts.
Warnings and Cautions
1of2

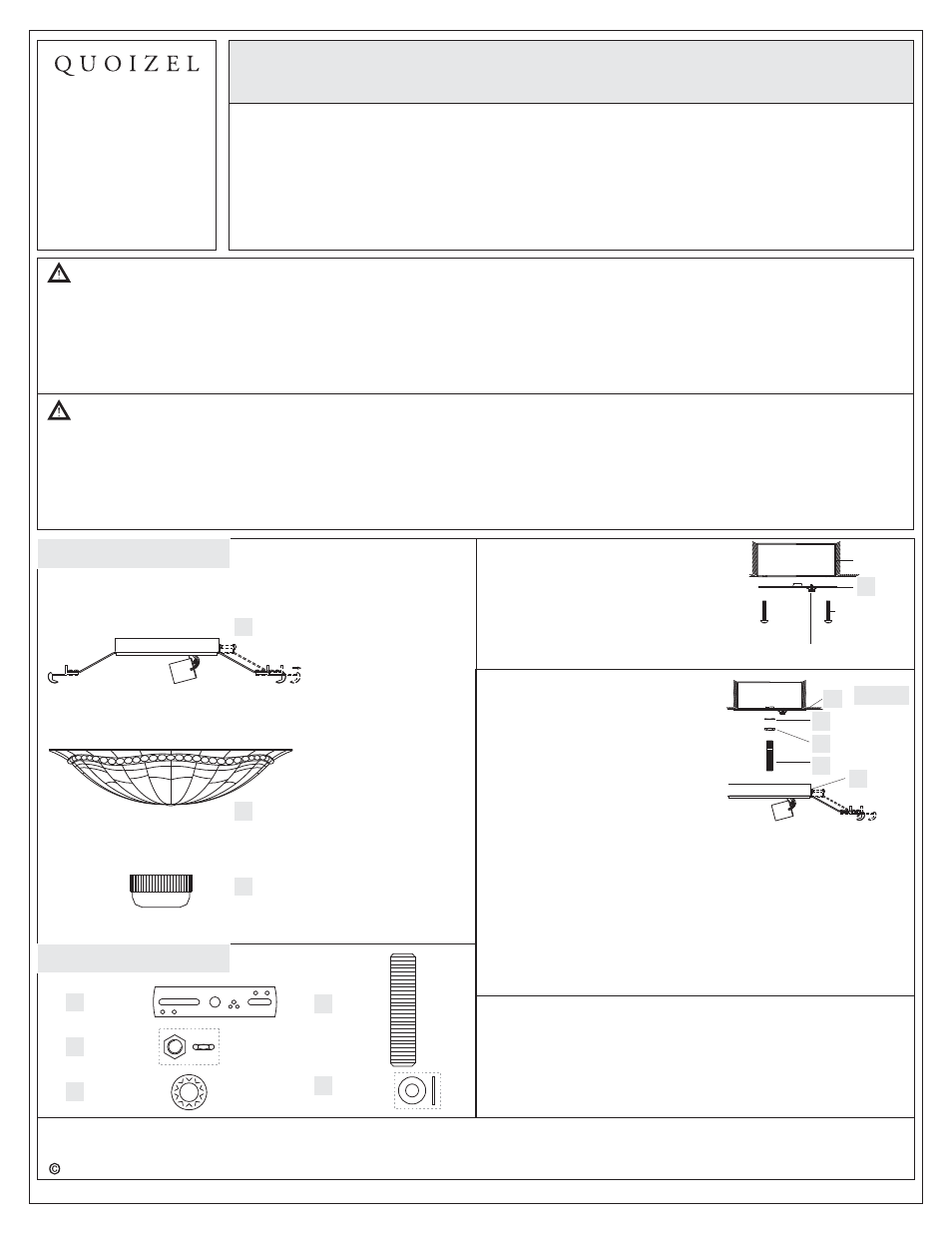

Assembly Instruction Sheet #IS-TF1804SVB
For Style TF1804SVB
Bulb Recommended: (2) Medium Base 75W Maximum, Alternate bulb (2) 19W CFL
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
,
.
.
.
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
2014 QuoizelInc.
April2014
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal. Do not subject
glass parts to any shock while in operation or shattering may result.
Package Contents
A
Ceiling
Canopy
x 1
Care of Tiffany Style Shade
A new tiffany lamp shade has an oil film applied to the shade that protects the tiffany shade from scratches during shipment. If the oil applied is
too heavy you can remove the excess oil film with a paper towel. Gently wipe away the excess oil.
For general cleaning of tiffany shades use a gentle lemon oil-based furniture polish applied to a soft cloth and wipe gently.
If a white powder appears on the soldered joints of the tiffany shade this is a normal oxidation process. Use a small amount of lemon oil or
mineral oil applied directly to oxidized areas and the soldered area will return to like new.
B
Shade
x 1
C
Finial
x 1
Hardware Contents
AA
DD
BB
CC
Crossbar
x 1
Nipple
x 1
Hex Nut
x 1
Lock Washer
x 1
GND
2.4 m m 13 Ga
QUIOZEL
EE
Flat
Washer
x 1
A
STEP 1
Install Crossbar
-
.
.
A. Attach the Crossbar (AA) to the
Outlet Box with the head of the Green
Ground Screw facing you. Secure it
with Outlet Box Screws (not included)
Tighten until snug
STEP 2
Attach Nipple to Crossbar
-
A. Locate the Nipple (DD) and thread
one Hex Nut (BB) onto it about half
way. Slip a Lock Washer (CC) onto it
and thread one end of the Nipple
(DD) into the center hole of the
Crossbar (AA).
B. Position the Ceiling Canopy (A) over
the outlet box, passing the mounting
hole in the center of the Ceiling
Canopy (A) over the end of Nipple
(DD).
C. Adjust the Nipple (DD) so approx 3/8
inch of the Nipple (DD) is protruding
from the mounting hole. This
adjustment may take a few tries.
D. When this length is achieved,
remove the Ceiling Canopy (A) and
tighten the Hex Nut (BB) up against
the underside of the Crossbar (AA)
with pliers.
STEP 3 - Wire Connections
A. Use standard wire connectors (not included) to make all wire
connections. (Connectors are not included with fixture.) Strip and
prepare wire ends according to instructions supplied with
connectors.
B. Connect White Supply Wire from the Outlet Box to Ribbed side Wire
from fixture.
Figure 2
Outlet
Box
Outlet Box
Screw
Green Ground Screw
AA
AA
CC
BB
DD
